Quick Details
-
Core Components:
-
Stainless Steel Tank, Manhole, Spare parts
-
Marketing Type:
-
Hot Sale 2023
-
Product Name:
-
Cider Making machine
-
Application:
-
Cider, olive oil, Wine
-
Material:
-
SS316L/SS304
-
Keywords:
-
Cider Fermentation tank
-
Cooling way:
-
Dimple Plate Cooling
-
Capacity:
-
500L-20,000L
-
Thickness:
-
3mm
-
Usage:
-
Storage/Fermenter
-
Finish:
-
inside 2B, outside brushed
-
After-sales Service Provided:
-
Provided
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Precise
-
Weight:
-
900 KG
-
Core Components:
-
Stainless Steel Tank, Manhole, Spare parts
-
Marketing Type:
-
Hot Sale 2023
-
Product Name:
-
Cider Making machine
-
Application:
-
Cider, olive oil, Wine
-
Material:
-
SS316L/SS304
-
Keywords:
-
Cider Fermentation tank
-
Cooling way:
-
Dimple Plate Cooling
-
Capacity:
-
500L-20,000L
-
Thickness:
-
3mm
-
Usage:
-
Storage/Fermenter
-
Finish:
-
inside 2B, outside brushed
-
After-sales Service Provided:
-
Provided
Products Description

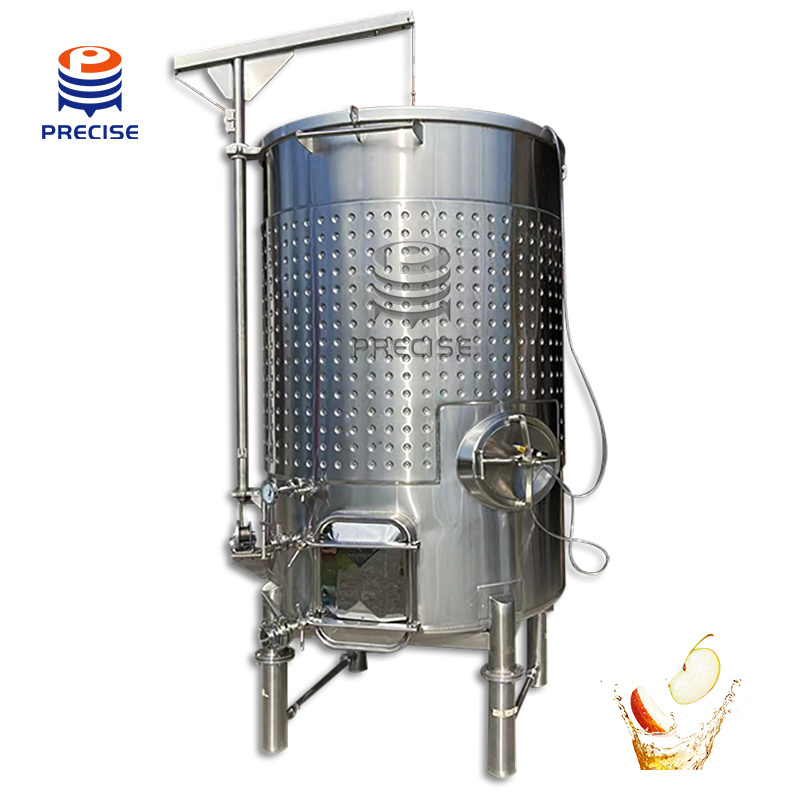

Stainless Steel Variable Capacity Cider Making Machine
Customized size is available according to your requirement
Application: Wine, Juice, Spirit, Olive oil, Cider and so on
We also can offer Bright Tank for Cider making.
Slope bottom provides an easy discharge of liquid. The large rectangular manhole makes the emptying and cleaning of tank interior easily and simply.
Product Paramenters
Features:
*
Material: SS304 /SS316
*
Surface: Inner 2B, outside brushed oil, all welds are passivated and polished; inside welds are ground. Polished is optional
*
Good choice for small wineries or growing wineries
*
Widely used for wine, cider, olive oil and so on.
*
Multi-purpose tank for fermenting and storage
*
Inflatable gasket achieves an air-tight seal, preventing accidental oxygen
*
Customization is available.
*Structure：Floating lid /Cylinder body/Slope or Conical bottom/Side cooling jacket/Adjustable legs
|
*Configuration:
|
|
|
||
|
●Lifting Arm
|
●Floating lid
|
●Bottom square manhole
|
||
|
●Side oval door
|
●Breathe valve
|
●Sample valve
|
||
|
●Thermometer
|
●PT100 sensor port
|
●Racking valve
|
||
|
●Drain out valve
|
●Ladder support
|
●Lifting lugs
|
||
|
●Glycol jacket inlet & outlet
|
|
|
||
|
Model
|
Volume(L)
|
Inner dia. (mm)
|
Total height (mm)
|
Shell height (mm)
|
Legs height (mm)
|
Cooling area(H)
|
|
PVCT1.0
|
1000
|
1000
|
2280
|
1500
|
400
|
700
|
|
PVCT 1.5
|
1500
|
1200
|
2500
|
1500
|
400
|
700
|
|
PVCT 2.0
|
2000
|
1300
|
2600
|
1610
|
400
|
700
|
|
PVCT 2.5
|
2500
|
1400
|
2700
|
1720
|
400
|
700
|
|
PVCT 3.0
|
3000
|
1500
|
3000
|
1830
|
500
|
1000
|
|
PVCT 3.5
|
3500
|
1500
|
3400
|
2220
|
500
|
1000
|
|
PVCT 4.0
|
4000
|
1600
|
3700
|
2220
|
750
|
1000
|
|
PVCT4.5
|
4500
|
1700
|
3700
|
2000
|
750
|
1000
|
|
PVCT 5.0
|
5000
|
1800
|
3900
|
2220
|
750
|
1000
|
|
PVCT 6.0
|
6000
|
1800
|
4100
|
2440
|
750
|
1500
|
|
PVCT 7.0
|
7000
|
2100
|
3800
|
2220
|
750
|
1000
|
|
PVCT 8.0
|
8000
|
1800
|
4100
|
3000
|
750
|
1500
|
|
PVCT 9.0
|
9000
|
2100
|
4050
|
2720
|
750
|
1500
|
|
PVCT 10
|
10000
|
2100
|
4450
|
3000
|
750
|
1500
|
