Quick Details
-
Brand Name:
-
wd
-
Power (kW):
-
1.5kw
-
Weight (KG):
-
750 KG
-
Product name:
-
Automatic Wire Nail Making Machine
-
Function:
-
Making different kinds nails
-
Raw material:
-
Iron Wire
-
Speed:
-
220-450pc/min
-
Diameter of Nail:
-
0.9-6mm
-
Length of nail:
-
9-180mm
-
Nail type:
-
Round Steel Nails
-
Machine color:
-
can be customized
-
Operation type:
-
Automatic
-
Operator:
-
1
Quick Details
-
Production Capacity:
-
500sets per month
-
Marketing Type:
-
classic model
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wd
-
Power (kW):
-
1.5kw
-
Weight (KG):
-
750 KG
-
Product name:
-
Automatic Wire Nail Making Machine
-
Function:
-
Making different kinds nails
-
Raw material:
-
Iron Wire
-
Speed:
-
220-450pc/min
-
Diameter of Nail:
-
0.9-6mm
-
Length of nail:
-
9-180mm
-
Nail type:
-
Round Steel Nails
-
Machine color:
-
can be customized
-
Operation type:
-
Automatic
-
Operator:
-
1
Product Description
Z94 series fully automatic concrete nail making machines makers cement nail machine manufacturer
:
|
Item
|
Z94-1c
|
Z94-2c
|
Z94-3c
|
Z94-4c
|
Z94-5c
|
Z94-6A
|
|
Max.diameter mm
|
1.6
|
2.8
|
3.4
|
4.5
|
5.5
|
6.0
|
|
Min.diameter mm
|
0.9
|
1.2
|
1.8
|
2.8
|
4.1
|
4.1
|
|
Max.length mm
|
25
|
50
|
75
|
100
|
150
|
180
|
|
Min.length mm
|
9
|
16
|
25
|
50
|
100
|
100
|
|
Max.output pcs/min
|
450
|
300
|
280
|
260
|
220
|
220
|
|
Motor power kw
|
1.5
|
2.2
|
3
|
4
|
5.5
|
11
|
|
Weight kgs
|
750
|
950
|
1200
|
1900
|
2500
|
6000
|

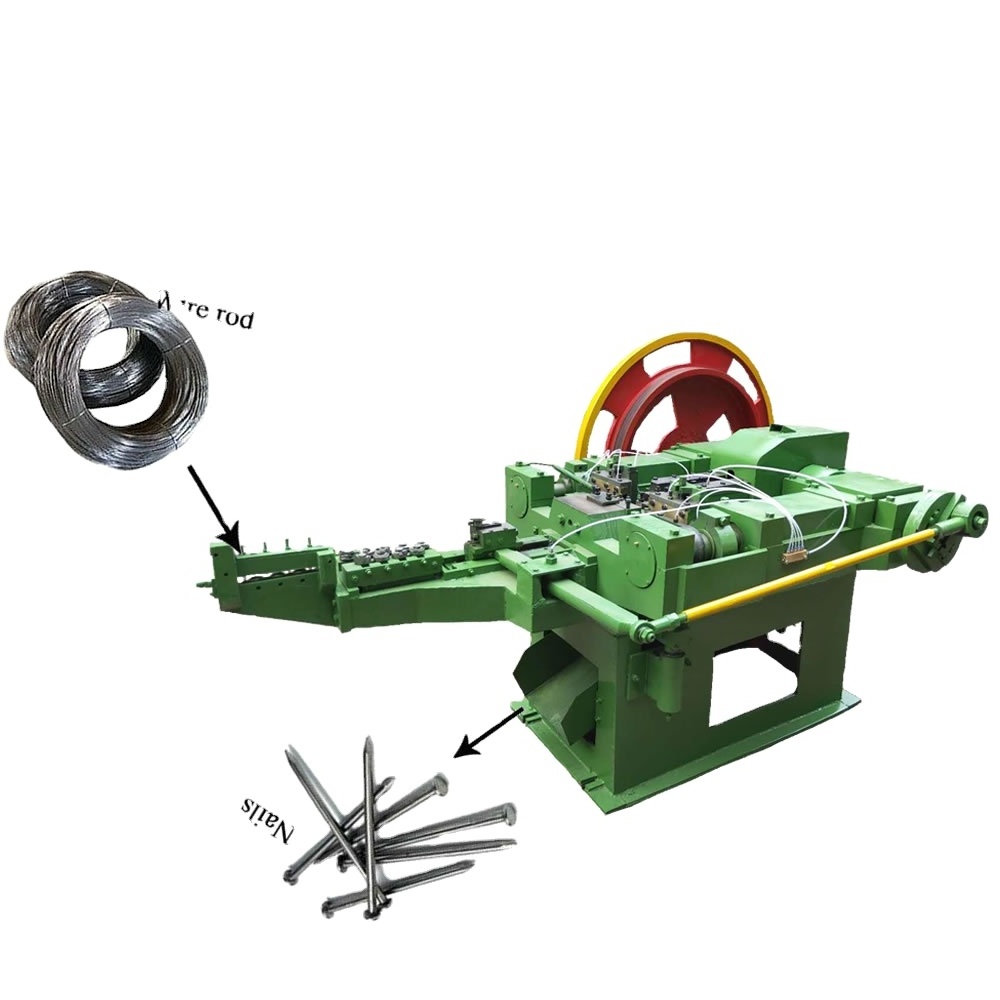

1. draw 6.5mm thick wire(iron wire,steel wire,stainless steel wire ) to 1-5mm depending on your requirement .different wire diameter ,different mould just One machine line.
If your wire rod diameter is fit, then no need wire draw machine directly use on nail making machine is ok.
2.nail making machine produce nails by process finished wire.
3.blank nails be polished by polishing machine,make it nice looking,if your side no this requirement, then no need this polish machine
nail head type
:1. flat circle head, 2.double head 3.diamond head 4.spring head
nail shank type
:1.smooth shank 2. ring shank 3.screw shank
nail point type
: 1.diamond point 2.diamond point offset 3.round point
Product Details
Z94 series fully automatic concrete nail making machines makers cement nail machine manufacturer
features:
1. Easy operation, saving labor: just one step is feeding wire into the machine, one worker can operate the whole plant at the same time.
2. Low noise: this type wire iron nail making machine running cannot impact common life.
3. High speed: it can up to your capacity demands.
4. Small space: one room can the whole production line.
5. The main structure made by good quality steel, machine's life time can to 8-10 years.
6.Working continuously: this machine can work 24 hours continuously per day.
Packing & Delivery
Z94 series fully automatic concrete nail making machines makers cement nail machine manufacturer
delivery
1)Normal use qingdao port, also can according to your demands
2)Packing by plywood case
FAQ
Z94 series fully automatic concrete nail making machines makers cement nail machine manufacturer
Q1. My place is 220v,60hz,if your machine fit?
A1: yes dear,normal our machine is 380v,50hz, also can customize according to your demands
Q2. Can you provide OEM service ?
A2: Yes, most ofmachine need to be customized as detailed request
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name
forcompetitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if
parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Zhengzhou Station (by fast train 2 hour).
2) Shanghai Hongqiao to Zhengzhou Station (4.5 hours)
3) Guangzhou Airport to Zhengzhou( 2 hours)
