Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-HMTG12S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
smart managed switch 10G SFP+ manageably switch
-
SFP Ports:
-
12*10G SFP+
-
Managed port:
-
1*Console port
-
Packet Buffer Memory:
-
178.56Mpps
-
DDR SDRAM:
-
128MByte
-
VLANs:
-
4096
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
Dimensions (W x D x H):
-
440mm*205mm*44mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
3 years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
240Gbps
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-HMTG12S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
smart managed switch 10G SFP+ manageably switch
-
SFP Ports:
-
12*10G SFP+
-
Managed port:
-
1*Console port
-
Packet Buffer Memory:
-
178.56Mpps
-
DDR SDRAM:
-
128MByte
-
VLANs:
-
4096
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
Dimensions (W x D x H):
-
440mm*205mm*44mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
3 years
Product Description

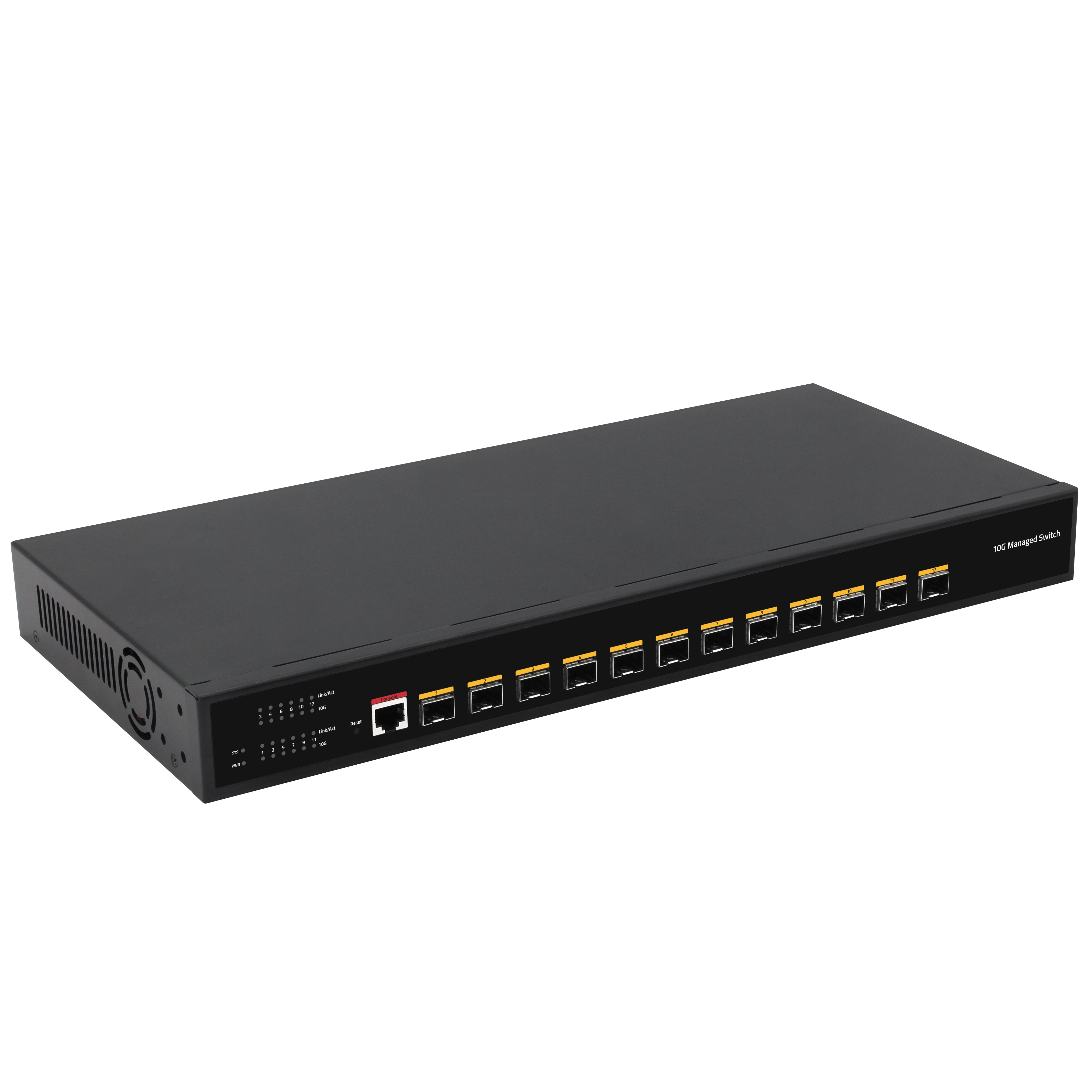

Sunsoont Layer 3 standard 12 ports smart managed switch 10G SFP+ manageably switch
Sunsoont
12 Port 10G L3 Management Ethernet Switch, support 12* SFP+ ports, 1* RJ45 console port. Perfect security control strategy and CPU protect policy, improve product fault tolerance, ensure stable network operation and link load balancing; the device supports automatic DoS attack prevention, SNMP, IEEE 802.1q, spanning tree, rapid generation tree protocol, link aggregation and other functions. Advanced security features and advanced Quality of Service (QoS), can be used as a core, distribution or access layer switch, with high port density, easy to manage, it is an ideal choice for a variety of commercial network applications.
Feature
* Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;
* L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2;
* Support STP/RSTP/MSTP（ ERPS), loop detection and self-healing, support remote loop back monitoring and control （802.3ah OAM）;
* Support multiple VLAN division, mac VLAN, Protocol VLAN, Private VLAN;
* Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
* Support IPV4/IPV6.RIPv1/v2 OSPF
* L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2;
* Support STP/RSTP/MSTP（ ERPS), loop detection and self-healing, support remote loop back monitoring and control （802.3ah OAM）;
* Support multiple VLAN division, mac VLAN, Protocol VLAN, Private VLAN;
* Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
* Support IPV4/IPV6.RIPv1/v2 OSPF
Details Images
System Infomation
Specification
|
Product name
|
12 ports 10G SFP+ L3 managed Fiber Switch
|
|
|
Model No.
|
SST-HMTG12S
|
|
|
Port
|
12*10G SFP ports, 1 Console port
|
|
|
Network protocol
|
IEEE802.3AF(PoE)
IEEE802.3AT(PoE+) IEEE 802.3,10Base-T IEEE 802.3u IEEE 802.3ab IEEE 802.3ae IEEE 802.3x IEEE 802.3ad IEEE 802.1ab-2005,LLDP IEEE 802.w IEEE 802.1q IEEE 802.1p,QoS/CoS IGMP Snooping DHCP Snooping /GMRP |
|
|
Network Media
|
10BASE-T: Cat3,4,5 UTP(≤100 m)
100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m) |
|
|
Optical
|
Multimode: 1310nm, 2Km
Single Mode: 1310nm, 20/40 Km 1550nm, 60/80/100/120Km |
|
|
LED
|
FX,PWR,Link/ Act,SYN
|
|
|
Power supply
|
Input: AC220V,Power:360W
|
|
|
Dimension
|
Product Dimensions: 440*205*44mm
Package Dimensions: 500*290*85mm Product N.W: 2.4KG Product G.W: 3.0KG |
|
|
Environments
|
Working Temperature:-20~55°C
Storage Temperature:-40~85°C Working humidity:90% Storage humidity:95% |
|
|
Certification
|
CE, FCC,ROHS,3C
|
|
|
MTBF
|
300,000 hours
|
|
|
Package List
|
1.Fiber Switch:1
2.User manual :1 3.Certificate:1 4.Warranty Card:1 |
|
|
Warranty
|
3 years
|
|
|
Basic characteristics
|
|
|
|
Fixed port
|
12 ports 10G SFP+ port ,
1 console port |
|
|
Bandwidth
|
240Gbps (non-blocking)
|
|
|
Packet Forwarding rate
|
178.56Mpps
|
|
|
Packet Buffer Memory
|
16M
|
|
|
Memory Capacity
|
128MB
|
|
|
16Flash Capacity
|
32MB
|
|
|
Jumbo frame
|
12Kbytes
|
|
|
VLANs
|
4096
|
|
|
MAC
|
16K
|
|
|
Forwarding Mode
|
Store-And-Forward
|
|
|
L2 Software Features
|
|
|
|
Port managment
|
Enable/Disable port
|
|
|
|
speed,duplex,MTU Setting
|
|
|
|
flow-control
|
|
|
|
Port information view
|
|
|
Port mirroring
|
Support port access direction, vlan mirror
|
|
|
Port speed limit
|
Support , speed limit by the chip
|
|
|
Port isolation
|
Support
|
|
|
Storm suppression
|
Supports unknown unicast, unknown multicast, broadcast storm suppression
|
|
|
Link aggregation
|
Supports static manual aggregation
|
|
|
|
Support LACP dynamic aggregation
|
|
|
VLAN
|
Access
|
|
|
|
Trunk
|
|
|
|
hybrid
|
|
|
|
Supports VLAN assignment based on port, protocol, MAC
|
|
|
|
Support GVRP dynamic VLAN registration
|
|
|
|
Voice VLAN
|
|
|
MAC
|
Support static add, delete
|
|
|
|
MAC address learning limit
|
|
|
|
Support for dynamic aging time settings
|
|
|
Spanning Tree
|
Support 802.1d (STP)
|
|
|
|
Support 802.1w (RSTP)
|
|
|
|
Support 802.1s (MSTP)
|
|
|
IGMP-snooping
|
Support static add, delete
|
|
|
|
Supports v1 / 2/3 dynamic multicast listening
|
|
|
L3 & Router
|
|
|
|
Interface configuration
|
Support SVI port
|
|
|
ARP
|
Support static ARP
|
|
|
|
Support setting ARP Aging time
|
|
|
VRRP
|
Supports VRRP route backup
|
|
|
ND
|
Support IPv6_ND configuration
|
|
|
Router
|
Static router
|
|
|
|
RIP(V1/V2)/ OSPF(V2) /BGP
|
|
|
|
RIP/OSPF/BGP Support route authentication function
|
|
|
|
RIP/OSPF/BGP Support route import, filter function
|
|
|
Extender function
|
|
|
|
ACL
|
Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number
|
|
|
|
Support time-range time period management
|
|
|
QOS
|
Based on 802.1p (COS) classification
|
|
|
|
Based on DSCP classification
|
|
|
|
Based on source IP, destination IP, port number classification
|
|
|
|
Support SP, WRR, DRR scheduling strategy
|
|
|
|
Support rate speed limit CAR
|
|
|
LLDP
|
Supports LLDP link discovery protocol
|
|
|
User setting
|
Add/Delete users
|
|
|
Log
|
User login, operation, status, event log
|
|
|
Anti-attack
|
DOS Defense
|
|
|
|
Support CPU protection, limit the rate of sending cpu packets
|
|
|
|
ARP Bind(IP,MAC,PORT Bind)
|
|
|
Network diagnosis
|
Support ping,telnet,trace
|
|
|
System management
|
Device reset, configuration save / restore, upgrade management, time setting, and so on
|
|
|
Management Function
|
|
|
|
CLI
|
Supports serial command line management
|
|
|
TELNET
|
Support telnet remote management
|
|
|
WEB
|
Support L2
|
|
Product Application
