Quick Details
-
Brand Name:
-
LZD
-
Model Number:
-
LZDPSW-24-2-N
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
-
RJ45 port:
-
24 10/100BaseT(x)Support SPOE transmission and data communication
-
Uplink port:
-
2 100/1000BaseT(x)RJ45,2 1000BaseT(x)SFP Support data communication
-
Network delay:
-
Maximum no more than 20 milliseconds(100 to 100Mbps)
-
Packet forwarding rate:
-
2.75M
-
Address database:
-
4K
-
Forwarding mode:
-
Store and forward
-
Input voltage:
-
AC220V Built-in power supply
-
Port output power:
-
DC24V 450W; DC48V 450W; Customizable IEEE802.3AT
-
MAC address:
-
Automatic learning
-
MTBF:
-
An average of 100,000 hours trouble-free time to work
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Half-Duplex
-
Switch Capacity:
-
8.8Gbps
-
Brand Name:
-
LZD
-
Model Number:
-
LZDPSW-24-2-N
-
Place of Origin:
-
Guangdong, China
-
Certification:
-
CE RoHS FCC
-
RJ45 port:
-
24 10/100BaseT(x)Support SPOE transmission and data communication
-
Uplink port:
-
2 100/1000BaseT(x)RJ45,2 1000BaseT(x)SFP Support data communication
-
Network delay:
-
Maximum no more than 20 milliseconds(100 to 100Mbps)
-
Packet forwarding rate:
-
2.75M
-
Address database:
-
4K
-
Forwarding mode:
-
Store and forward
-
Input voltage:
-
AC220V Built-in power supply
-
Port output power:
-
DC24V 450W; DC48V 450W; Customizable IEEE802.3AT
-
MAC address:
-
Automatic learning
-
MTBF:
-
An average of 100,000 hours trouble-free time to work

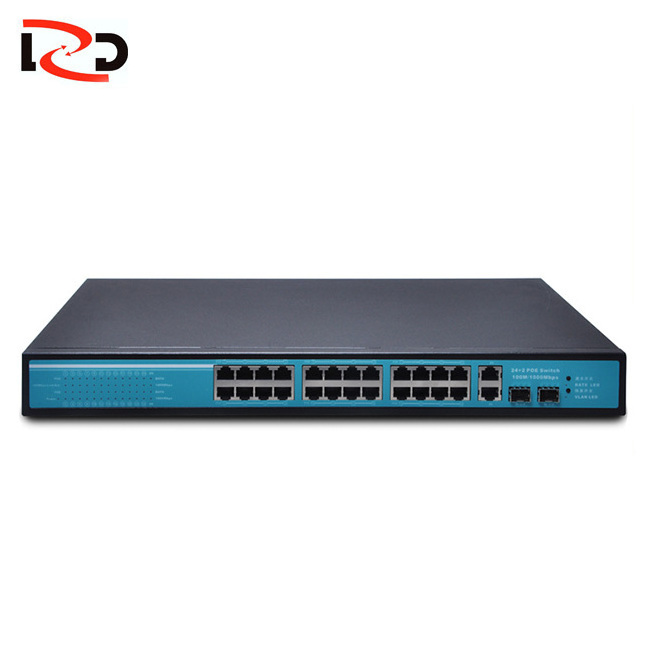

Network Equipment fast ethernet 100M 24 port POE Switches with 2 gigabit combo port
Product Description
| Technical Parameters | Non-standard | IEEE 802.3at Apply to Power-over-Ethemet |
| IEEE 802.3 Apply to 10BaseT | ||
| IEEE 802.3u Apply to 100BaseT(X) | ||
| IEEE 802.3ab Apply to 1000BaseT(X) | ||
| IEEE 802.3x flow control | ||
| Interface | RJ45 port | 24 10/100BaseT(x)Support SPOE transmission and data communication |
| Uplink port | 2 100/1000BaseT(x)RJ45,2 1000BaseT(x)SFP Support data communication | |
| SPOECorresponding to the foot | Default | V+,V+,V-,V- Corresponding to the foot 4578(Midspan)AT |
| Indicator light | LED | System Power,Link,PoE,VLAN,EXTEND |
| Button switch | Default | EXTEND OF:SPOE 100meters/ON:SPOE 160meters(DC48V 250meters ) |
| Optional way | VLAN OF:1-24Ports communicate with each other/ON:1-24The ports do not communicate with each other | |
| Network characteristics | Network transmission distance | 1-24 SPOE Extended off100meters/100M Extended open:160 meters/10M (DC48V 250meters/10M ) |
| Bandwidth | 8.8G(Non-blocking high-speed data exchange) | |
| Network delay | Maximum no more than 20 milliseconds(100 to 100Mbps) | |
| Packet forwarding rate | 2.75M | |
| Address database | 4K | |
| Forwarding mode | Store and forward | |
|
Forwarding rate |
10BASE-T:14880pps/port | |
| 100BASE-TX:148800pps/port | ||
| 1000BASE-TX:1488000pps/port | ||
| MAC address | Automatic learning | |
| Flow control | Full duplex IEEE802.3xFlow Control ; Backpressure:Half - duplex back pressure flow control | |
| Bit error rate | <1/1000000000 | |
| Power supply characteristics | Input voltage | AC220V Built-in power supply |
| Input power | DC24V 450W; DC48V 450W; Customizable IEEE802.3AT | |
| Port output power | 30W IEEE802.3AT | |
| SPOE supply the length of the power supply | DC24V 160meters/DC48V 250meters(Unshielded wire)Select the matching splitter by output voltage | |
| Mechanical properties | Shell | Iron shell,IP30 Protection class |
| Size | 440(L)×282(W)×46(H) | |
| Installation method | Desktop installation optional wall mounting | |
| Working environment | Operating temperature | Minus 40 to zero at 55 ℃ (-40 ~ + 131F) |
| Storage temperature | Minus 40 to zero at 75 ℃ (-68 ~ + 199F) | |
| Relative humidity | 5%~95%(No condensation) | |
| Trouble-free period | MTBF | An average of 100,000 hours trouble-free time to work |
