Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
jinkai
-
Model Number:
-

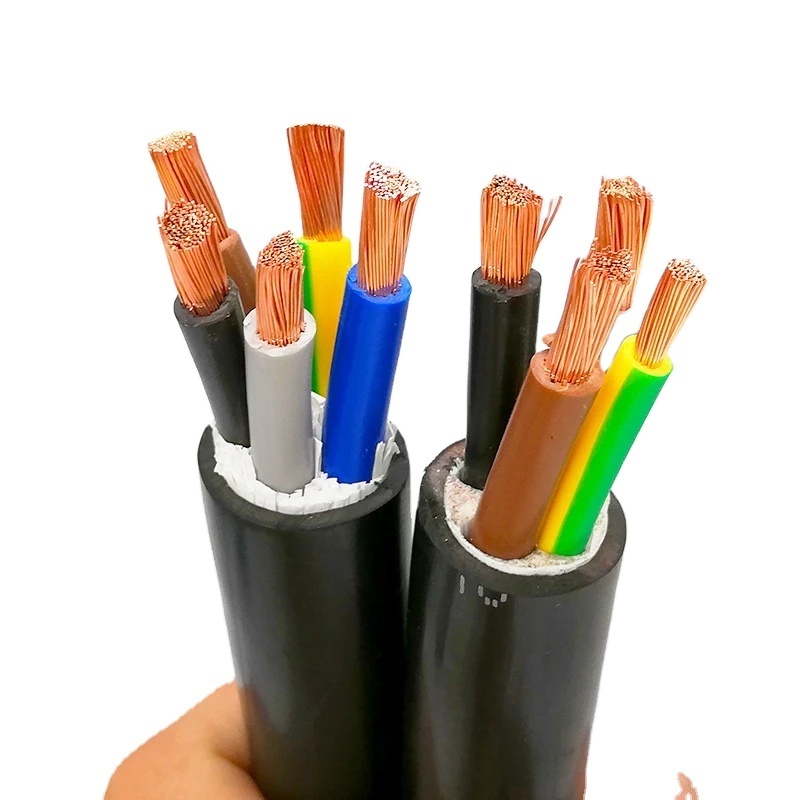

YJVR Cable
-
Product name:
-
Power Solar
-
Color:
-
Black
-
Conductor:
-
Copper
-
Rated voltage:
-
0.6/1KV,3.6/6KV,6/10KV,8.7/10KV,8.7/15KV
-
Insulation:
-
PVC
-
Sheath:
-
PVC
-
Core:
-
1-5 cores/3+1 cores/3+2 cores/4+1 cores
-
Core area:
-
2.5-185mm2
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
jinkai
-
Model Number:
-
YJVR Cable
-
Product name:
-
Power Solar
-
Color:
-
Black
-
Conductor:
-
Copper
-
Rated voltage:
-
0.6/1KV,3.6/6KV,6/10KV,8.7/10KV,8.7/15KV
-
Insulation:
-
PVC
-
Sheath:
-
PVC
-
Core:
-
1-5 cores/3+1 cores/3+2 cores/4+1 cores
-
Core area:
-
2.5-185mm2
Product Details
Our Advantages
Product Paramenters
|
Executive standards
|
Q/TK08-2012、GB/T12706-2008
|
|
Rated voltage
|
U0/U 0.6/1KV、3.6/6KV、6/10KV、8.7/10KV、8.7/15KV、
|
|
Maximum operating temperature
|
70℃
|
|
Minimum ambient temperature
|
Fixed laying - 40 ℃
|
|
The laying temperature shall
|
Not lower than - 25 ℃.
|
|
Bending radius
|
Minimum 12 times of cable OD
|
|
Nominal section (mm2)
|
Conductor structure (B/R)
|
Cable outer diameter (mm)
|
Reference weight (kg/km)
|
|
1*2.5
|
51*0.25
|
4
|
72
|
|
1*4
|
82*0.25
|
6
|
95
|
|
1*6
|
123*0.25
|
7
|
130
|
|
1*10
|
204*0.25
|
9.5
|
190
|
|
1*16
|
323*0.25
|
11
|
255
|
|
1*25
|
513*0.25
|
12
|
365
|
|
1*35
|
722*0.25
|
13.5
|
475
|
|
1*50
|
1026*0.25
|
15
|
670
|
|
1*70
|
1406*0.25
|
17
|
830
|
|
1*95
|
486*0.50
|
19
|
1200
|
|
1*120
|
608*0.50
|
21
|
1360
|
|
1*150
|
760*0.50
|
23
|
1654
|
|
1*185
|
945*0.50
|
26
|
2050
|
|
2*2.5
|
51*0.25
|
10.5
|
159
|
|
2*4
|
82*0.25
|
12.5
|
230
|
|
2*6
|
123*0.25
|
14
|
276
|
|
2*10
|
204*0.25
|
18
|
413
|
|
2*16
|
323*0.25
|
22
|
567
|
|
2*25
|
513*0.25
|
24.5
|
833
|
|
2*35
|
722*0.25
|
29
|
1088
|
|
2*50
|
1026*0.25
|
33
|
1297
|
|
2*70
|
1406*0.25
|
38
|
1675
|
|
2*95
|
486*0.50
|
41
|
2205
|
|
2*120
|
608*0.50
|
48
|
2660
|
|
2*150
|
760*0.50
|
52
|
3350
|
|
2*185
|
945*0.50
|
57
|
4400
|
|
3*2.5
|
51*0.25
|
12
|
210
|
|
3*4
|
82*0.25
|
13
|
295
|
|
3*6
|
123*0.25
|
14.8
|
375
|
|
3*10
|
204*0.25
|
19
|
559
|
|
3*16
|
323*0.25
|
22
|
770
|
|
3*25
|
513*0.25
|
26
|
1239
|
|
3*35
|
722*0.25
|
33
|
1520
|
|
3*50
|
1026*0.25
|
36.5
|
1970
|
|
3*70
|
1406*0.25
|
40.5
|
2580
|
|
3*95
|
486*0.50
|
48.5
|
3280
|
|
3*120
|
608*0.50
|
53
|
4060
|
|
3*150
|
760*0.50
|
58
|
5197
|
|
3*185
|
945*0.50
|
63
|
6279
|
|
3*4+1*2.5
|
82*0.25
|
14.5
|
300
|
|
3*6+1*4
|
123*0.25
|
16
|
400
|
|
3*10+1*6
|
204*0.25
|
21
|
590
|
|
3*16+1*10
|
323*0.25
|
25
|
850
|
|
3*25+1*16
|
513*0.25
|
30.5
|
1255
|
|
3*35+1*16
|
722*0.25
|
33.5
|
1585
|
|
3*50+1*25
|
1026*0.25
|
40.2
|
2066
|
|
3*70+1*35
|
1406*0.25
|
47.2
|
2778
|
|
3*95+1*50
|
486*0.50
|
50
|
2836
|
|
3*120+1*70
|
608*0.50
|
53
|
4857
|
|
3*150+1*70
|
760*0.50
|
57
|
5700
|
|
3*185+1*95
|
945*0.50
|
66
|
7114
|
|
4*4
|
82*0.25
|
14
|
325
|
|
4*6
|
123*0.25
|
17.5
|
421
|
|
4*10
|
204*0.25
|
22
|
635
|
|
4*16
|
323*0.25
|
24
|
898
|
|
4*25
|
513*0.25
|
31
|
1342
|
|
4*35
|
722*0.25
|
34
|
1765
|
