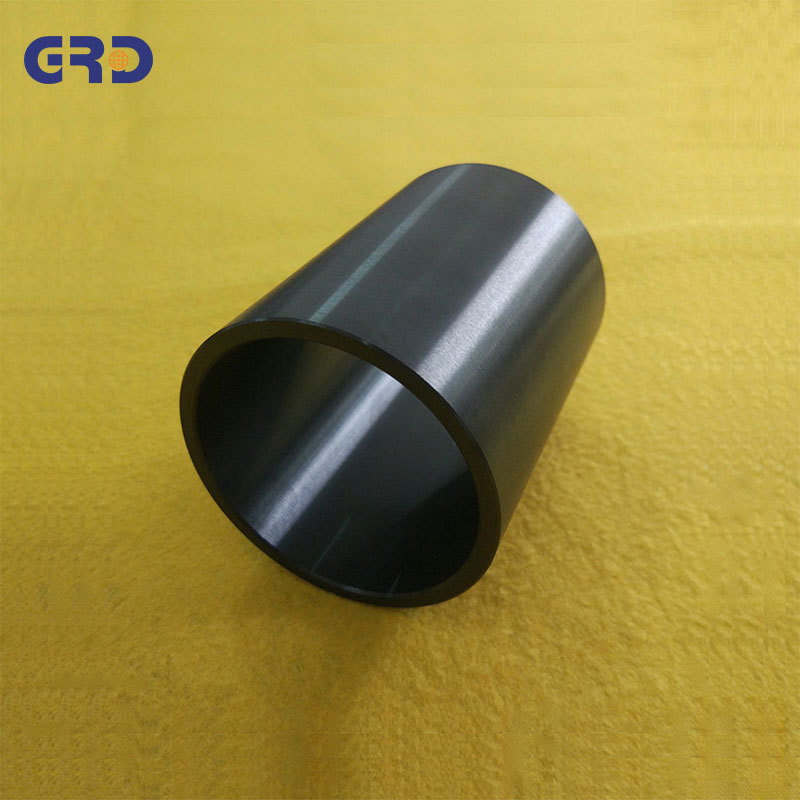

Ceramic silicon nitride bonded silicon carbide bushing for industrial insulation

Ceramic silicon nitride bonded silicon carbide bushing for industrial insulation

FOB Reference Price: Get Latest Price

≥10 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GRD

Product name:: silicon carbide bushing

Size:: Customized Size

Usage:: Machinery Industry

Features:: Wear-resisting

Bush types:: Pipe

Lubricating:: Oilless

Finishing:: Polished

Service:: OEM Services

Advantage:: Customized Service Provided

Quick Details

Material:: Silicon Carbide

Place of Origin:: Henan, China

Model Number:: GRD-SC1911262

Brand Name:: GRD

Product name:: silicon carbide bushing

Size:: Customized Size

Usage:: Machinery Industry

Features:: Wear-resisting

Bush types:: Pipe

Lubricating:: Oilless

Finishing:: Polished

Service:: OEM Services

Advantage:: Customized Service Provided

Product Description

Ceramic silicon nitride bonded silicon carbide bushing for industrial insulation

Silicon carbide (SiC) is a lightweight ceramic material with high strength properties, excellent thermal conductivity, low thermal expansion, and is resistant to corrosion from acids. Because of its excellent properties, silicon carbide products are more and more widely applied in various fields nowadays.

Types of silicon carbide bushing
1. Recrystallized silicon carbide (RSIC)		10~150mm
2. Silicon nitride ceramic (Si3N4)
3. Reaction sintered silicon carbide (SiSiC / RBSiC)		2500mm
4. Pressureless sintered silicon carbide (SSiC)

Application and use

Typical application of silicon carbide bushing

1. Mechanical Seal
2. Heat Exchanger
3. Armor Plate
4. Ball Valve Parts
5. Pump Components
6. Metallurgical Engineering
7. Water pump seals

Detailed Images

Silicon carbide products contain tube, beam, thermocouple protection sheath, riser pipe, roller, bushing, shield, burner nozzle, loading plate (shelf board), ignitor, crucible, sealing ring, wafer, rod, beads, ball and other irregular shapes.

Size Information

Silicon carbide bushing
Item	Unit	SiSiC	SSiC
Bulk density	(g/cm3)	≥3.03	3.10--3.15
Hardness	HRA	91--93	92--94
Compressive strength	Mpa	≥2000	≥2200
Bending strength	Mpa	≥350	≥400
Modulus of elasticity	GPa	350	400
Thermal conductivity	W/m.k (20 ℃)	50~110	120--150
Thermal expansion	10 ^-6 .1/℃	4	4
Maximum service temperature	℃	1300	1600

Related Products

Packing&Shipping

Silicon carbide bushing is packed in export standard plywood case outside, lined with sponge and foam inside. It is also individually packed with buffer material to ensure the safety of the goods.

The goods will be shipped by air, by sea, by railway or by express delivery/courier like DHL, FedEx, TNT, UPS, EMS and so on.

Company Introduction

Henan Gurdoo Industry Co.,Ltd. is founded by engineers who have more than 20 years’ experience in research and production, which is specialized in manufacturing SiC heaters, MoSi2 heating elements, alumina ceramics, silicon carbide refractory, high temperature furnace and also can supply molybdenum and tungsten products, ceramic fiber insulation and quartz glass tube, etc.
Focusing on professional high temperature working field, we have the stable and efficient industrial production with ISO9001, CE, GB, CO, FTA certifications etc. All material & components adopt the qualified materials. 100% quality check and durable testing for every product before shipment will supply you high quality products and VIP service.
We have a well team-conscious, the ability of communication and coordination, work hard, meticulous and patience can afford the pressure of the work.
We provide cost efficient quality products for our customers, assisting them to gain competitive advantages are our major focus.

After Sales Service

Our advantages

1. Any inquiries will be replied professionally within 24hours.
2. Technical staff available for the technical assistance anytime.
3. Professional customization of furnace and project is offered.
4. Small MOQ, Fast delivery and competitive freight.
5. Also can help to purchase other products if you needed.

FAQ

Q1. What information should we supply to get a quote?
Please offer the specification of silicon nitride ceramic silicon carbide bushing , such as dimension or drawing, quantity, application etc.

Q2. What type or material should we choose?
If you are not sure about the type/material needed, please kindly supply more details about working condition and application. Then our technical staff will check and offer you the most suitable type or material.

Q3. How can we place an order?
You can contact any sale person by email, trade manager, Skype, WhatsApp, WeChat and so on.
And more details of the products you supplied will be helpful to get the targeted responses.

Q4. How long our order can be finished?
A mass of semi-finished products and standard sizes are available in stock, and 10-30days for bulk production or customized products.

Q5. What do you do on quality control?

For every batch, each step and finished products will be inspected when producing by QC department.

Q6. How can we get the sample?
Free samples can be supplied after communication, but freight is for your account.

Q7. Can you accept OEM/ODM?
Yes, your goods will be produced exactly according to your drawings.
