Quick Details
-
Brand Name:
-
homelan
-
Model Number:
-
EWP42 MP42
-
Mechanical Life:
-
10000
-
switch controller:
-
waterproof switch box
Quick Details
-
Max. Current:
-
20A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
homelan
-
Model Number:
-
EWP42 MP42
-
Mechanical Life:
-
10000
-
switch controller:
-
waterproof switch box
The Weatherproof Switch range comprises a robust polycarbonate enclosure incorporating a 1 or 2 gang Grid Switch Module
arrangement. It provides a convenient & safe wall-mounted control for outdoor equipment such as lighting, garden pond pumps, etc
up to 20A current rating.
Modules can be changed for others from the Grid range such as a 20A Double Pole or retractive 'PRESS' switch.
The enclosure is IP66 rated in use, which means that the sealed construction provides a very high level of protection against the
ingress of both water & dust.
The Neon indicator can be used to illuminate the switch in a number of ways depending on wiring, presence of supply Neutral.
arrangement. It provides a convenient & safe wall-mounted control for outdoor equipment such as lighting, garden pond pumps, etc
up to 20A current rating.
Modules can be changed for others from the Grid range such as a 20A Double Pole or retractive 'PRESS' switch.
The enclosure is IP66 rated in use, which means that the sealed construction provides a very high level of protection against the
ingress of both water & dust.
The Neon indicator can be used to illuminate the switch in a number of ways depending on wiring, presence of supply Neutral.
Features
1.Clearly marked terminals with backed out captive screws for easy installation
2. 20 Amp, 20AX inductive rated
3. Covers to seal the fixing screws
4. Earth terminal in mounting box
5. All cable entries in the 4 sides have removable blanking caps.
6. Neon indicator that can be wired to illuminate when off or on depending on wiring
2. 20 Amp, 20AX inductive rated
3. Covers to seal the fixing screws
4. Earth terminal in mounting box
5. All cable entries in the 4 sides have removable blanking caps.
6. Neon indicator that can be wired to illuminate when off or on depending on wiring

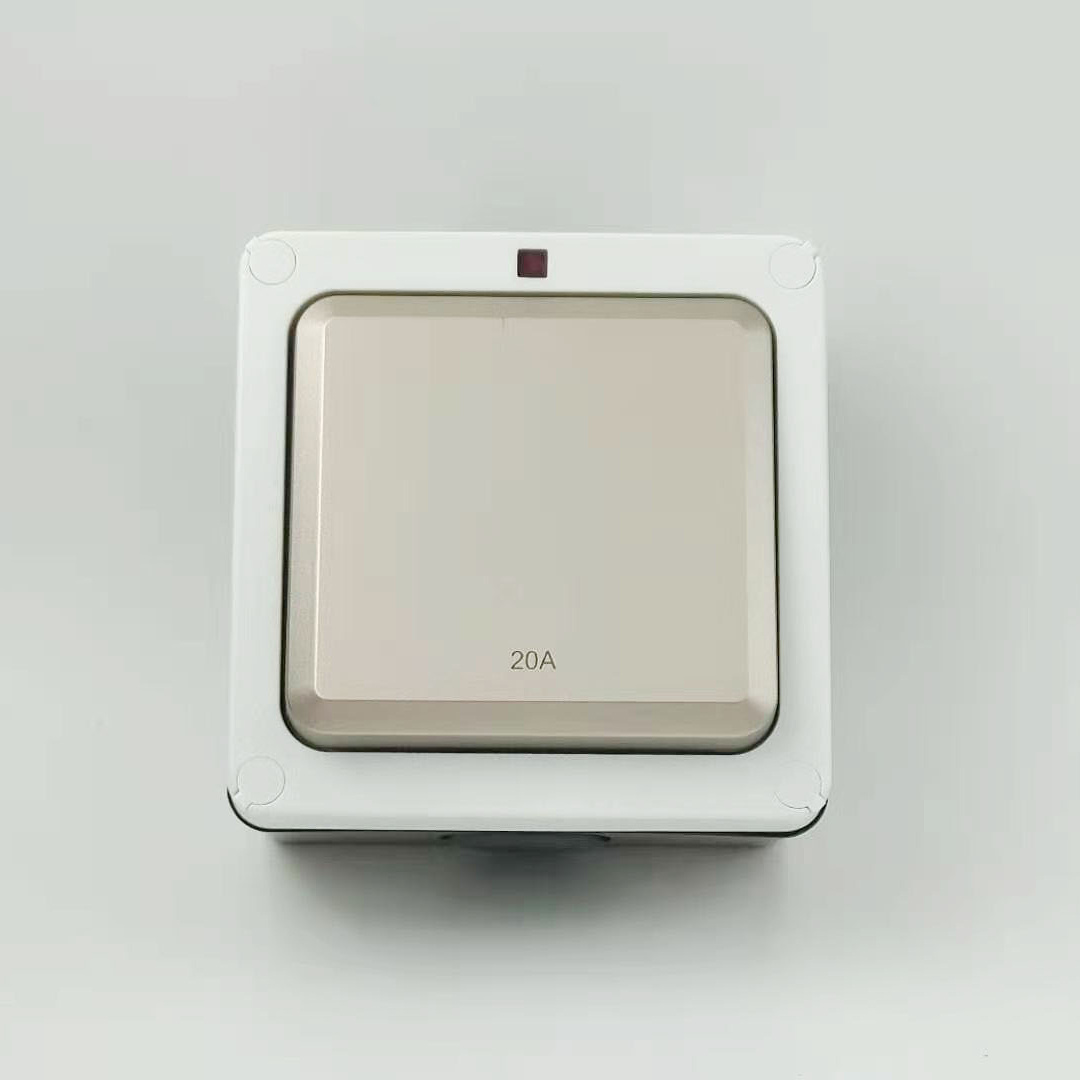

EWP12,EWP14,EWP42, 20 AMP 20AX Weatherproof Switches
* Standard: BS EN 60669-1
* Rating: 20 Amp 250V
* Switch type: Single pole
* Contact Gap: 3.0mm minimum
* Terminal Capacity: 4 x 1.0mm2 4 x 1.5mm2 2 x 2.5mm2 1 x 4.0mm2
* IP rating: IP66
* Size: 91mm x 91mm x 67mm
* Number of 20mm cable entries: 5 x 20mm. 1 in each of 3 sides and 2 in the remaining side;
1 drill out entry 20/25mm in rear face
* Standard: BS EN 60669-1
* Rating: 20 Amp 250V
* Switch type: Single pole
* Contact Gap: 3.0mm minimum
* Terminal Capacity: 4 x 1.0mm2 4 x 1.5mm2 2 x 2.5mm2 1 x 4.0mm2
* IP rating: IP66
* Size: 91mm x 91mm x 67mm
* Number of 20mm cable entries: 5 x 20mm. 1 in each of 3 sides and 2 in the remaining side;
1 drill out entry 20/25mm in rear face
|
item
|
value
|
|
Network
|
NFC
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
homelan
|
|
Model Number
|
EWP42 MP42
|
|
Max. Current
|
20A
|
|
Max. Voltage
|
250V
|
|
Mechanical Life
|
10000
|
