Quick Details
-
Bottle Volume(ml):
-
2500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BAOGE
-
Year:
-
New
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1450*590*1650(mm)
-
Hollow part volume:
-
5 CBM
-
Clamping Force (kN):
-
1000
-
Power (kW):
-
8
-
Weight (KG):
-
1000 KG
-
Name:
-
BG-1000A
-
Suitable bottle:
-
PET Bottle
-
Power(W):
-
8 KW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
blow moulding machine price
-
Key words:
-
blow moulding machinery
-
Capacity:
-
1000 BPH
-
Color:
-
Customized
-
Machine weight:
-
1000 KG
-
Machine size:
-
1450*590*1650(mm)
Quick Details
-
Neck Diameter(mm):
-
38 mm
-
Max.Bottle Diameter(mm):
-
130 mm
-
Max.Bottle Height(mm):
-
380 mm
-
Bottle Volume(ml):
-
2500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BAOGE
-
Year:
-
New
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1450*590*1650(mm)
-
Hollow part volume:
-
5 CBM
-
Clamping Force (kN):
-
1000
-
Power (kW):
-
8
-
Weight (KG):
-
1000 KG
-
Name:
-
BG-1000A
-
Suitable bottle:
-
PET Bottle
-
Power(W):
-
8 KW
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
blow moulding machine price
-
Key words:
-
blow moulding machinery
-
Capacity:
-
1000 BPH
-
Color:
-
Customized
-
Machine weight:
-
1000 KG
-
Machine size:
-
1450*590*1650(mm)
Products Description
What We Can Blow
Taizhou Baoge can produce
various shapes and sizes of plastic bottles and containers
, including but not limited to:
-
Round Bottles
: Fully automatic blow molding machines can produce round bottles in various shapes and sizes, such as water bottles, juice bottles, soda bottles, etc.
-
Square Bottles
: Fully automatic blow molding machines can also produce square or rectangular bottles, which are commonly used for shipping liquid detergents, cleaning agents, soap solutions, etc.
-
Oval Bottles
: Fully automatic blow molding machines canproduce oval-shaped bottles, which are commonly used for personal care products such as cosmetics, body washes, shampoos, etc.
-
Irregular-Shaped Bottles
: In addition to the above shapes, fully automatic blow molding machines can also produce bottles withunique shapes, such as flat bottles, triangular bottles, hexagonal bottles, etc.
In reality, we can produce many different shapes and sizes of bottles, depending on its design and configuration.
If you have any questions, please contact us.
|
Model
|

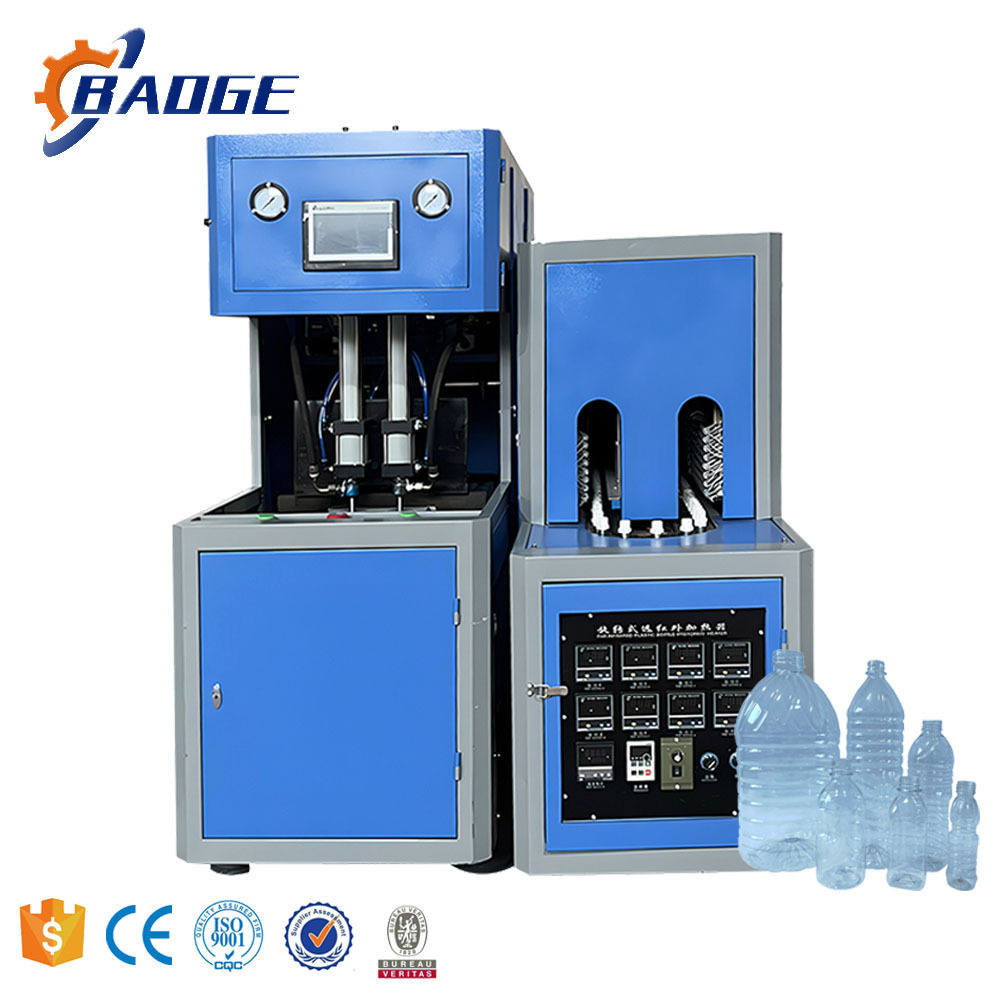

BG-1000A Semi Automatic PET Bottle Blowing Machine
|
|
|
|
Theoretical output
|
500-1000 BPH
|
|
|
|
|
Max. bottle volume
|
2500ml
|
|
|
|
Max. neck diameter
|
45mm
|
|
|
|
Max. bottle diameter
|
150mm
|
|
|
|
Max. bottle height
|
305mm
|
|
|
|
Cavity
|
2 cavity
|
|
|
|
Mold thickness
|
110mm-230mm
|
|
|
|
Open stroke
|
340mm
|
|
|
|
Power voltage
|
380V / 50Hz , 220V / 60Hz
|
|
|
|
Installation power
|
16 kw
|
|
|
|
Actual power consumption
|
8 kw
|
|
|
Air source
|
Recommend air compressor
|
1.2m³/min 30Kg
|
|
|
Cooling water
|
Recommend water chiller
|
3HP
|
|
|
Blowing machine size
|
Length*width*
height/weight
|
2000*615*
1770mm/650kg
|
|
|
Heater size
|
Length*width*
height/weight
|
1700*565*
1360mm/350kg
|
|
Details Images
•
Adopting double crank to adjust mould , heavy locking mould, stable and fast , Adopt infrared oven to heat the perforrm,the perform rotated and heated equally.
•
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
•
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the
machine.
•
The machine can be operated in the step-by-step mode and the semi-auto mode.
•
The machine is small with low investment, easy and safe to operate.
•
The shell of our machine is made of 1.5mm thick stainless steel, which will not be damaged during transportation or long-term use by customers.
•
We using high efficiency infrared lamps, evenly heating preform, to make sure every section of preform.
•
The power saving lamp help you save up to 30% energy.
•
Blowing Mold, good and durable material.
•
The high pressure blowing cylinder, we choose high capacity cylinder, stable working for any size of customer botttle type durable use and more powerful.
Taizhou Baoge Service
Bottle Design.
Our designers can design bottle styles according to your requirements.
Machine Layout.
We will confirm the machine layout according to your factory.
Sample Project.
We can provide a sample project for you to visit.
Complete device connection drawing
Auxiliary equipment description
*High Pressure Air Compressor Function
: To provide air source for PET stretch blow moding machine,carrying out the process of compressing air from atmosphere to the required pressure.
*Air Cooling Dryer Function
:To remove the moisture from the compressed air and lower temperature of the compressed air in the heat ex-changer.
*Air filter Function
: To clear up the impurities out of the compressed air,like carbon hydrogen, tiny dust and solid particles.
