Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JU
-
Model Number:
-
PMC06/09/12/16/18/25/31/37/50PNA
-
Material:
-
PP (Polypropylene)
-
Product name:
-

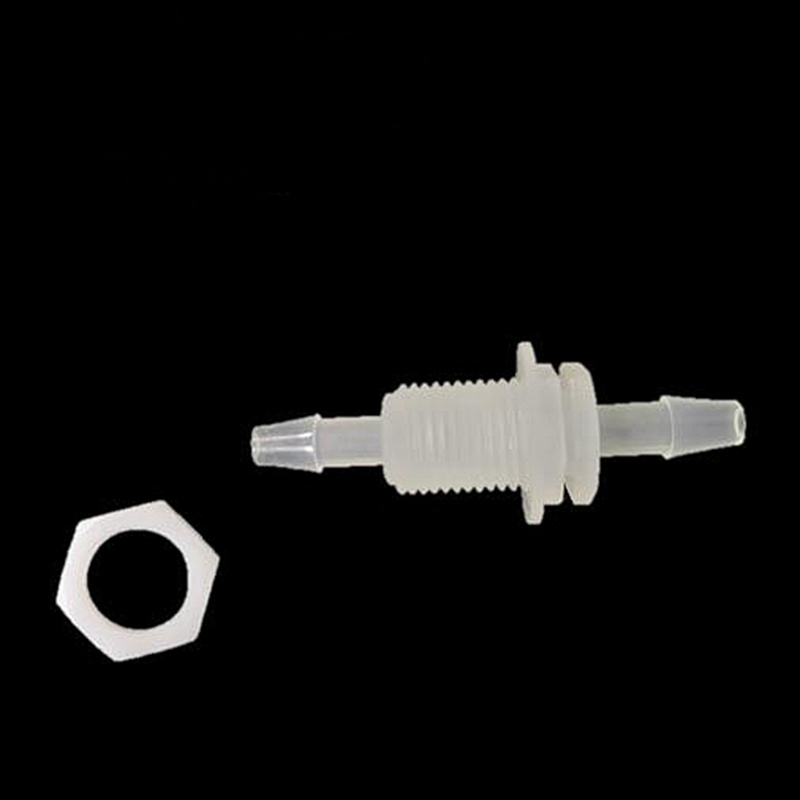

Hose Barb Bulkhead Connector
-
Size:
-
1/16"(1.6mm)-1/2"(12.7mm) ID hose
-
Color:
-
Clear or customize
-
Working Pressure:
-
Up to 100Psi
-
Working Temperature:
-
Max 100 Degree
-
Panel Mount Type:
-
1/4-28UNF, 7/16-24UNS, 1/2-24UNS,11/16-24UNEF
-
Delivery time:
-
About 7-15 days based on quantity
-
Application:
-
Analysis, medical, biochemical, industrial, lab,food processing etc
-
Fixing Nut:
-
Each set comes with a fixing nut
Quick Details
-
Technics:
-
Injection Molding
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JU
-
Model Number:
-
PMC06/09/12/16/18/25/31/37/50PNA
-
Material:
-
PP (Polypropylene)
-
Product name:
-
Hose Barb Bulkhead Connector
-
Size:
-
1/16"(1.6mm)-1/2"(12.7mm) ID hose
-
Color:
-
Clear or customize
-
Working Pressure:
-
Up to 100Psi
-
Working Temperature:
-
Max 100 Degree
-
Panel Mount Type:
-
1/4-28UNF, 7/16-24UNS, 1/2-24UNS,11/16-24UNEF
-
Delivery time:
-
About 7-15 days based on quantity
-
Application:
-
Analysis, medical, biochemical, industrial, lab,food processing etc
-
Fixing Nut:
-
Each set comes with a fixing nut
Specification
|
Product Name
|
Wholesale Price Plastic Pipe Barbed Bulkhead Fitting Panel Mount Connector
|
|
|
|
|||
|
Material
|
Natural Polypropylene
|
|
|
|
|||
|
Bulkhead Lock Nut for 2-Piece Set
|
White color
|
|
|
|
|||
|
Panel Mount Thread for 2-Piece Set
|
7/16-24UNS to 5/32"(4mm), 3/16"(4.8mm),1/4"(6.4mm)ID Tubing;
1/2-24UNS to 5/16"(7.9mm), 3/8"(9.5mm)ID Tubing;
11/16-24UNEF to 1/2"(12.7mm)ID Tubing; |
|
|
|
|||
|
Bulkhead Lock Nut for 3-Piece Set
|
Semi-transparent, Red, Blue, Green, Yellow, Black, White color for choice
|
|
|
|
|||
|
Bulkhead Lock Ring for 3-Piece Set
|
Semi-transparent, Red, Blue, Green, Yellow, Black, White color for choice
|
|
|
|
|||
|
Panel Mount Thread for 3-Piece Set
|
1/4-28UNF to 1/16"(1.6mm), 3/32"(2.4mm), 1/8"(3.2mm)ID Tubing;
|
|
|
|
|||
|
Technology
|
Injection molding
|
|
|
|
|||
|
Application
|
Analysis, medical, biochemical, industrial, lab,food processing etc
|
|
|
|
|||
