Quick Details
-
Dimension(L*W*H):
-
8240*2500*3740 mm
-
Power:
-
247 KW
-
Engine Capacity:
-
9.726 L
-
Key words:
-
6m3 Mini Concrete Machinery New G06K Small Concrete Mixer Trucks
-
Delivery time:
-
Within 15days
-
Origin:
-
china Original
-
MOQ:
-
1PC
-
Color:
-
Customers Requirements
-
Location:
-
hefei
-
Keywords:
-
mini concrete small mixer trucks
-
Brand:
-
HL
-
Other name:
-
mini truck concrete mixer
-
Product name:
-
mixer concrete truck
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HL
-
Weight:
-
12250 kg
-
Dimension(L*W*H):
-
8240*2500*3740 mm
-
Power:
-
247 KW
-
Engine Capacity:
-
9.726 L
-
Key words:
-
6m3 Mini Concrete Machinery New G06K Small Concrete Mixer Trucks
-
Delivery time:
-
Within 15days
-
Origin:
-
china Original
-
MOQ:
-
1PC
-
Color:
-
Customers Requirements
-
Location:
-
hefei
-
Keywords:
-
mini concrete small mixer trucks
-
Brand:
-
HL
-
Other name:
-
mini truck concrete mixer
-
Product name:
-
mixer concrete truck

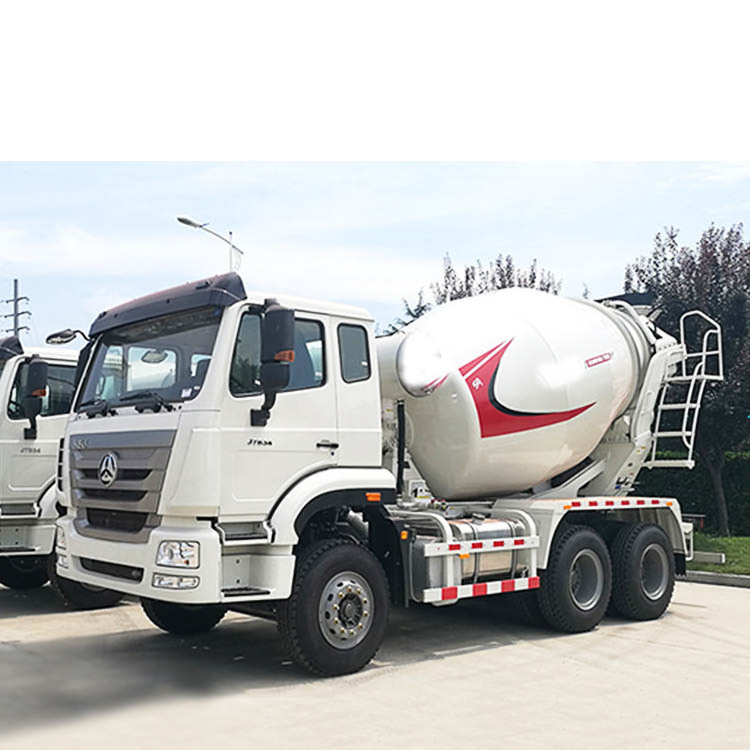

Product Description
|
Category
|
Model
|
Unit
|
G06K
|
|
Performance of mixing drum
|
Geometric volume
|
m³
|
11.6
|
|
|
Max. diameter of drum
|
mm
|
2250
|
|
|
Drum length
|
mm
|
4217
|
|
|
Mounting tilt angle
|
°
|
15
|
|
|
Rotary speed
|
r/min
|
0~14
|
|
|
Charging speed
|
m³/min
|
≥3
|
|
|
Discharging speed
|
m³/min
|
≥2
|
|
|
Residual ratio of discharging
|
%
|
<0.7
|
|
|
Range of slump
|
cm
|
5~21
|
|
Water supply
|
Volume of water tank
|
L
|
450
|
|
|
Way of water supply
|
|
Air pressure
|
|
Overall machine
|
Chassis brand
|
|
SinoTruck
|
|
|
Chassis model
|
|
ZZ1255N3246B1
|
|
|
Steering wheel
|
|
Left steering wheel
|
|
|
Curb mass
|
kg
|
12250
|
|
|
Driving type
|
|
6×4
|
|
|
Wheelbase
|
mm
|
3225+1350
|
|
|
PTO way
|
|
Flywheel PTO
|
|
|
Outline dimension (L*W*H)
|
mm
|
8240*2500*3740
|
|
Engine
|
Model
|
|
WD615.69
|
|
|
Rated power
|
Kw/r/min
|
247
|
|
|
Displacement
|
L
|
9.726
|
|
|
Emission standard
|
|
Euro II
|
