Quick Details
-
Medium Temperature:
-
10-80
-
Operating Environment:
-
5-50
-
Repeatability:
-
-1%-1%
-
Static Sealing Ring:
-
FKM,PTFE ,etc
-
Model No:
-
LNM
-
Storage Conditions:
-
Dry/Dust-Free
-
Sealing form:
-
Shaft seal
-
The minimum dose:
-
0.01ml
-
Flow range:
-
1.65ml-60ml
-
Minimum staring torque:
-
0.8N.m
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Ronice
-
Weight (KG):
-
0.5
-
Medium Temperature:
-
10-80
-
Operating Environment:
-
5-50
-
Repeatability:
-
-1%-1%
-
Static Sealing Ring:
-
FKM,PTFE ,etc
-
Model No:
-
LNM
-
Storage Conditions:
-
Dry/Dust-Free
-
Sealing form:
-
Shaft seal
-
The minimum dose:
-
0.01ml
-
Flow range:
-
1.65ml-60ml
-
Minimum staring torque:
-
0.8N.m

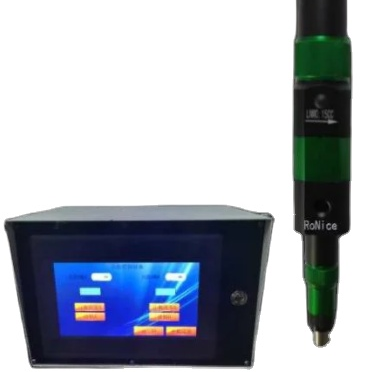

Single liquid screw valve is different from screw pump,The quantitative conveying accuracy is extremely high, and the minimum quantitative is 0.001ml (the accuracy is within 1%) and The output flow rate is constant and has no pulsation (repetition accuracy is above 99%), and the glue amount is not affected by the change of medium viscosity, temperature and pressure and other parameters.
what's more ,It is suitable for precise and quantitative transportation of various high viscosity media and granular media and can be back suction, completely eliminate drawing, dripping and other phenomena,in the end , the conveying pressure is 16-20Bar, and the modular design is easy to use and clean.
Advantage Description
1.The quartlaiie comeying acaurecy is exiremely high, and the mnimum quanttatrve o acuracy is within 1%)
2. constani and has no puisatian (repettion accuracy is above 99% not affected by the change of medium viscosity, temperature and pressure and other parameters.
3. It is satable for procise and quaniilalive transportation of various high viscosity media and granular media.
4. it can suck back and completely eliminate the phenomena of wire drawing and dripping
5. The conveying pressure is 16-20Bar, and the modular design is easy to use and clean.
| Model | LNM0.05CC | LNM0.15CC | LNM0.25CC | LNM0.5CC |
| Size | Length141mm | Length141mm | Length160mm | Length183mm |
| Max output pressure | 0-20 bar | 0-20 bar | 0-20 bar | 0-20 bar |
| Viscosity range | 0-500000CPS | 0-500000CPS | 0-500000CPS | 0-500000CPS |
| Sealing form | Shaft seal | Shaft seal | Shaft seal | Shaft seal |
| Static sealing ring | FKM or PTFE | FKM or PTFE | FKM or PTFE | FKM or PTFE |
| Speed range reference | 0-120Rpm/min | 0-120Rpm/min | 0-120Rpm/min | 0-120Rpm/min |
| Storage conditions | Dry/dust-free | Dry/dust-free | Dry/dust-free | Dry/dust-free |
| Each rotation is about | 0.05ml | 0.15ml | 0.25ml | 0.45ml |
| The min dose | 0.01ml | 0.04ml | 0.08ml | 0.15ml |
| Flow range | 1.65-6.0ml | 4.95-18.0ml | 8.25-30.0ml | 16.5-60.0ml |
