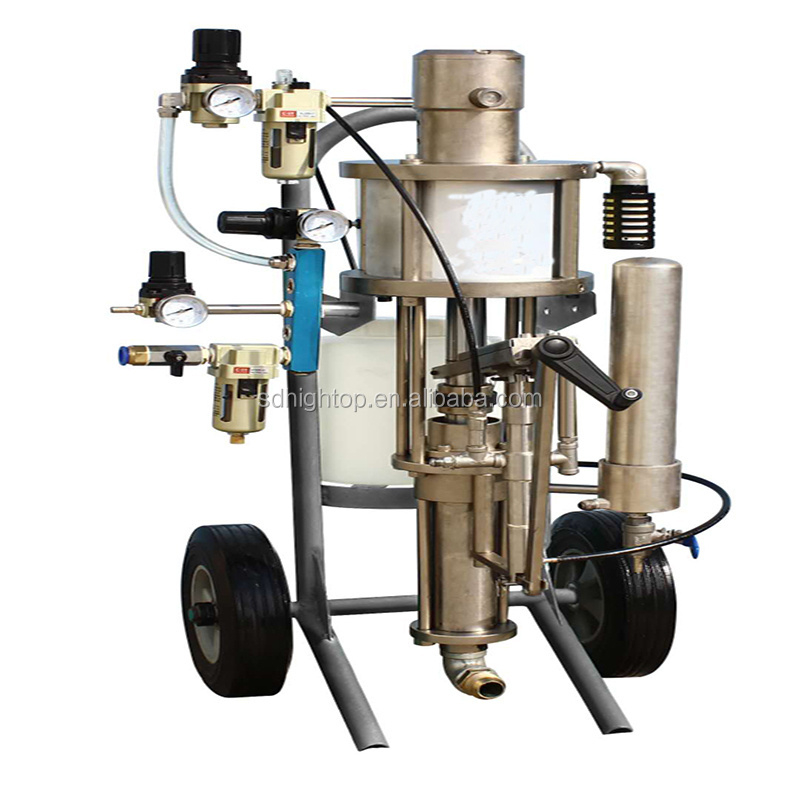

fiberglass chopper resin spray machine with gun

fiberglass chopper resin spray machine with gun

FOB Reference Price: Get Latest Price

≥1 Sets

US $4000

≥50 Sets

US $3750

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: No electric

Dimension(L*W*H):: 82*82*100cm

Power (kW):: 10

Weight (KG):: 110 KG

Certification:: ce

Quick Details

Place of Origin:: Shandong, China

Brand Name:: CNMC-CZ

Machine Type:: High pressure spray machine

Voltage:: No electric

Dimension(L*W*H):: 82*82*100cm

Power (kW):: 10

Weight (KG):: 110 KG

Certification:: ce

Product Overview

Hightop fibreglass chop equipment for FRPs (fibre-reinforced plastics) is engineered with exclusive technological advancements to provide unmatched durability and ease of use. Unique spray control technology delivers a superior mix of resin and fibreglass chop strands for material efficiency and better working environments. Operators can maximise production capacity with a simple user interface and tool-free catalyst adjustments.

FEATURES AT A GLANCE

Standard Nozzle: 1.4 mm 2.5L-6L/min spray resin . Operating Pressure: 45 to 60 PSI (3.0 to 4.0 bar) Pattern Width: (200 to 500 mm)
Air Consumption: Above 23cfm . Heavy Duty Pressure Feed Paint Tank Specifications: Clamp on Lid with Gasket Fluid pressure
regulator with gauge Paint Tank Operating Pressure: Optimal 25-30 PSI Hose Assembly: 15 meters Hoses Air inlet: 16mm Fluid inlet:
3/8" Air Pressure Relief Valve for Safety Includes Instruction Manual

PRODUCT SPECIFICATIONS

No		Data
1	Resin spray flow rate	2.5-8L/MIN
2	Operating Pressure	45 to 60 PSI
3	Pattern Width	200 to 500 mm
4	Air Consumption	23CFM
5	Hose Assembly	15M
6	Air inlet	16MM
7	Fluid inlet	3/8"
8	Standard Nozzle	1.4MM
