Dimmable ceiling circular light Big size LED aluminum light fixtures for shopping mall

Dimmable ceiling circular light Big size LED aluminum light fixtures for shopping mall

FOB Reference Price: Get Latest Price

≥2 Pieces

US $40

Free Inquiry

Customized Request

Explore More Products

Square single head COB ceiling light 85-265V embedded spotlight shopping mall clothing store LED downlight

$ 0.5 - $ 1

Ceiling Fans With Led Lights Remote Control For Bedroom Dimmable Invisible Ceiling Fan With Light

$ 4 - $ 6

Aluminum Slim Round Frameless Household Exhibition Hall Ceiling Using 10w 18w Led Panel Light

$ 3.2 - $ 18

Hot selling Die casting aluminum T bulb bulbs led light for home decorating

$ 3 - $ 7

Product Details

{{item.text}}

Quick Details

Application:: Office

Product Weight（kg）:: 4

Type:: Circle ring shape

Model Number:: HR6065

Working Temperature(℃):: -20`50

Working Lifetime(Hour):: 50000

Beam Angle(°):: 120

Light Source:: LED

CRI (Ra>):: 80

IP Rating:: IP20

Dimension:: Customization sizes

Product name:: Extrusion Aluminum LED ring light

Diameter options:: 0.45m, 0.6m,0.8m,1.0m,1.2m,1.5m,1.8m,2.0m,2.4m,3m,3.6m,4m,4.5m,5m

Main material:: Aluminum +PC

Style:: Simple, Nordic, Modern

Lumen efficacy:: 100lm/w

Control way:: switch on/off, 0-10V dimmable, DALI+PUSH, DALI DT8, Triac dimmable

Suitable for:: Commercial building, office, store, mall. hotel

Installation:: Suspended, ceiling, recessed

Shell color:: White, black, silver, golden

Quick Details

Lamp Luminous Efficiency(lm/w):: 100

Warranty(Year):: 5-Year

Lamp Body Material:: Aluminum

Application:: Office

Product Weight（kg）:: 4

Type:: Circle ring shape

Model Number:: HR6065

Working Temperature(℃):: -20`50

Working Lifetime(Hour):: 50000

Beam Angle(°):: 120

Light Source:: LED

CRI (Ra>):: 80

IP Rating:: IP20

Dimension:: Customization sizes

Product name:: Extrusion Aluminum LED ring light

Diameter options:: 0.45m, 0.6m,0.8m,1.0m,1.2m,1.5m,1.8m,2.0m,2.4m,3m,3.6m,4m,4.5m,5m

Main material:: Aluminum +PC

Style:: Simple, Nordic, Modern

Lumen efficacy:: 100lm/w

Control way:: switch on/off, 0-10V dimmable, DALI+PUSH, DALI DT8, Triac dimmable

Suitable for:: Commercial building, office, store, mall. hotel

Installation:: Suspended, ceiling, recessed

Shell color:: White, black, silver, golden

Product Description

Aluminum body LED circular light, has various diameters to choose, they are 0.45m, 0.6m, 0.8m, 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.4m, 3.0m, 3.6m, 4.0m, 4.5m, 5.0m, and it is also allowed to custom made other sizes and colors.

Opal PC diffuser

Our PC cover is exactly fixed on aluminum housing, it is not loose. With high quality Plastic raw material, they stay white color after long time use. No yellowing.

Strong aluminum housing structure(not iron body)

The aluminum profile is 2.0mm, 2.2mm thick, to make sure the entire housing has good strength, and better heat dissipation.

Circle ring diameter from 0.6m to 1.0m is full circle light, they are one part.

1.2m diameter can be 1 part or 2 parts connection depends on client need, 2 parts for saving shipping cost.

Big diameter from 1.5m to 2.4m is connected by 4 parts, bigger diameter has more connections.

All of them are seamless connection, there is not light leakage after installation complete.

Detailed Images

Product Advantage:

a. Light emitting uniformly, no dark spot, no dark edge.

b. whole housing is extrusion aluminum, with top level surface painting treatment, products looks and feel excellent.

c. Branded power driver built-in, stable and flicker-free. When taking photo or video in the room, there is no screen flickering on the mobile.

d. very good heat dissipation, to make sure long lifespan 50000 hours.

Product Paramenters

Item Number	Dimension (mm)	Shell Color	Light color	Other spec
HR4040 HR6040 HR8040 HR6065 HR4080 HR6080 HR8080 HR5075	450x450x(H40/65/75/80)	Black White Silver Gold RAL color	3000K 4000K 6000K RGB RGBW CCT	Aluminum housing structure, 100lm/w, CRI>80, PF>0.95, FLICKER-FREE, Various mounting.
					600x600x(H40/65/75/80)	White Black (Other RAL colors customized)
					800x800x(H40/65/75/80)
					1000x1000x(H40/65/75/80)
					1200x1200x(H40/65/75/80)
					1500x1500x(H40/65/75/80)
					2000x2000x(H40/65/75/80)
					2400x2400x(H40/65/75/80)
					3000x3000x(H40/65/75/80)

Installation Instructions

There are 5 mounting options.

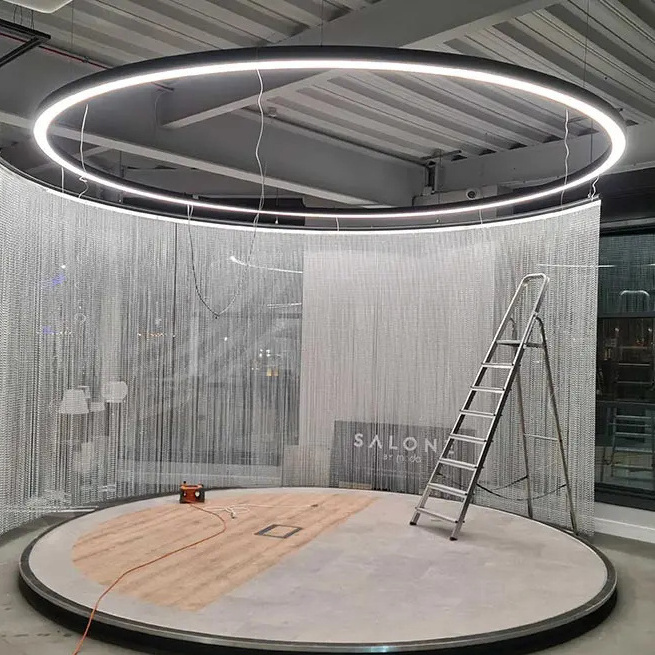

Type 1 : Normal suspended mounting, the hanging ropes are parallel, suitable for all sizes.

Type 2 : Vertical suspension with a ceiling base(ceiling rose), suitable for all sizes.

Type 3 : Central suspension with ceiling base in the middle position, suitable for ring diameter <1.5meter.

Type 4 : Ceiling surface mounting, suitable for flat ceiling.

Type 5 : Trimless recessed mounting, suitable for gypsum plaster ceiling( Drywall ceiling ).

Please indicate which mounting way you will need, we normally only supply type 1 accessories with suspension steel ropes 1.5meter.

Product Application

Apply to shopping mall, commercial office, school, meeting room, retail store, car display center, bank, hospital, residence, lobby, hotel, garage, warehouse, other indoor places, etc.
