Quick Details
-
Model Number:
-
CARX--16
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
composite air evacuation valves
-
Suitable medium:
-
water
-
Body material:
-
Ductile iron
-
PN:
-
1.0-1.6MPa
-
DN:
-
DN50-DN600
-
Color:
-
Customer's Request
-
Suitable temperature:
-
-10-120 degree
-
Certificate:
-
ISO9001:2008 CE API
-
nominal diameter:
-
DN50-DN600
Quick Details
-
Port Size:
-
DN50-DN600
-
Warranty:
-
1 year
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
CARX--16
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
composite air evacuation valves
-
Suitable medium:
-
water
-
Body material:
-
Ductile iron
-
PN:
-
1.0-1.6MPa
-
DN:
-
DN50-DN600
-
Color:
-
Customer's Request
-
Suitable temperature:
-
-10-120 degree
-
Certificate:
-
ISO9001:2008 CE API
-
nominal diameter:
-
DN50-DN600

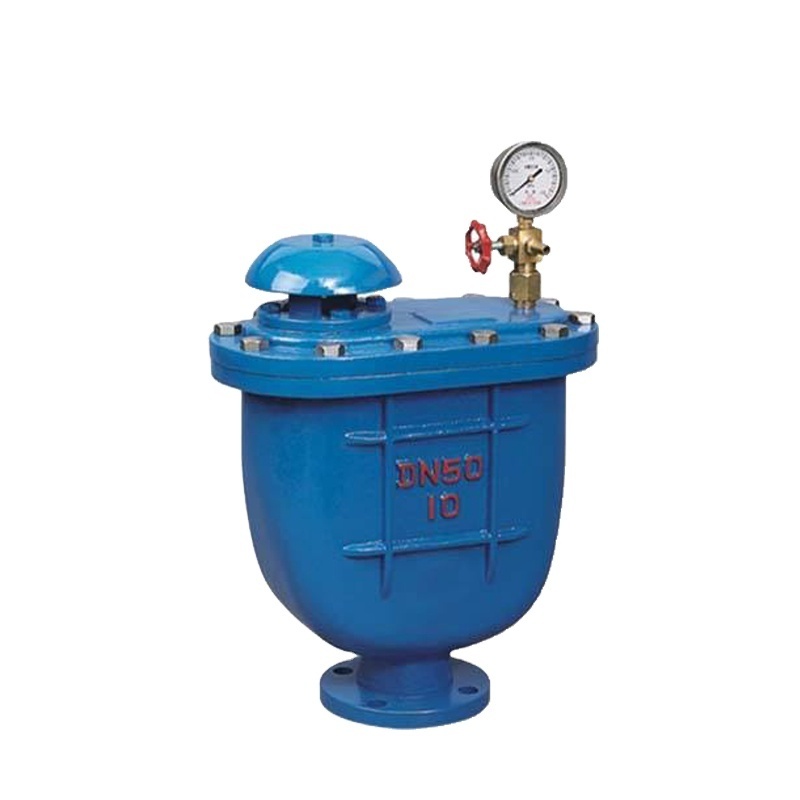

composite air evacuation valves
Brief introduction:
The air release valve is used at the highest point on the sewage pipeline or where the gas is closed, and the pipeline can be dredged by excluding the gas inside the pipe to achieve normal operation.
Main Performance:
| Working Pressure | PN10 / PN16/PN25 |
| Testing Pressure | Shell: 1.5 times rated pressure, |
| Seat: 1.1 times rated pressure. | |
| Working Temperature | -10°C to 80°C (NBR) |
| Suitable Media | Water. |
Main Materials:
| Part | Material |
| Body |
Cast Iron GG25 / Ductile iron
|
|
Seal gasket
|
NBR |
| Disc | Stainless steel 416 |
| Ball | 304 |
| Air port | NBR |
| Ball | Stainless steel 304 |
| Bolt | Ductile iron |
| Nut | Carbon steel |
| Packing gland | Carbon steel |
| Stem | SS 416 |
Purpose:
This air release valve is used for industry water pipeline as the device of releasing gas to improve the efficiency of water deliverying and avoid the transformation & fracture of pipes. It is the necessary equipment of pipelines.
