Quick Details
-
Marketing Type:
-
Hot Product
-
pressure output:
-
according to the connection clean high pressure source
-
Weight:
-
35kg
-
input voltage:
-
220V(+-10%) 50HZ
-
barometer:
-
display range is 0-100pSi
-
Dispatch time display:
-
Display setting time
-
Size:
-
1L
-
Material:
-
Stainless Steel + Aluminum Alloy
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
STRONG
-
Weight (KG):
-
35
-
Marketing Type:
-
Hot Product
-
pressure output:
-
according to the connection clean high pressure source
-
Weight:
-
35kg
-
input voltage:
-
220V(+-10%) 50HZ
-
barometer:
-
display range is 0-100pSi
-
Dispatch time display:
-
Display setting time
-
Size:
-
1L
-
Material:
-
Stainless Steel + Aluminum Alloy
Product Description
Product Description

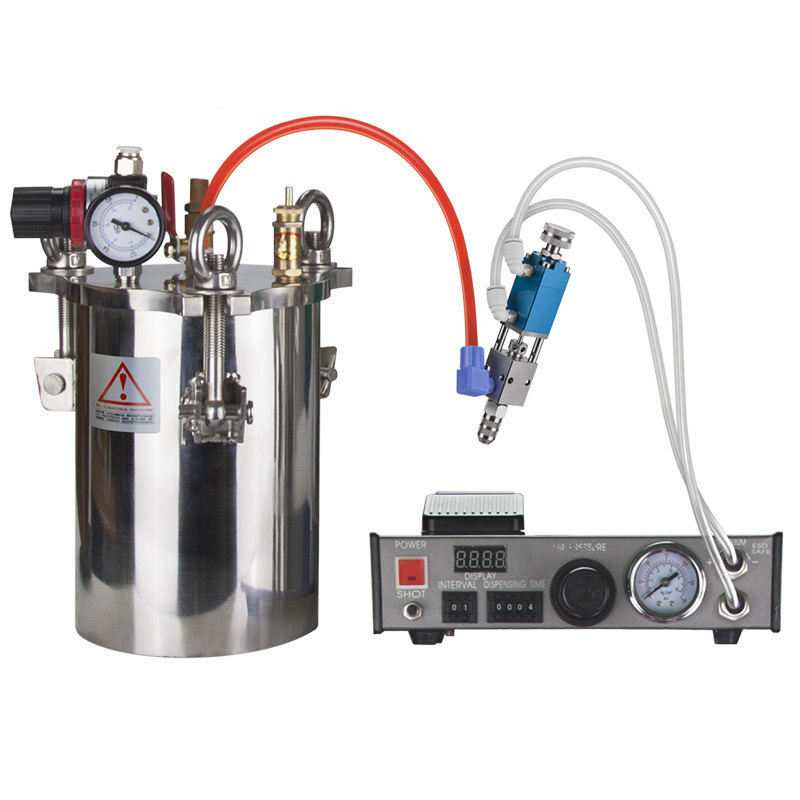

AB two-liquid dispenser is suitable for all kinds of AB glue, two-component or multi-component liquid, including AB glue, two-component glue, AB epoxy potting. Of course, for the ordinary pneumatic AB two-liquid dispenser, the consistency of A glue and B glue can not be too different, generally not more than 1:5, otherwise the glue is more difficult to mix evenly
1. power button: press the light on to open, the light off to off
2. Dispatch time display: Display setting time
3. output pressure regulator: first pull out, reverse the pressure is small, smooth to large pressure
4. barometer: display range is 0-100pSi
5. continued ourlet hole: the hanging valve continued to vent hole
6. tesing key: in debugging, can replace the use of foot switch
7. Interval time setting dialing key: Press the display setting time, adopt the addition and subtraction mode 0.1S-9.9S (automatic timing
8. Spit time dial key: display set time, using addition and subtraction 00.01S-99.99S (automatic timing)
9. control out the hole: connect the valve to control the intake hole
10. Foot switch: take off for the open, release off
11. pressure output: according to the connection clean high pressure source
12. Discharge method Programmer: 16 kinds of free to set the way out
13.Foot controller interface: Connect the foot switch
14.Power input socket
15.input voltage: 220V(+-10%) 50HZ
Application
Machine Parameter
|
Technical items
|
Technical parameter
|
|
Glue ratio
|
1:1-10:1 fixed ratio
|
|
1:1-10:1 fixed ratio
|
0.5-30g adjustable (there are certain differences according to the glue characteristics)
|
|
Glue filling accuracy
|
Glue amount ±1%, ratio: ±1%
|
|
Input air pressure range
|
0.4-0.8MPa
|
|
Head seal under pressure
|
MAX≤2.6Mpa
|
|
Glue volume and water viscosity
|
8000CPS
|
|
Operation method
|
automatic / manual
|
|
Glue volume proportional control
|
Pump body metering
|
|
Programmatically
|
Teach programming
|
|
Electric control system
|
Control screen (program setting, modification, storage, etc.)
|
|
Glue cut-off system
|
A, B glue independent instantaneous automatic suction system
|
|
Mixing system
|
High-speed brushless dynamic stirring device
|
|
A pump
|
Gear pump/screw pump
|
|
B pump
|
Gear pump/screw pump
|
|
AB glue mixing system
|
Optional
|
|
AB glue heating system
|
Optional
|
|
A plastic bucket capacity
|
Optional(1-50L)
|
|
B plastic bucket capacity
|
Optional(1-50L)
|
|
Washing bucket capacity
|
5L
|
