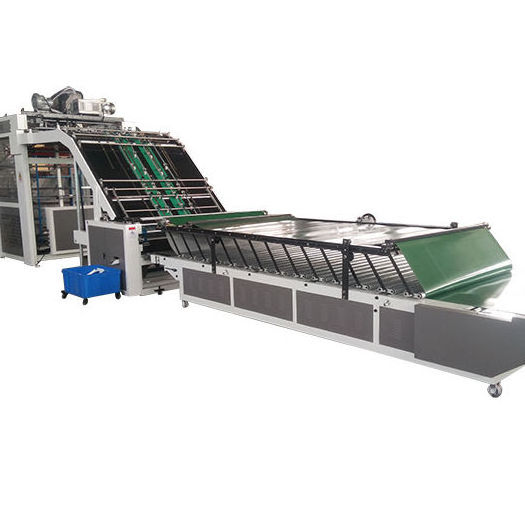

Automatic servo motor intelligent flute laminating machine/corrugated cardboard mounting machine/litho laminator

Automatic servo motor intelligent flute laminating machine/corrugated cardboard mounting machine/litho laminator

FOB Reference Price: Get Latest Price

≥1 Sets

US $23000

≥2 Sets

US $22500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V 50HZ

Place of Origin:: Hebei, China

Brand Name:: LUM

Dimension(L*W*H):: L1340*W1580*H1950mm

Weight:: 7500 KG

Name:: Corrugated cardboard fully Automatic Flute Laminator

economic speed:: 0-100 piece/min

precision:: +-1.5mm

power:: 10kw/12kw

weight:: about 6 t

Function:: High Efficiency

max size of cover face:: 1300*1100mm/1500*1100mm/1600*1250mm

mix. size of cover face:: 400*400mm

custom:: yes

Quick Details

Packaging Type:: Cartons, Stand-up Pouch, Film

Packaging Material:: Plastic, Metal, Wood

Driven Type:: Electric

Voltage:: 380V 50HZ

Place of Origin:: Hebei, China

Brand Name:: LUM

Dimension(L*W*H):: L1340*W1580*H1950mm

Weight:: 7500 KG

Name:: Corrugated cardboard fully Automatic Flute Laminator

economic speed:: 0-100 piece/min

precision:: +-1.5mm

power:: 10kw/12kw

weight:: about 6 t

Function:: High Efficiency

max size of cover face:: 1300*1100mm/1500*1100mm/1600*1250mm

mix. size of cover face:: 400*400mm

custom:: yes

Model	LUM-B 1300	LUM-B 1450	LUM-B 1550	LUM-B 1650
Max laminating size	1300 x1250mm	1400 x1250mm	1500 x1250mm	1600 x1250mm
Min laminating size	400 x400mm	400 x400mm	400 x400mm	400 x400mm
Economic speed	0-100sheets/min	0-100sheets/min	0-100sheets/min	0-100sheets/min
Laminating precision	±1.5mm
Power	10.0kw	12.0kw	12.0kw	12.0kw
Size	13.5x2 x2.4m	13.5x2.05x2.4m	13.5x2.15x2.4m	13.5x2.25x2.4m
Weight	About 4800kg	About 5000kg	About 5200kg	About 5400kg
Bottom paper thickness	A/B/C/E flute, 3/4/5 layer , less than 12mm thickness
Surface paper gram	150-600 g/m2

1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.

2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4.Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm
automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientifically, avoid glue fly out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's fluctuation, easy cleaning.

9.Counter designs scientifically, easy recording the amount you have been worked.

*All Models of Laminating Machine

Semi-auto flute laminating machine

Semi-auto flute laminating machine with elevated worktable s.

Automatic laminating machine

Production line show of 5ply in customers' workshop .

1. Q: Are you a factory or trading company?

A: We are manufacturer.

2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel

3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting

4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.

5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
