Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
AC Three Phase 380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VTOPS
-
Dimension(L*W*H):
-
800*800*1960mm
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Powder Auger Filling Machine
-
Filling Speed:
-
0-50 fills/min
-
Filled Error:
-
≤±1%
-
Customize:
-
Support
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Main Function:
-
Fill by Volume
-
Warranty Period:
-
1.5 Years
-
Manufacturing Experience:
-
Since 2001
Quick Details
-
Machinery Capacity:
-
4000BPH, Other, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood, Other
-
Filling Material:
-
Other, Powder
-
Filling Accuracy:
-
99%
-
Voltage:
-
AC Three Phase 380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VTOPS
-
Dimension(L*W*H):
-
800*800*1960mm
-
Weight:
-
200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
Powder Auger Filling Machine
-
Filling Speed:
-
0-50 fills/min
-
Filled Error:
-
≤±1%
-
Customize:
-
Support
-
Machine Material:
-
Food Grade Stainless Steel SUS 304
-
Main Function:
-
Fill by Volume
-
Warranty Period:
-
1.5 Years
-
Manufacturing Experience:
-
Since 2001
Products Description
High Precision Semi Automatic Filling Machine Powder Dosing Machines Dispensing Spice Equipment
Applicable to all kinds of powder and mixed powder-like material weighing filling, such as: fertilizers, additives, flour, milk
powder, coffee powder, washing powder, solid drink, sugar, monosodium glutamate, condiments (such as spicy fresh), natural flavoring , enzymes, feed powder (powder, superfine powder), mixing quantitative powder-like material filling.
powder, coffee powder, washing powder, solid drink, sugar, monosodium glutamate, condiments (such as spicy fresh), natural flavoring , enzymes, feed powder (powder, superfine powder), mixing quantitative powder-like material filling.
|
Brand:
|
VTOPS
|
|
Manufacturer:
|
Zhengzhou Vtops Machinery Co., Ltd.
|
|
Measurement Range:
|
5-5000g (Need different Augers and Auger Funnels)
|
|
Measurement Method:
|
Auger Filler
|
|
Filled Error:
|
≤ ±1%
|
|
Entrance Height:
|
1600 mm
|
|
Entrance Diameter:
|
150 mm
|
|
Nozzle Ground Clearance:
|
860 mm
|
|
Filling Speed:
|
0-50 fills/min
|
|
Contact Materials:
|
Food Grade SUS304 Stainless Steel
|
|
HMI:
|
LCD Touch Screen
|
|
Control System:
|
PLC
|
|
Filling Motor:
|
Stepper Motor
|
|
Monitorable Hopper:
|
Yes
|
|
Easy Clean Hopper:
|
Optional
|
|
Hopper Volume:
|
50L
|
|
Fill Control:
|
Timer based / Sensor based
|
|
Dimensions:
|
800× 800×1960mm
|
|
Power:
|
AC Three-Phase 380V 50Hz 1.5Kw
|
|
Machine Weight:
|
200 kgs
|
* Voltage is optional from AC Three-Phase 380V, AC Three-Phase 220V, AC Single-Phase 220V.

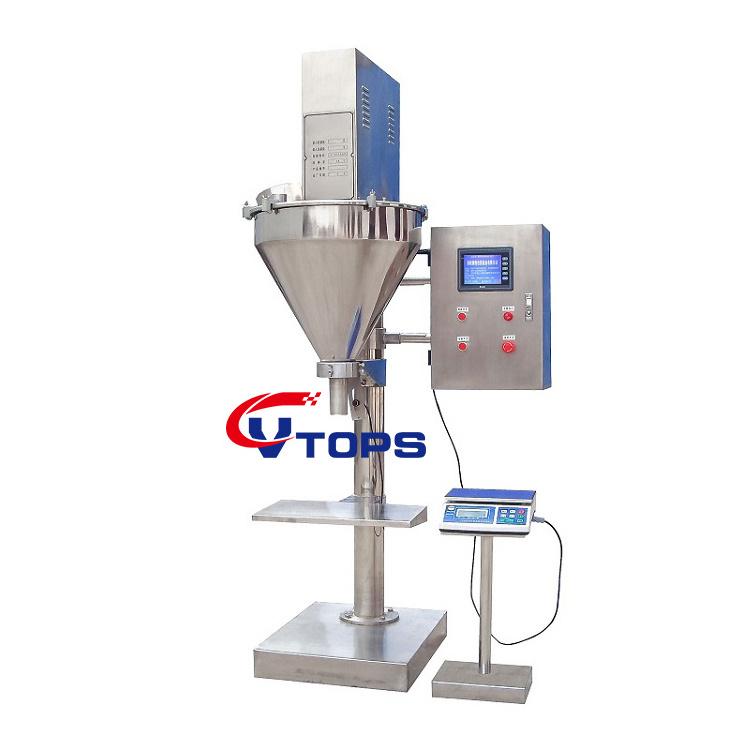

Semi-Auto Auger Powder Filling Machine:
1. Suitable for all kinds of bottles, cans and bags of quantitative filling. The containers is not restrict.
2. All stainless steel construction. And the contacted materials are 304 stainless steel.
3. The filling motor is stepper motor or imported servo motor, depending on the customer’s choice.
4. Photoelectric sensor control to fill materials, and pedal switch for filling is optional.
5. Feedback value is adjustable to meet a variety of requirements of precision.
6. The filling motor speed is adjustable to meet the requirements of various materials.
7. Alarm and automatic correcting error.
8. Filling weight is adjuatablt from 5 grams to 5000 grams. Please refer to the small-dose auger filling machine if your filling weight less than 5 grams.
9. Less land occupation.
10. Together with screw conveyor feeder to achieve automatic materials level control.
Net Weigh Auger Filler Equipped Clamp Hold Device:
Net Weigh Auger Filler Equipped Weighing Table:
Equipped with Addtional Free Flowing Device:
Equipped with Addtional Dust Removal:
