Synchronous belt drive: imported synchronous belt, maintenance-free, accurate, stable and noiseless.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
15KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUKES
-
Dimension(L*W*H):
-
12700*2300*2655mm
-
Weight:
-
5000 KG
-
Product name:
-
Automatic Flute Laminating Machine
-
Model:
-
LKS1450L
-
Max. sheet size (W*L):
-
1400mm*1450mm
-
Min. sheet size (W*L):
-
400mm*380mm
-
Top sheet:
-
150-450g/㎡ 150-450g/m
-
Bottom sheet:
-
0.5-10mm(B,A,AB,E flute,etc.)
-
Laminating accuracy:
-
±1.5mm
-
Max.speed:
-
8000p/h
-
Power:
-
15KW
-
Dimension L*W*H:
-
12700mm*2300mm*2655mm
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Corrugated Paper
-
Driven Type:
-
Pneumatic
-
Voltage:
-
15KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUKES
-
Dimension(L*W*H):
-
12700*2300*2655mm
-
Weight:
-
5000 KG
-
Product name:
-
Automatic Flute Laminating Machine
-
Model:
-
LKS1450L
-
Max. sheet size (W*L):
-
1400mm*1450mm
-
Min. sheet size (W*L):
-
400mm*380mm
-
Top sheet:
-
150-450g/㎡ 150-450g/m
-
Bottom sheet:
-
0.5-10mm(B,A,AB,E flute,etc.)
-
Laminating accuracy:
-
±1.5mm
-
Max.speed:
-
8000p/h
-
Power:
-
15KW
-
Dimension L*W*H:
-
12700mm*2300mm*2655mm

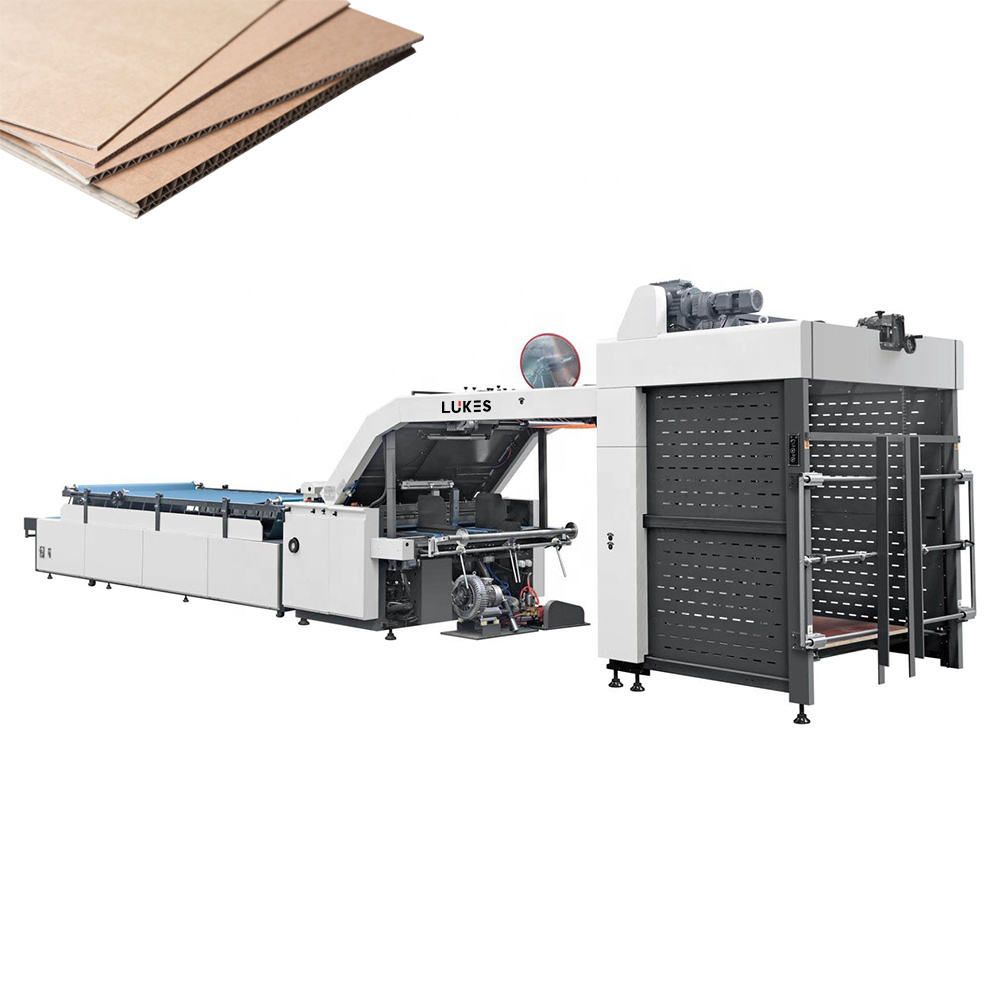

1650 Full Automatic Flute Laminating Machine/corrugated Carton Lamination Machine/high Speed Litho Flute Laminator
Automatic Flute Laminating Machine
Suction floating feeding paper, accurate running balance. Photoelectric control to avoid single - sheet walking. The machine adopts the prepush position : the paper and corrugated fit error range is ±1.5mm.
|
Model
|
LKS1450L
|
LKS1650L
|
|
|
Max. sheet size (W*L)
|
1400mm*1450mm
|
1400mm*1650mm
|
|
|
Min. sheet size (W*L)
|
400mm*380mm
|
|
|
|
Top sheet
|
150-450g/㎡
|
|
|
|
Bottom sheet
|
0.5-10mm(B,A,AB,E flute,etc.)
|
|
|
|
Laminating accuracy
|
±1.5mm
|
|
|
|
Max.speed
|
8000p/h
|
|
|
|
Power
|
15KW
|
|
|
|
Dimension L*W*H
|
12700mm*2300mm*2655mm
|
12700mm*2450mm*2655mm
|
|
|
Height of bottom paper
|
400mm
|
|
|
|
Height of top paper
|
1800mm
|
|
|
|
Weights
|
5000KG
|
5700KG
|
|
Production Precess:
1. Top sheet feeding&Bottom sheet feeding
2.
Gluing on bottom sheet
3.
Laminating top and bottom
4.
Pressing
5.
Sheet collection
1. Front gauge high speed flute 8000 piece per hour.
2. The machine adopts unique pressure spring front gauge design, which effectively reduces mechanical failure rate and ensures accurate positioning with intelligent control.
3. The machine adopts frequency conversion to regulate speed. PLC centralized control, module conversion, operation control standard.
4. Double servo control is adopted to realize the timeliness and accuracy of the base paper to the front gauge, so as to ensure the accuracy of the machine under the operating condition.
5. After balancing treatment and testing. the steel roller, coupled with the tightening assembly process, effectively improves the mechanical stability. In addition, when the main transmission is driven by the timing belt, the bottom paper part directly absorbs the air and delivers the paper, effectively improving the operating accuracy and speed of the machine.
6. Adopt the page control system to automatically recycle the glue, which greatly reduces the labor intensity.
7. The machine adopts all ISO9001 standard inspection of materials, with high quality and solid durability. Key parts such as bearings are imported.
8.
Independently develop a powerful FEIDA paper with precoded paper device to reduce downtime and improve work efficiency.
