H.265 H.264 8 Channel HD Encoder

FOB Reference Price: Get Latest Price

≥2 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Input:: 24*HD-MI, 2*ASI

Output:: IP, 2*ASI

Video encoding:: H.264/HEVC/H.265

Audio encoding:: MPEG-1 Layer 2, AAC

Protocol:: UDP/RTP Unicast Multicast

Application:: Digital TV Head-end System

Product name:: H265 HD Encoder

Keyword:: HDMI-Encoder

IP Channels:: 512 SPTS and 8 MPTS

Service:: Online Support

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Dibvision

Model Number:: Q708

Input:: 24*HD-MI, 2*ASI

Output:: IP, 2*ASI

Video encoding:: H.264/HEVC/H.265

Audio encoding:: MPEG-1 Layer 2, AAC

Protocol:: UDP/RTP Unicast Multicast

Application:: Digital TV Head-end System

Product name:: H265 HD Encoder

Keyword:: HDMI-Encoder

IP Channels:: 512 SPTS and 8 MPTS

Service:: Online Support

Features

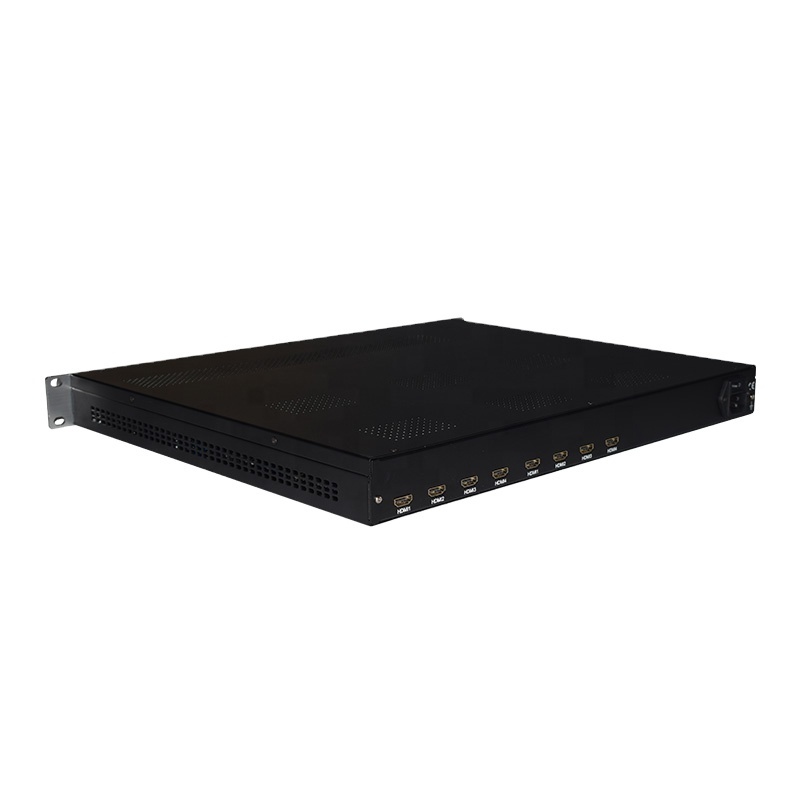

H.265 H.264 8 Channel HDMI-Encoder

Distribute Up to 8/12/16/20/24 channels of HD content over RF (DVB-T/DVB-C/DTMB/ISDB-T/ATSC) to an unlimited number of TVs
Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation, 4*Carrier RF Out, 8/16*carrier RF out (option) (16/32*carriers DVBC QAM output optional)
In modulation Mode, support 128*IP input
H.264/H.265 video encoding format
Two separate ASI input for External TS Multiplexing
Simulaneously MPTS and SPTS over UDP/RTP IP out
Audio encoding: MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1, AAC-HE v2
Audio gain adjustment supported
4 separate multiplexing and Up-converter modulating adjacent carrier out
Selectable the Value of PCR PID same as Video PID
CBR mode supported
Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel
Support TTL editing
LCN (Logical Channel Number) support
PSI/SI editing & inserting
PID Remapping & Filtering
Support PCR correct and PCR interval adjusting
Easy-to-Use System Management via Web
passed the EU CE&RoHS certification

Highlights

Works both Coax Cable & IPTV networks: Distribute MPEG-4 AVC/HEVC/H.265 encoding to all kinds of Modulation and All SPTS/ MPTS Over UDP IP out.
Operation via LCD Screen and Web Management : easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.
Multi-Modulation: Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation (can selectable in one device).
Flexible selection of different input modules: four tuner, four HD encoding in one device.

Specification

Encoder Part
HD-MI inputs
Numbers of Boards	4 HD-MI ( 1.4a HDCP) ports per module Up to 6 Modules in Back panel
Numbers of Ports	8; 12; 16; 20; 24 Channels
DVB-ASI inputs
Connector	BNC female, 75Ω
Signal Level	200-800mVp-p
Packet Length	188 bytes
Maximum bit-rate per port	≤100Mbps
Number of Input Ports	Dual separate ASI ports
Video Processing
Input Resolution	1920×1080@60P/59.94P, 1920×1080@60i/59.94i, 1920×1080@50P, 1920×1080@50i, 1280×720@60P/59.94P, 1280×720@50P 720×576@50i,720×480@60i
Output Resolution	1920×1080@60/50/30/25P, 1280×720@60/30/25P, 720×576@25P,720×480@25P
Encoding	H.265/MPEG-4 AVC/H.264
Bit-rate	1Mbps~13Mbps
Rate Control	CBR
GOP Structure	IPPPP (P Frame adjustment, without B Frame ) Select to configure Logo, Caption and QR Coder in any Position of Video Picture
Audio Processing
Encoding	MPEG-1 Layer 2, Optional: AAC-LC, AAC-HE v1(SBR), AAC-HE v2(SBR+PS),
Sampling rate	48KHz
Resolution	24-bit
Bit-rate	64kbps, 128Kbps, 192kbps, 224kbps,256kbps, 320kbps, 384kbps
Audio Gain	0-255
Multiplexing
Maximum PID Remapping 180 input per channel
PID remapping by automatically or manually
PSI/SI	SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting
Max Numbers	7 Group 4 RF output (4 RF can Separate mux) in modulation mode 1 IP (MPTS) out ( Separate modulation channels or MTPS channels mux out)
Stream Output
DVB-ASI	2 Separate ASI, (Select from modulation Channels or MPTS channel) 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9)
RJ45 Port	100/1000M GbE Port Simultaneous output with NSPTS (from HD MI channels) and 1MPTS ( modulation or MPTS channels) (Note: In modulation, 4RF support 1MPTS&128SPTS / 8RF support 8MPTS&512SPTS) MPEG-2 TS over UDP, unicast, and multicast streaming MPEG-2 TS over RTP/RTSP Configurable packet size(2-7)x188Bytes Filter Null Packet
Total Bitrate	1-200Mbps (Should be More than Encoding bitrate)
Modulation Part
Connector	1 Port, F-Type, 75
Output Return Loss	14 dB
MER	≥40dB
RF output level	-24 ~ -10dbm,0.1db step
RF frequency	50-860Mhz, 1KHz step Frequency difference range (0-40M)
Numbers of RF Channe	4, 8/16(optional), 32(optional)
Modulation Mode	4/16/32DVB-C, 4/8/16DVB-T, 4/8/16ATSC, 4/8/16 ISDB-T, 4/8/16*DTMB
DVB-T Standard	EN300744
FFT mode	2K, 8K (4 RF mode only support 2K)
Bandwidth	6M, 7M, 8M
Constellation	QPSK, 16QAM, 64QAM
Guard Interval	1/4, 1/8, 1/16, 1/32
FEC	1/2, 2/3, 3/4, 5/6, 7/8
DVB-C Standard J83.A (DVB-C, J83.B, J83.C
Carrier	ANNEX A	Annex B		Annex C
Constellation(QAM)	16,32,64,128, 256	64	256	64/256
Bandwidth(Mhz)	8	6	6	6
Symbol Rate(Mbaud)	5-7	5.057	5.361	4.2-5.3
ISDB-T Standard	ARIB STD-B31
Constellation	DQPSK, QPSK, 16QAM, 64QAM
Guard Interval	1/32, 1/16, 1/8, 1/4
Transmission Mode	2K, 4K, 8K (4 RF mode only support 2K)
Guard Interval	1/32, 1/16, 1/8, 1/4
Code rate	1/2, 3/4, 5/6, 7/8
BandWidth	6Mhz
ATSC Standard 6Mhz	ATSC A/53
Constellation	8 VSB
DTMB Standard	GB20600-2006
Constellation	4QAM, 16QAM, 32QAM, 64QAM
Code rate	0.4, 0.6, 0.8
Guard Interval	420, 595, 945
System
Local interface	LCD + control buttons
Remote management	We b/NMS
NMS interface	RJ45, 100M
Language	English
Environment
Voltage range	100 to 120/200 to 240V AC ±10%; 50/60Hz
Power consumption	60W
Operation Temperature	0 ~ 45℃
Storage Temperature	-20 ~ 80℃
Dimensions	482mm (L) * 380mm (W) * 44mm (H)
Weight	4.5 kg
