Product Description of Wet shotcrete machine

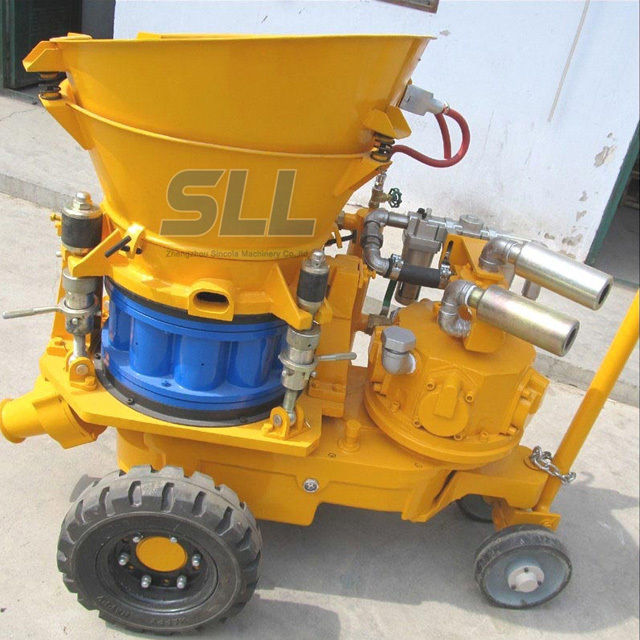

Gunite, also known as "dry process shotcrete", uses a different process than wet process shotcrete. Gunite machines use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.

Features of wet shotcrete machine

1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .

4.Low pressure and low speed wortex air transport.

5.Well compact and seal, small dust, durable rubber plate.

6.Apply to steel fiber or chemical fiber concrete spraying.

SPZ-5 C o ncrete guinite machine Advantages

1.The power system is consisted by technical diesel engine or electrical engine. It can drive the pumping system directely which samplized the linkage structure and improved the efficiency. Strong power system reduced the rate of occuring faults;
2.The main hydraulic pump and valve group of hydraulic system is adopted Gemany Rexroth open-style system with accurate and reliable exchanging;
3.The elements of electrical controlling system is adopted Japan and Gemany's original parts.The excellent assembly quality fully guaranteed the function of electrical controlling system;
4.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete;
5.The Intelligentize & hommization design,easy to care and operate;
6.The specific configuration can be changed according to client's situation.

Applications Of SPZ-5 gunite machine

1. Used for dry mix concrete spraying operation.
2. Shotcrete for Civil Underground Foundation , Express-Way Construction, Railway Construction;
3. The Concrete shotcrete machine shotcretes for building surface;
4. Shotcrete for Tunneling , Mining ,Hydropower Project;
5. Shotcrete for Slope Stabilization.

For example, build up the swimming pool.

FAQ

1.How much is the output of SPZ-5 Concrete Dry Mix Shotcrete Machine?

Output :5 m3/h

2. Is the voltage of the SPZ-5 Concrete shotcrete machine variable?

Acceptable

3. How much is Max.Aggregate.size ?

20mm

4. Can be used to build a swimming pool, etc.?

Sure

5. What is SPZ-5 Concrete shotcrete machine used for ?

mining,tunnel lining,channel lining,culvert,subway,seismic rehab,specialty projects,hydropower,engineering,etc

6. What is advantage of SPZ-5 Concrete Dry Mix Shotcrete Machine ?

High quality, high efficiency, environmental protection
