Quick Details
-
Brand Name:
-
NAPCO
-
Model Number:
-
NAP8200E
-
Recommended Users:
-
Jewelry Shops & Manufacturers, Precious Metal Refineries, Banks, etc
-
Working Principle:
-
Energy Dispersive X-ray Fluorescence
-
Usage:
-
Au, Ag, Cu, Pt, Pd, Ir,Cd,ect.
-
Spectrometer Size(mm):
-
670*400*330
-
N/G Weight:
-
33 / 45kg
-
Precision:
-
±10ppm~0.2%
-
Detector:
-
Gas Proportional Detector
-
Power supply:
-
220V
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NAPCO
-
Model Number:
-
NAP8200E
-
Recommended Users:
-
Jewelry Shops & Manufacturers, Precious Metal Refineries, Banks, etc
-
Working Principle:
-
Energy Dispersive X-ray Fluorescence
-
Usage:
-
Au, Ag, Cu, Pt, Pd, Ir,Cd,ect.
-
Spectrometer Size(mm):
-
670*400*330
-
N/G Weight:
-
33 / 45kg
-
Precision:
-
±10ppm~0.2%
-
Detector:
-
Gas Proportional Detector
-
Power supply:
-
220V

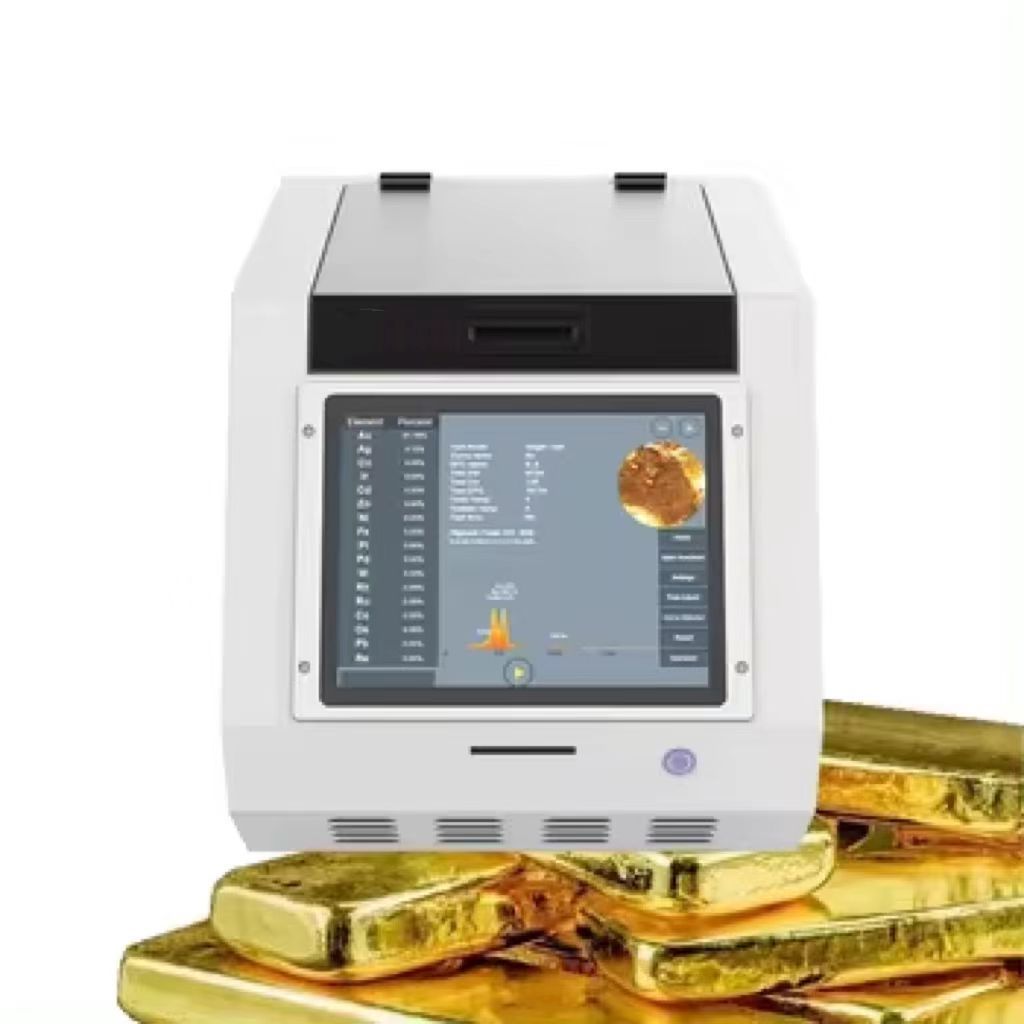

NAP8200E Gold Tester
Description:
The new advanced gold XRF testing machine is the ultimate verification instrument for gold,silver,platinum and palladium testing. This state-of-the-art tester has exceptional precision and nondestructive .It is simple to use and in seconds provides accurate results showing both the digital karat value and percentages of all metals in the sample.
Function:
· Tests all colors of gold from 1% to 99.99% and silver,platinum and palladium
· Hand-tough display shows both karat value and all percentages do metals
· Easy one-step calibration using pure silver
· Easy and safe to operate it(don ' t need any professional person)
· All data could be stored in the computer
· Reports can be printed out with A4/A5 and label form
· Follow easy steps to identify non-gold and plated gold
| This gold tester is integrated an industrial computer with industrial motherboard & multi-point hand touch. Providing best operation experience. It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection.Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability. Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely. |
Benefits:
|
|
| X-ray fluorescence analysis surpasses the rest of analytical methods in terms of speed, accuracy, and simplicity. It's a non-destructive method, in which analysis is targeted at the spot of interest. The diameter of an analytical spot can be easily changed. | |
Recommended Users:
Jewelry Shops, Jewelry Manufacturers, Precious Metal Refineries, Pawn shops, Banks, Laboratories, Universities, Q uality Inspection bureaus and basically any place that deals with gold or precious metals.
Specifications :
| Working Principle: | Energy Dispersive X-ray Fluorescence |
| Size(mm): | 670*400*330 |
| Detection limit: | 100ppm Best substance effect |
| Precision: | ±10ppm~0.2% |
| Expanded Uncertainty: | ≤0.36% |
| Operating Environment: | Temperature 0-28℃ |
| Humidity ≤70% | |
| High Voltage: | 0~50KV/0~1MA |
| Detector: | Gas Proportional Detector |
| Testable Elements: | Au, Ag, Cu, Pt, Pd, Ir,Cd,ect. |
| Hardware: | Integrated PC with touch screen, Wireless LAN, USB interfaces, HD camera |
| Main Structure: | High-strength metal frame and industry plastic shell |
| N/G Weight(KG): | 33 / 45 |
Packing Size: 400 * 430 * 350(mm)
Packaging Details: Standard Export Wooden Box Packing, Filling with soft foam
Shipping Methods: CIF (Air Cargo & Sea Cargo) , DDP ( DHL, FedEx, EMS, TNT, UPS, etc.)
