- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
17
-
Weight (KG):
-
1200
-
Product name:
-
Automatic Metal Polishing deburring Machine
-
Application:
-
laser cutting/plasma cutting parts
-
Usage:
-
Workpieces Surface Deburring Polishing
-
Keyword:
-
Metal Polishing Machine Used
-
Function:
-
deburring
-
Processing Width:
-
600mm/1000mm/1600mm
-
Application material:
-
Machined Parts
-
Polishing material:
-
abrasive belt. brush wheel
-
Polishing work piece material:
-
metal, stainless steel, aluminum,copper
-
Other:
-
OEM/ODM/Oversea after-sales support
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JOTUN
-
Marketing Type:
-
Hot Product 2024
-
Power (kW):
-
17
-
Weight (KG):
-
1200
-
Product name:
-
Automatic Metal Polishing deburring Machine
-
Application:
-
laser cutting/plasma cutting parts
-
Usage:
-
Workpieces Surface Deburring Polishing
-
Keyword:
-
Metal Polishing Machine Used
-
Function:
-
deburring
-
Processing Width:
-
600mm/1000mm/1600mm
-
Application material:
-
Machined Parts
-
Polishing material:
-
abrasive belt. brush wheel
-
Polishing work piece material:
-
metal, stainless steel, aluminum,copper
-
Other:
-
OEM/ODM/Oversea after-sales support
Products Description

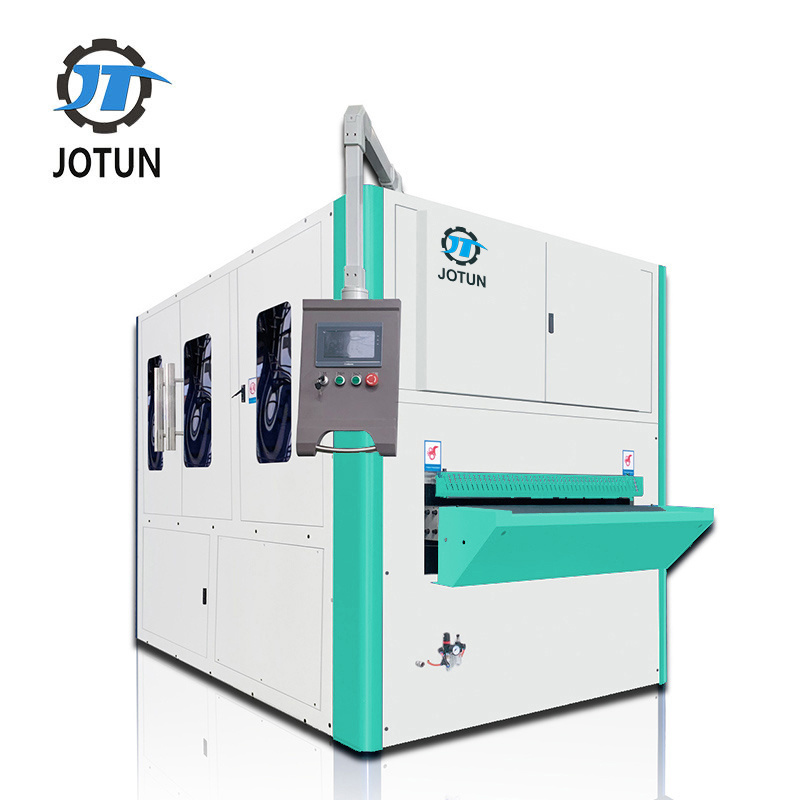

JT-SDJ Metal Sheet Surface Polishing Grinding Deburring Machine
This machine is an integrated device with dual abrasive belt deburring functions.
This equipment is suitable for carbon steel plate, stainless steel plate, copper plate, etc.,
Adjust the corresponding grinding parameters and select the appropriate abrasive according to the different surface requirements
of the workpiece.
This equipment is suitable for carbon steel plate, stainless steel plate, copper plate, etc.,
Adjust the corresponding grinding parameters and select the appropriate abrasive according to the different surface requirements
of the workpiece.
1.Surface brushing to remove slag function
2.Belt automatic deviation correction function
3.High temperature wear-resistant and anti-damping conveyor belt
Product Parameters
|
Model
|
JT-SDJ
|
|
|
|
|||
|
Processing min width
|
30mm
|
|
|
|
|||
|
Processing thickness
|
0.5-80mm
|
|
|
|
|||
|
Worktable height
|
760-980mm
|
|
|
|
|||
|
Feeding speed
|
0.5-6m/min
|
|
|
|
|||
|
Brush speed
|
8-12r/s
|
|
|
|
|||
|
Function
|
Brushing, polishing, deburring, rust removal,Chamfering
|
|
|
|
|||
|
Additional configuration
|
Wet polishing + adsorption fan (according to customer require)
|
|
|
|
|||
|
Nothed
|
Our products all Non-Standard Customization(the above data for reference only)
|
|
|
|
|||
|
|
600mm
|
800mm
|
1000mm
|
1600mm
|
|
Processing width
|
650mm
|
850mm
|
1050mm
|
1650mm
|
|
Abrasive belt size
|
1900*650mm
|
1900*850mm
|
2200*1050mm
|
2200*1650mm
|
|
Abraseive belt motor power
|
7.5KW*2
|
7.5KW*2
|
11KW*2
|
30KW*2
|
|
Sanding belt + Universal rollers
|
/
|
7.5KW+2.2KW*2
|
11KW+2.2KW*3
|
30KW+2.2KW*4
|
|
Conveying motor power
|
1.5KW
|
1.5KW
|
1.5KW
|
3KW
|
|
Lift Motor Power
|
0.37KW
|
0.37KW
|
0.75KW
|
1.1KW
|
|
Machine size
|
1920*1200*2100 mm
|
1920*1400*2100 mm
|
2100*1700*2100 mm
|
2500*1700*2100 mm
|
|
Machine weight
|
1300kgs
|
1400kgs
|
1600kgs
|
3500kgs
|
