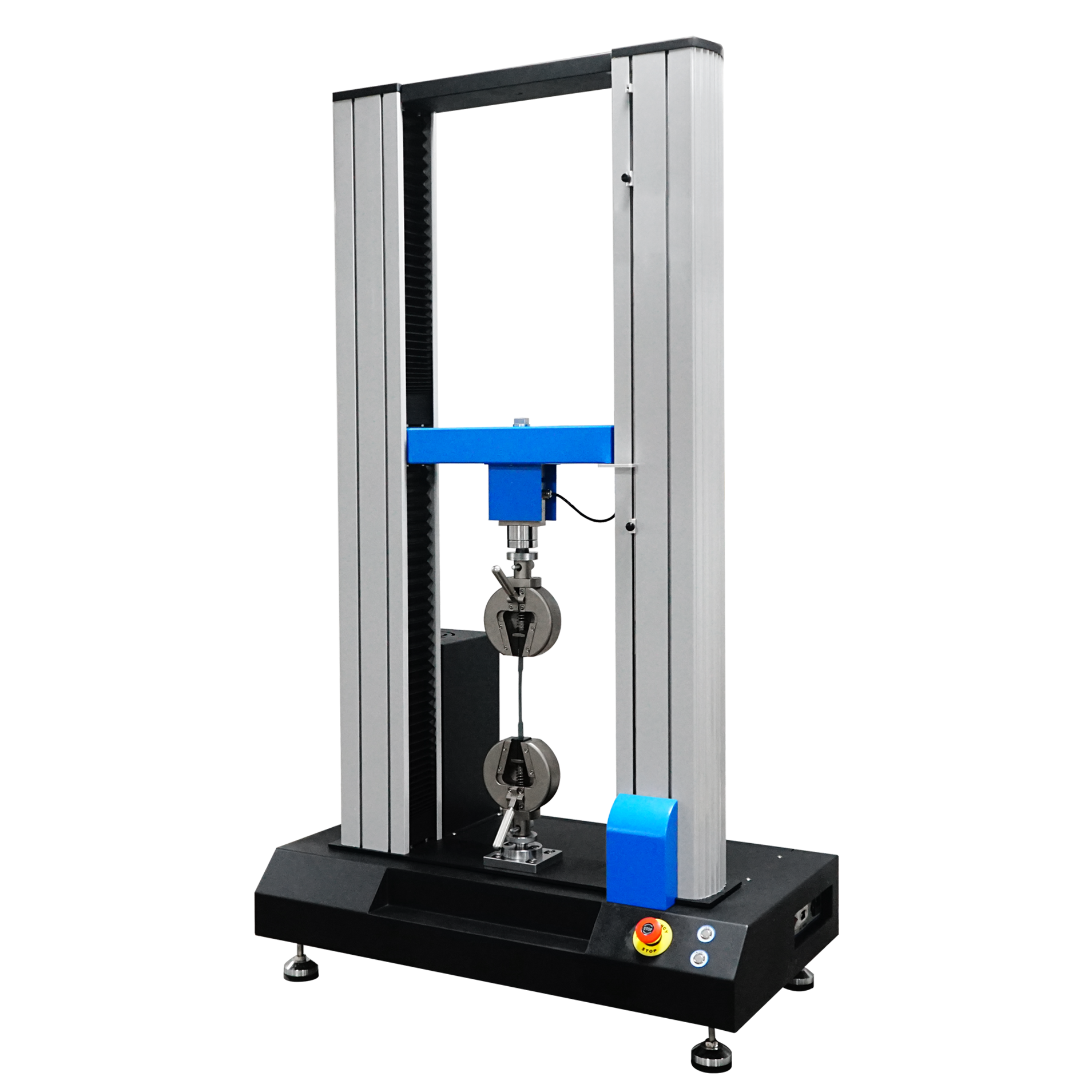

Computerized Double Column Tensile Testing Machine
is used to test the mechanical properties of various materials such as static load, tensile, compression, bending,shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel,fiberglass and other materials are developed for materials.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Haida
-
Model Number:
-
HD-B604B-S
-
Frame capacity:
-
2000kg
-
Load cell brand:
-
Germany brand load cell for high accuracy, 2000kg (500,1000kg are opti
-
Load accuracy:
-
0.5% F.S
-
Control system:
-
PC with windows 7 system
-
Motor:
-
Panasonic servo motor w/AC variable speed drive system
-
Force reading:
-
kgf, Ibf, N, KN, T etc
-
Vertical test space:
-
1200mm including fixture
-
Horizontal test space:
-
≤400mm
-
Test speed:
-
0.1~500mm/min (adjustable)
-
Curves display:
-
Load- elongation, Elongation-time, Time-elongation, Stress-strain
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Haida
-
Model Number:
-
HD-B604B-S
-
Frame capacity:
-
2000kg
-
Load cell brand:
-
Germany brand load cell for high accuracy, 2000kg (500,1000kg are opti
-
Load accuracy:
-
0.5% F.S
-
Control system:
-
PC with windows 7 system
-
Motor:
-
Panasonic servo motor w/AC variable speed drive system
-
Force reading:
-
kgf, Ibf, N, KN, T etc
-
Vertical test space:
-
1200mm including fixture
-
Horizontal test space:
-
≤400mm
-
Test speed:
-
0.1~500mm/min (adjustable)
-
Curves display:
-
Load- elongation, Elongation-time, Time-elongation, Stress-strain
Product Description
Specification
|
Frame capacity
|
2000kg
|
|
Load cell brand
|
Germany brand load cell for high accuracy,
2000kg (500,1000kg are optional) |
|
Load accuracy
|
0.5% F.S
|
|
Control system
|
PC with windows 7 system
|
|
Motor
|
Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
|
|
Force reading
|
kgf, Ibf, N, KN, T etc
|
|
Vertical test space
|
1200mm including fixture
|
|
Horizontal test space
|
≤400mm
|
|
Test speed
|
0.1~500mm/min (adjustable)
|
|
Software
|
TM 2101
|
|
Curves display
|
Load- elongation, Elongation-time, Time-elongation, Stress-strain
|
|
Data display
|
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
|
|
Safety features
|
E-Stop
Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Applications:
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.
Customized Fixtures
Haida can provide a variety of fixtures customization services to meet all customers testing needs
