Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine
Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine
Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine
Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine
Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine
Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine
Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine
Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine

Bodor Economical AT Series Stamping and laser cutting system CNC die punching machine board and tube fiber laser cutting machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $70000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Cutting Area:
3000*1500mm
Cutting Thickness:
0-25mm
Control Software:
Bodor
Place of Origin:
Shandong, China
Brand Name:
Bodor
Weight (KG):
3600 KG
Core Components:
Laser Header, Laser Source, Control System
Laser power:
1000W/2000W
Positionig accuracy:
0.03mm
Continuous working time:
24 hours
Tube Diameter:
15mm ~ 200mm
Max.cutting speed:
35m/min

Quick Details

Laser Type:
Fiber Laser
Cooling Mode:
WATER COOLING
Control System Brand:
bodor
Cutting Area:
3000*1500mm
Cutting Thickness:
0-25mm
Control Software:
Bodor
Place of Origin:
Shandong, China
Brand Name:
Bodor
Weight (KG):
3600 KG
Core Components:
Laser Header, Laser Source, Control System
Laser power:
1000W/2000W
Positionig accuracy:
0.03mm
Continuous working time:
24 hours
Tube Diameter:
15mm ~ 200mm
Max.cutting speed:
35m/min
Marketing Campaign
5-year warranty offer
When purchasing a new Bodor laser
cutting machine, you can enjoy the exclusive 5-year warranty for our Bodor laser core parts (laser source BodorPower, laser head
BodorGenius, control system BodorThinker).

Safeguarding your metal cutting success
A reliable and valuable warranty gives your metal cutting process and business a promise of long-term succes. That's why we want
to help you protect your investment and ensure your productivity by extending the warranty for you.

Product Overview

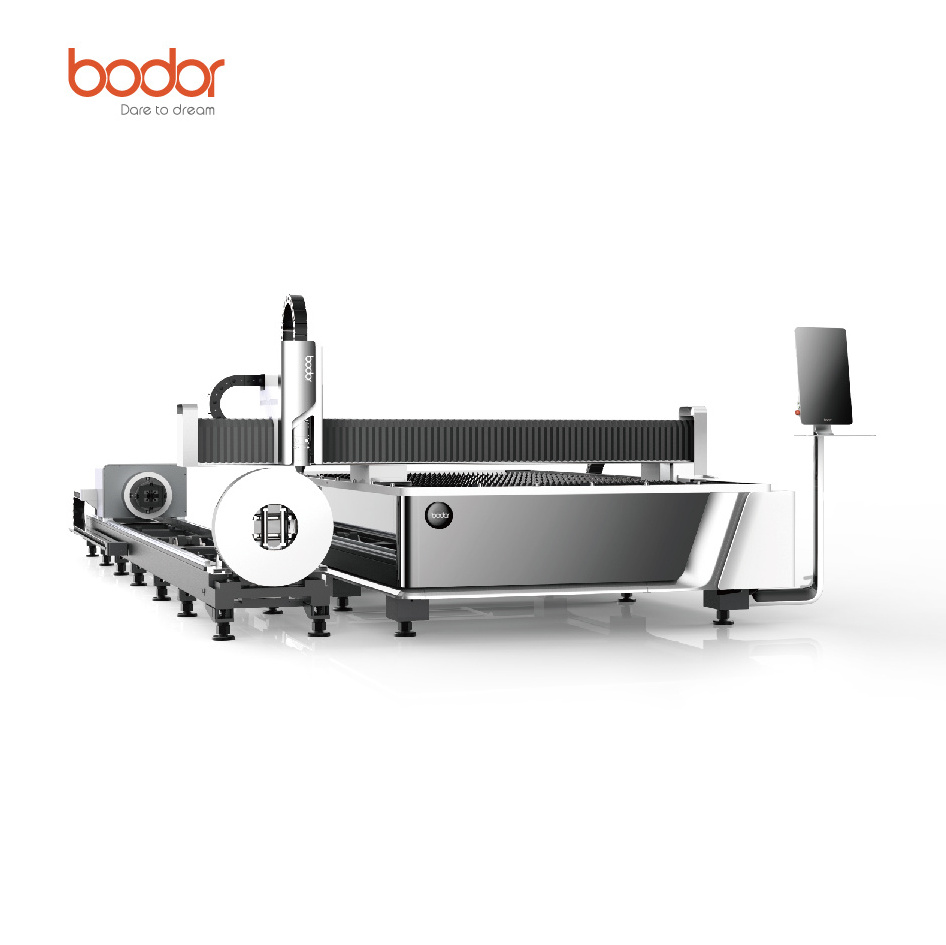

Entry-level fiber laser metal sheet&tube cutting machine

One machine with two uses. AT series cuts both metal sheets and metal tubes.
Stretching Aluminum Crossbeam
Ultra-high-pressure stretching process and lightweight design;
Rigidity increases by 60% ;
Weight goes down by 20%;
Laser cutter running speed increases by 50%
Modular Table
The modular cutting machine table with stiffeners saves time for disassambly and improves convenience and rigidity.
Penumatic Chuck
Cutting machine clamping becomes convenient, easy and fast, with 3 seconds at the soonest to clamp and high repeat precision
Expert High Speed Cutting Database
Fast air cutting efficiency increases by 37% when cutting carbon steel.
Active Anti-collision Function
Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter.
No Quiver when Cutting Thin Sheet
The cutting process works even at the edge of thin sheets, and ensures no chatter marks.
Angle Steel and Channel Steel Cutting
Angle steel and channel steel cutting are standard with no need fior additional installation.
PRODUCT SPECIFICATIONS
Model
A6T Plus
A6T
A4T
A3T
Working Area
6100mm*2500mm
6100mm*1524mm
4000mm*1524mm
3048mm*1524mm
Laser Output Power
6000W / 3000W / 1500W
Positioning accuracy
±0.05mm/m
Repositioning accuracy
±0.03mm
Max. linkage speed
100m/min
Max. acceleration
1.5G
PRODUCT CONFIGURATION
Six-in-one laser technology full ecology
Fully self-devloped BodorThinker control system, BodorNest nesting software, BodorGenius laser head and BodorPower laser source matched with MES system and Bodordrive drive system, enabling stable operation of the machine, with premium quaility cuts and incredible working efficiency.
SALES AND SERVICE NETWORK
Cutting Samples
Applicable to cutting carbon steel, stainless steel, aluminum, copper, alloy metals, etc.

Company Introduction
International Brand, European Quality, Intelligent Manufacturing in China

Title goes here.

Founded in 2008, Bodor Inc. is an international intelligent and automated laser cutting and welding solution provider for automobiles, aviation, medical care, electronics, metal processing, and various industries. With more than 3,000 employees worldwide, including 300+ dedicated to R&D, its service scope spans over 180 countries and regions. The global service centers and engineers provide customers with 24/7 timely support, maintaining long-term and stable partnerships with a variety of manufacturing enterprises. Bodor has launched more than 100 laser products covering the power range from 1.5kW to 60kW, including sheets, tubes, coils, sheet-and-tube integrated laser cutting machines, laser welders, and automation devices.
Bodor offers flagship machines with ultra-high configuration, speed, and precision, high-performance machines that lead the development of the industry, and economical machines with high quality, high performance, high security, and great experience.

Super Factory, International Quality

The white floor & the largest monomer laser cutting equipment production workshop in the world (30,000 square meters); Production
meets the European standards and international quality control, obtains certificates such as CE/ISO9001/SGS etc.
Listed company, serving the world
(Offering more than 150 countries and regions)
