Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5910x2268x3760mm
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0CBM
-
Marketing Type:
-
New Product 2023
-
Product Name:
-
Multi Use Wheel Loader with Backhoe Excavator
-
loader bucket capacity:
-
1.0CBM
-
excavator bucket capacity:
-
0.3CBM
-
Dimensions (L x W x H):
-
6230x2250x3795mm
-
Operating weight:
-
7600kg
-
Rated power:
-
60kw
-
keyword:
-
backhoe loader
-
Service:
-
Free spare parts
-
Wheel Base:
-
2250mm
Quick Details
-
Engine Brand:
-
YUCHAI
-
Power:
-
75 KW
-
Brand Name:
-
MAP
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
5910x2268x3760mm
-
Machine Weight:
-
8200 kg
-
Bucket capacity:
-
1.0CBM
-
Marketing Type:
-
New Product 2023
-
Product Name:
-
Multi Use Wheel Loader with Backhoe Excavator
-
loader bucket capacity:
-
1.0CBM
-
excavator bucket capacity:
-
0.3CBM
-
Dimensions (L x W x H):
-
6230x2250x3795mm
-
Operating weight:
-
7600kg
-
Rated power:
-
60kw
-
keyword:
-
backhoe loader
-
Service:
-
Free spare parts
-
Wheel Base:
-
2250mm

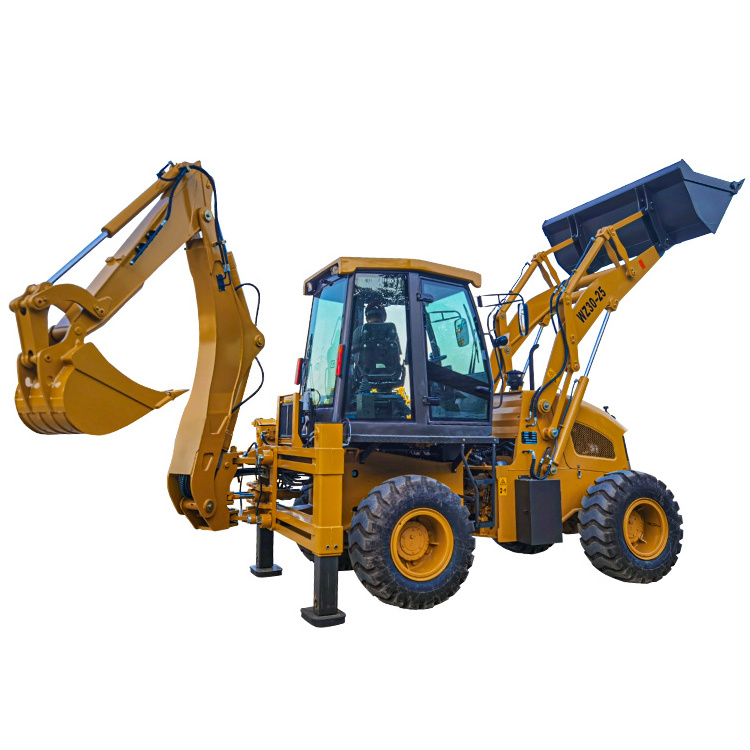

WZ30-25 Backhoe Loader
3. E nlarge operator cabin with secure glass and wide range of view , comfortable steering wheel, high quality adjustable seat and full hydraulic joystick control
Easy to operate!
Product Description
|
1.0 DIMENSION |
|
|
1) Rated loader bucket capacity |
1.0m3 |
|
2) Rated excavator bucket capacity |
0.3 m3 |
|
3) Operating weight |
7600KG |
|
4) Dimensions (L x W x H) |
5900X2340X3750mm |
|
5) Wheel base |
2250mm |
|
6) Cab roof height |
2790mm |
|
7) Minimum ground clearance |
310mm |
|
8) Bucket indicator |
Yes |
|
2.0 ENGINE |
|
|
1) Engine model |
YC4A105Z-T20 7 |
|
2) Type |
Diesel Engine(4-Cylinder engine, water cooled 105x125MM) |
|
3) Rated power |
75kw |
|
4)Total displacement |
4.33L |
|
5) Min fuel consumption |
239g/Km.h |
|
6) Max.net torque |
600N.m |
|
7) Rated revolving speed |
2200r/min |
|
3.0 TRANSMISSION SYSTEM |
|
|
1) Model |
CBGJ2040 |
|
2)Type |
power shift, electrical controlled |
|
3)Torque converter type |
Single Stage or Dual Phase |
|
4) Max. travel speed |
25km/h |
|
4.0 HYDRAULIC SYSTEM |
|
|
1) System pressure(backhoe) |
25000Kpa |
|
2) System pressure(loader) |
2070Kpa |
|
3) Flow rate of excavator system |
136L/min |
|
4) Flow rate of loading system |
106L/min |
|
5) Digging force, crowed cylinder |
36.0KN |
|
6) Hydraulic pump |
Gear Pump Tandem |
|
7) Bucket self-leveling ability |
yes |
|
8) Elec. clutch-cut-off switch |
yes |
|
9) Raising time of full height |
4.9s |
|
10) Bucket lowering time |
1.9s |
|
11)Bucket dumping time |
1.1s |
|
5.0 BRAKES |
|
|
1)Service brake |
Fully sealed wet disc, free adjust type |
|
2) Parking Brake |
Electronic control |
|
Spring applied, hydraulically released |
|
|
3) Emergency Brake |
Electric control |
|
Spring applied, hydraulically released |
|
|
6.0 SERVICE REFILLING CAPACITIES |
|
|
1) Engine Coolant |
16L |
|
2) Engine Oil |
8.5L |
|
3) Transmission |
15L |
|
4) Rear Axle |
16L |
|
5) Front Axle |
85L |
|
6) Model of Front Axle |
MS-2025 |
|
7) Model of Rear Axle |
MT-2075 |
|
8) Front Axle |
Mechanical front wheel drive, limited slip |
|
9) Rear |
with differential lock elec. Controlled |
|
10) Front Type |
19.5-24,8PR R4 |
|
11) Rear Type |
12.5/80,10PR |
|
7.0 STEERING SYSTEM |
|
|
1) Type |
Power Steering |
|
2) Min Turning Radius |
5682mm |
Certifications
Details Pictures
More details please ask us online or send inquiry to us,we will answer first time.
