Quick Details
-
Hose Inner Diameter:
-
50 mm
-
Air Consumption:
-
5~6m3/min,7~8m3/min,9~10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincola
-
Voltage:
-
220V/380V/400V/415V/440V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1.13*1.02*0.54m
-
Weight:
-
780 kg
-
Product name:
-
Tunnel Shotcrete Machine
-
Key:
-
Shotcrete Machine Concrete Spraying
-
Drive Model:
-
Electric, Air or Diesel Engine
-
Max. Conveying Distance::
-
200m
-
Air Consumption::
-
7~8m3/min,
-
Max Aggregate Size::
-
20mm
-
Press::
-
0.2~0.6MPa
-
Dimension(L*W*H)::
-
1130*1020*750mm
-
Application:
-
spraying concrete
-
Spraying height:
-
50m
Quick Details
-
Marketing Type:
-
Hot Sale Product 2023
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
20
-
Hose Inner Diameter:
-
50 mm
-
Air Consumption:
-
5~6m3/min,7~8m3/min,9~10m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincola
-
Voltage:
-
220V/380V/400V/415V/440V
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1.13*1.02*0.54m
-
Weight:
-
780 kg
-
Product name:
-
Tunnel Shotcrete Machine
-
Key:
-
Shotcrete Machine Concrete Spraying
-
Drive Model:
-
Electric, Air or Diesel Engine
-
Max. Conveying Distance::
-
200m
-
Air Consumption::
-
7~8m3/min,
-
Max Aggregate Size::
-
20mm
-
Press::
-
0.2~0.6MPa
-
Dimension(L*W*H)::
-
1130*1020*750mm
-
Application:
-
spraying concrete
-
Spraying height:
-
50m

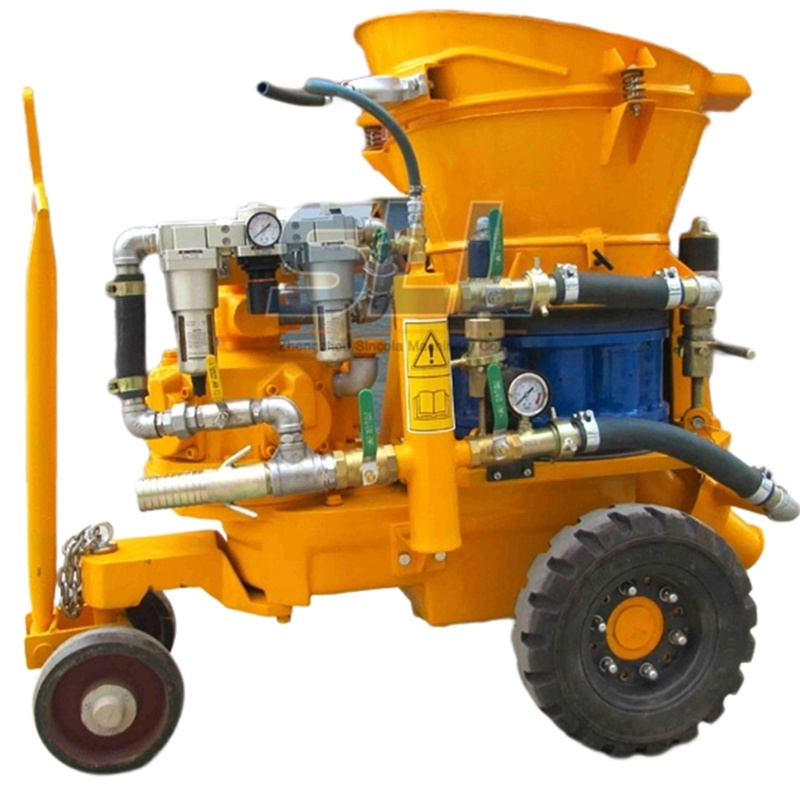

Shotcrete Machine Concrete Spraying 9M3/H Shotcrete Concrete Pump Gunning Machine
SPZ shotcrete machine use air pressure to convey dry material from the machine through the hose to the nozzle where water is added. SPZ Series Electric Dry-mix Shotcrete Machine is a low to high production, continuous-feed material placement unit for dry-mix gunite or refractory materials. It is equally at home underground in a mining environment as it is on a construction jobsite. This kind gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life with low maintenance. Several hose and nozzle options are available to meet the demands of every gunite / shotcrete spraying application.
Features of dry shotcrete machine
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .
| Model | SPZ-3 | SPZ-5 | SPZ-9 |
| Output (m3/h) | 3 m3/h | 5.5 m3/h | 9 m3/h |
| Max.conv.dist | 200 | 200 | 150 |
| Water cement ratio | < 0.4 | < 0.4 | < 0.35 |
| Max.Aggregate.size | 10mm | 15mm | 20mm |
| Hose inner size | φ42/50 mm | φ50 mm | φ60 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 5-6 m3/min | 7-8 m3/min | 9-10 m3/min |
| Motor power | 3 kW(4hp) | 5.5 kW(7hp) | 7.5 kW(10hp) |
| Dimension(LxHxW) | 1130x1020x540mm | 1350x1020x750mm | 1500x1320x830mm |
| Weight | 520kg | 780kg | 980kg |
| Voltages | 220V/380V/400V/415V/440V/660V 50Hz/60Hz | ||
| Basic chassis | 1.Tyre 2.Skid 3.Rail-wheel | ||
| Driving Type | Electric Motor,Air mortor , Diesel engine | ||
Product details
Concrete spray shotcrete machine Advantages
1.The shotcrete machines are designed for easy opearating which only need two workers to opearate so as to saved you human resources and much labour charge.
2.All the fittings of the shotcrete machines are made by China's most famous manufactures which ensured its high quality with low cost.
3.It has a long lifetime which can reached 6-10years long.
4.Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.
5.The machine always works with efficiency and silence with air valve remote-contral function.
6.The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance
Applications Of Shotcrete Machine
1. Used for dry mix concrete spraying operation.
2. Shotcrete for Civil Underground Foundation , Express-Way Construction, Railway Construction;
3. The Concrete shotcrete machine shotcretes for building surface;
4. Shotcrete for Tunneling , Mining ,Hydropower Project;
5. Shotcrete for Slope Stabilization.
For example, build up the swimming pool.
