Portable Gold Washing Wheel Concentrator Gold Gem Prospecting Machine

Portable Gold Washing Wheel Concentrator Gold Gem Prospecting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $1230

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V/220V

Dimension(L*W*H):: depends on the model

Weight:: 20 KG

Product name:: spiral gold washing machine/spiral gold panning machine

Keywords:: gold miner spiral panning machine

Color:: Customers' Requirements

After sale service:: Online Service

Usage:: Mining Concentration

Feature:: Simple Operation

Recovery rate:: 90-99%

Quality:: Inernational Standard

Advantage:: High Separation Efficiency

Processing capacity:: 20-50 Kgs/h

Quick Details

Production Capacity:: 90-99%

Place of Origin:: Jiangxi, China

Brand Name:: JXSC

Voltage:: 380V/220V

Dimension(L*W*H):: depends on the model

Weight:: 20 KG

Product name:: spiral gold washing machine/spiral gold panning machine

Keywords:: gold miner spiral panning machine

Color:: Customers' Requirements

After sale service:: Online Service

Usage:: Mining Concentration

Feature:: Simple Operation

Recovery rate:: 90-99%

Quality:: Inernational Standard

Advantage:: High Separation Efficiency

Processing capacity:: 20-50 Kgs/h

Product Description

Instruction

● Laser Spot Visible From Eyepiece

Clear visible laser can be directly observed through a telescope. The laser has the function of pointing at the same time, and the visual effective distance is 100 meters.

● Protection Against Water/Dust

IP54 water resistance assures protection against splashing from any direction.

● The output laser brightness can be adjusted

The illumination of the laser can be adjusted according to the use environment.

Product Structure

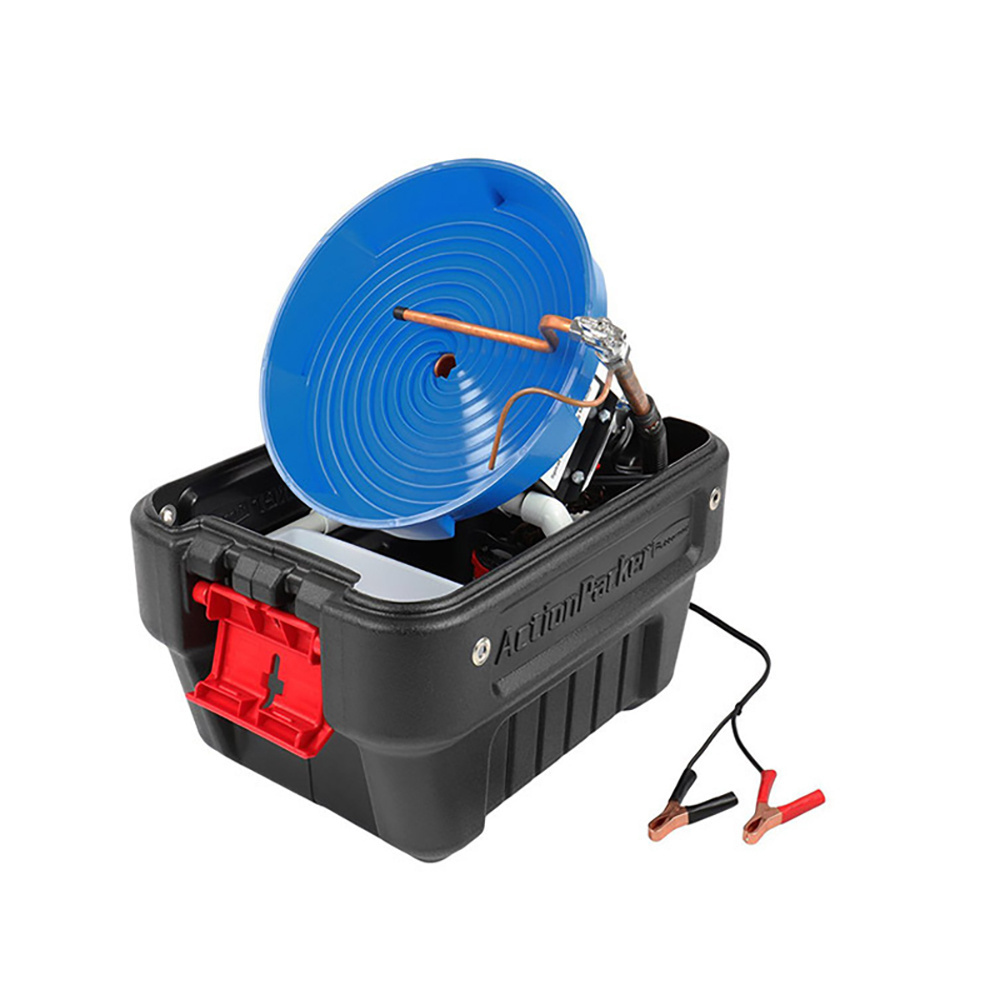

The spiral gold washing machine is mainly used for the selection and separation of placer gold, which can completely replace manual gold shaking. The equipment is small in size and weight, fast in heavy sand processing, very time-saving and labor-saving, and has a strong ability to separate fine-grained gold.

● The spiral gold washing machine is light weight and fully self-contained,weighing approximately 10 pounds.The dimensions are 20” L×15”W×12”H,powered by a 120 volt battery(not include in the packing list)

● The spiral gold washing machine will run all day on approximately 3 gallons of water,it recycles the water losing only what is discarded with the tailings and evaporation.

● The spiral gold washing machine is equipped with the most advanced spiral wheel on the market.The computer designed concentrate agitators.Built into the wheel makes is the most advance gold recovery wheel on the market!It is the only wheel that will agitate the concentrate during the processing.This agitation increase the gold recovery by at least 30 percents.

● The spiral gold washing machine computer designed pan has 7 spiral leads.It runs approximately 12 revolutions per minute,the optimum speed for the highest gold recovery Panning machine is equip with an advance design injection molded pan.It has deeper recesses.They are located at the beginning of each riffle for better agitation of your concentrate.

Set up

1. The drive unit is attached as a sliding frame, making set-up easier

2. Install spiral pan and rotate until wheel engages drive notch

3 . Slide the entire drive unit with the pan attached forward until it reaches the stop points on frame

4. Gently move the "micro-adjuster"that is attached to the frame upwards.Attach the loop end of "micro-adjuster"to the gear box bracket.tighten wing nut.

5. Place nylon filter over the bottom of the pump and secure with the rubber band 6. Install the spray bat assembly with pump attached, to the back of the drive unit using the wing nut provided.The spray bar should be set level across the spiral pan approx. 1/2" to 1"inch from the surface of the pan.

7. Adjust the smaller jet tube by gently bending so that it points at the inside wall of the spiral pan at approximately five o'clock position and half way up the side wall.

8. Fill the carrying case with water to just under the frame. (using approximately 3 gallons of water). Add 4 or 5 drops of jet dry anti-spotting agent to water. This wetting agent will prevent super find gold from floating out of the catch up.

9. Hang catch up hook located on back of drive unit.Turn on and adjust flow of water(without splash) from spray bar using water valve.

10. Make sure the power switch is in the off position. Plug pump unit into the power supply located on the drive unit making sure that the colors match (Red to Red and Black to Black).

Preparing

1. We recommend that you classify your concentrate with a #8 or #12 classifier to start with, then go finer if needed for panning all black sand

2. Add concentrate (approx 3-to 4 oz every 15 to 30 seconds) to the wheel at the seven o'clock position.Watch for
black sand to rise up the wheel. Speck of black sand should be no closer than 2 inches from the center hole of the wheel.When properly adjusted only clean gold will be recovered in the catch cup.

3. For removal of the tailing container to empty it.Simply slide the frame by gently pulling back at both "T's" on either slide of the frame near the tailings container.After it is empty and back in,simply slide the frame up until it stops.This whole process should take less than a minute.

Packing & Delivery

●Ways Of Packing

1.Small parts packed in the wooden cases.

2.Big parts packed by plastic membrane.
3.The whole big machine is loaded in the container.

● Shiping by sea/air freight

or any way the customer requires.
