Quick Details
-
Span:
-
50m
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YUANDA
-
Weight (KG):
-
10000 kg
-
Product name:
-
Double girder bridge crane
-
Color:
-
Gray /Ocean Blue / Yellow / Orange
-
Material:
-
Good quality Q235B/Q345B
-
Crane feature:
-
European type double girder overhead crane
-
Control Method:
-
Pendant control, Radio remote control, Cabin Control
-
Lifting mechanism:
-
Electric Wire Rope Hoist / Winch
-
Main electrical parts:
-
Schneider/ABB/Siemens
-
Power Source:
-
3 Phase 380V 50hz / Custmized
-
Travelling speed:
-
0~20m/min
-
Work Duty:
-
A5 A6 A7
Quick Details
-
Max. Lifting Height:
-
2.5m, 3M, 25M, 7.5m, 5M, 10M, 4M, 2M, 15M, 6m, 4.5m, 20M, Other, 50M
-
Rated Lifting Moment:
-
radio control
-
Max. Lifting Load:
-
500 ton
-
Span:
-
50m
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YUANDA
-
Weight (KG):
-
10000 kg
-
Product name:
-
Double girder bridge crane
-
Color:
-
Gray /Ocean Blue / Yellow / Orange
-
Material:
-
Good quality Q235B/Q345B
-
Crane feature:
-
European type double girder overhead crane
-
Control Method:
-
Pendant control, Radio remote control, Cabin Control
-
Lifting mechanism:
-
Electric Wire Rope Hoist / Winch
-
Main electrical parts:
-
Schneider/ABB/Siemens
-
Power Source:
-
3 Phase 380V 50hz / Custmized
-
Travelling speed:
-
0~20m/min
-
Work Duty:
-
A5 A6 A7
China Manufacturer 2 3 5 10 15 20 25 30 Ton European type Low Headroom Hoist Single Girder Beam Overhead Bridge Crane

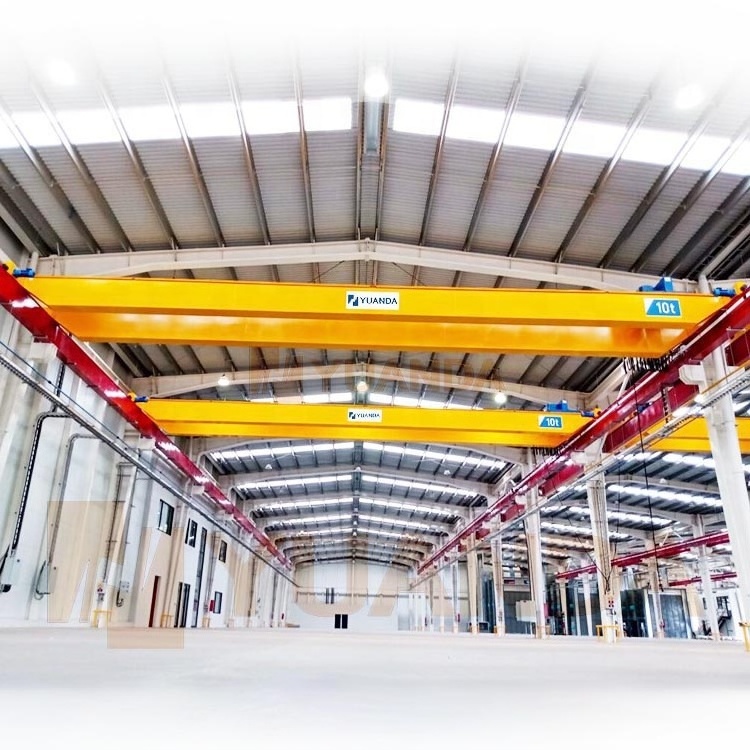

European Double-beam bridge crane generally refers to double-girder overhead bridge crane. English name: Dual-beam Dual-girder Dual beam girder crane. Double girder Overhead crane mainly consists of bridge, trolley travelling mechanism, crab and electrical appliances. And is divided into working grades from A4 to A7 according to the use frequency.
The main model of Double Girder Overhead Crane is : LH Model, QD Model, QDY model, NLH, LHD, YZ, QZ, QB, QC, QY, QE, YZ Model Overhead Bridge Crane. It is widely used at indoor and outdoor industrial and mining enterprises, steel and chemical industries, metallurgic plant, casting, foundry, railway transportation, port terminals, and logistics turnovers.
Capacity range: 5T, 10T, 10/5t, 16/3T, 16/3.2T, 16/5t, 16/10t, 17t/3.2t, 20/5T, 25/6.3t, 25/10T, 25/5T, 25/15t, 30/5T, 30/6.3t, 32/5T, 32/10T, 32/15T, 32/16T, 35/5t, 30/10t, 30/20t, 40/20t, 50/10T, 50T/20T, 50/15t, 50/16t, 65/32T, 75/20T, 80/25T, 80/20t, 100/20T, 100/30T, 100/32t, 100/30+10t, 125/30T, 125/32t, 125/50t, 125/75t, 150/30T, 150/75t, 150t(75+75)/80t, 160/20T, 160/32T, 160/50t, 160/50/10t, 175T, 200/50T, 200t(100+100)/120t, 200/100t, 250/15T, 250/50t, 250/100t, 240/75/15T, 300/50t, 320/50T, 360/100T, 400/80T, 560/250T, 550/200T, 550/100T
Technical parameters of Double girder overhead crane
|
Loading capacity |
5 ~ 500t |
|
Lifting height |
3 ~ 30 m or customized |
|
Lifting speed |
Vary with lifting capacity, or customized. |
|
Span |
10.5~31.5 m/min |
|
Lifting mechanism |
Wire rope hoist or electric chain hoist or winch |
|
Working class |
A5-A8 |
|
Working temperature |
-20~40 |
|
Power supply |
AC-3Phase-220//230380/400/415/440V-50/60Hz |
|
Control voltage |
DC -36 / 48V |
|
Motor protection class |
IP54 IP55 IP65 |
|
Control way |
Cabin, wireless remote, pendant push button |
|
Safety device |
Buffer,current overload protection,overload device |
|
Application area |
Factory,workshop,warehouse,power station |
And the dimension and capacity all can be customized made as you need , even if you do not know the specific data clearly, pls tell us the problem you meet now and the objects you need to lift. Then our engineer team can suggest a best design and solution for you.
