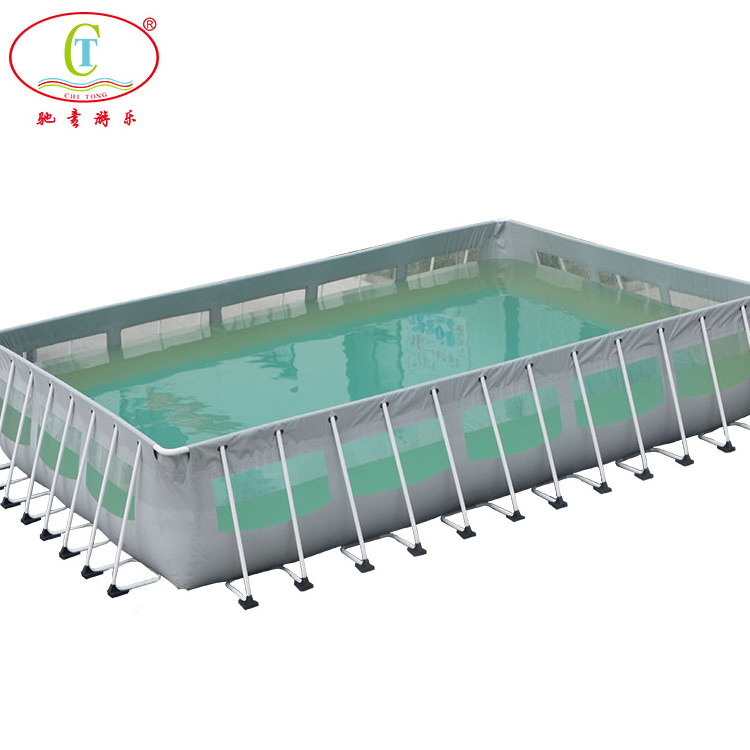

Portable Rectangular Small Size Metal Frame Swimming Pool

Parameter

Product name

Metal frame pool

Material

Steel tube + 0.9mm PVC net clamping cloth

Specification

(steel tube)

Cross-bar: length:1.12m, pipe diameter:50mm, thickness:2.4mm

Montant: pipe diameter:38mm, thickness:2.4m m

Color

Steel tube: white

Cloth:(double color) inside is sky blue, outside is sea blue.

Size

The size is customized.

MOQ

30 m²

Technical

Steel tube: On the surface, we use pickling method to remove oily be soiled, and then electrostatic spraying.

Cloth: Heat sealing.

Package

Steel tube: Wooden case

Cloth: PVC tarpaulin bag

Packing size

Undefined (The size is according to your pool size)

Weight

Undefined (According to your order)

Product cycle

2-5 working days

Warranty

The steel tube is 3 years, the cloth is 1 year.

OEM

Yes

Accessories             ( need extra charge)

ΠSand filter( including pump and sand)

 Ladder

ΠSand filter

Material: Fiberglass

Model 650, equipping 1.5m water pump, and 1 5 0kg silica sand.(Every 100m² need a sand filter)

Equipping 1.5m water pump, and 375kg silica sand.( Every 200m² need a sand filter)

 Ladder

1. Comparing the exist ladder, our U tube heights higher than the market existing 30cm.
2. The material of herringbone escalator is 304 stainless steel with 1.5mm thickness, and the diameter is 42 mm.
3. The material of pedal is nylon.
4. H aving three size, 1m, 1.32m, 1.5m.

Introduction:

• Diameter supervisor of steel frame is 50mm, deputy pipe diameter is 38mm, and the whole body is injection-molded, through sublimation to remove greasy surface pickling, followed by the formation of electrostatic spraying 2.4mm protective cover .
• The stents pool is made up of t he steel frame ’ s thickness of 3.0 using national standard welding and processing fabric ether ethylene PVC fabric.
• The main support for the pipe, the pool body with pool use special nylon choreography double-sided PVC coated cloth by high-frequency welding hot forming.
• Having characteristics of high tear, rub resistance, aging resistance, and beautiful appearance, what ’ s more, easy setting up, using safe, clean and without special site. The regular shape of metal frame pool is rectangle, and general height of 60cm – 150cm, length and width dimensions in the range of 2x2m to 50x25m.

Attention:

Every 100 square meters need a purifier, and one metal frame pool need equip with a h erringbone escalator .

The price of purifier is USD450-500, and the chemical materials of purifier and the escalator (steel tube material) need additional costs.

The price of the herringbone escalator is USD230-260.

The introduction of the herringbone escalator:

• The material of h erringbone escalator is 304 stainless steel with 1.5mm thickness, and the diameter is 42 mm.
• U-shaped tube heights higher than the market existing 30cm, so it has more security guarantees .
• The material of e scalator pedal is nylon , and it has the following

advantages:

• Wear-resisting performance is superior, can increase the service life of the other.
• Light weight, convenient installation.
• Self-lubricating performance is superior, no glue material.
• It can resist all kinds of chemical corrosion.

Packing

With durable PVC bag.

Metal frame are packed in high quality wooden case .

Packing size

According to customer customized.

Paying term

By T/T

Shipping way

By sea , by air or express

Delivery time

It needs to according to your orders.
