Quick Details
-
CUTTING RULE:
-
STEEL
-
Length:
-
70m
-
Size:
-
0.71*23.8/22.9/23.3/23.24/22.5
-
trearment:
-
Heat
Quick Details
-
Model Number:
-
SC-901
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
CULMINATIOBN
-
CUTTING RULE:
-
STEEL
-
Length:
-
70m
-
Size:
-
0.71*23.8/22.9/23.3/23.24/22.5
-
trearment:
-
Heat

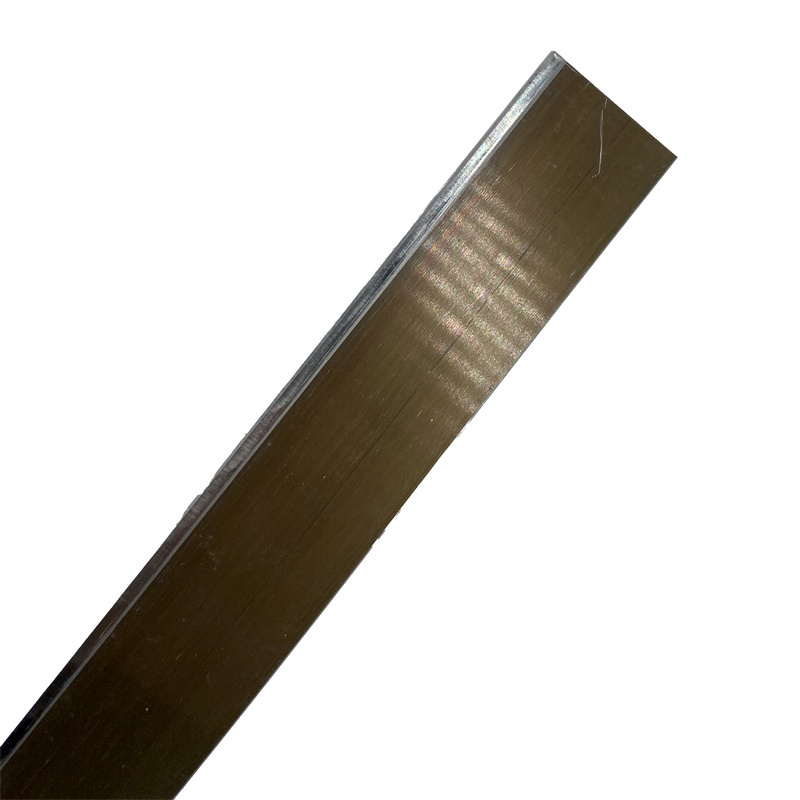

Steel Rules
Cutting Rule: Cross Camber< 0.05mm,Straightness< 0.5mm/1000mm,Flatness <5mm/1000mm
Length(1000)*Height(23.80)*Thickness(0.45,0.53,0.71,1.05,1.42,2.10)/piece
Body Hardness HRC 35-41, Edge Hardness HRC 55~60
Any angle of blade is available upon request.
Wave Edge: 762*23.80*0.7/piece
Notching Rule: 1000*23.80*1.05/piece,1000*23.80*1.42/piece
Creasing Rule: Cross Camber <0.05mm,Straightness <0.5mm/1000mm,Flatness< 5mm/1000mm
Length(1000)*Height(23.30,23.24,22.90)*Thickness(0.71,1.05,1.42,2.10)/piece
100M*Height*Thickness/coil
Perforating Rule: Height tolerance ±0.04mm Hardness HRC50 ºc Thickness0.71(2pt),1.O5(3pt),1.42(4pt)
Label Rule: Cross Camber-0.01mm,Straightness 0.3mm/1000mm,Flatness 3mm/1000mm,Height tolerance±0.02mm
Length(915)*Height(7.0,8.0,9.5,12.0,23.80)*Thickness0.45/piece
100M*height*0.45/coil
ContinuousStationeryPerforating:
Cross Camber-0.02mm,Straightness 0.05mm/500mm,Flatness 5mm/1000mm,Height tolerance±0.04mm
Length(500)*Height(16,23.24)*Thickness0.71/piece
