Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Exceedconn
-
Model Number:
-
EN050-2236-00
-
Name:
-

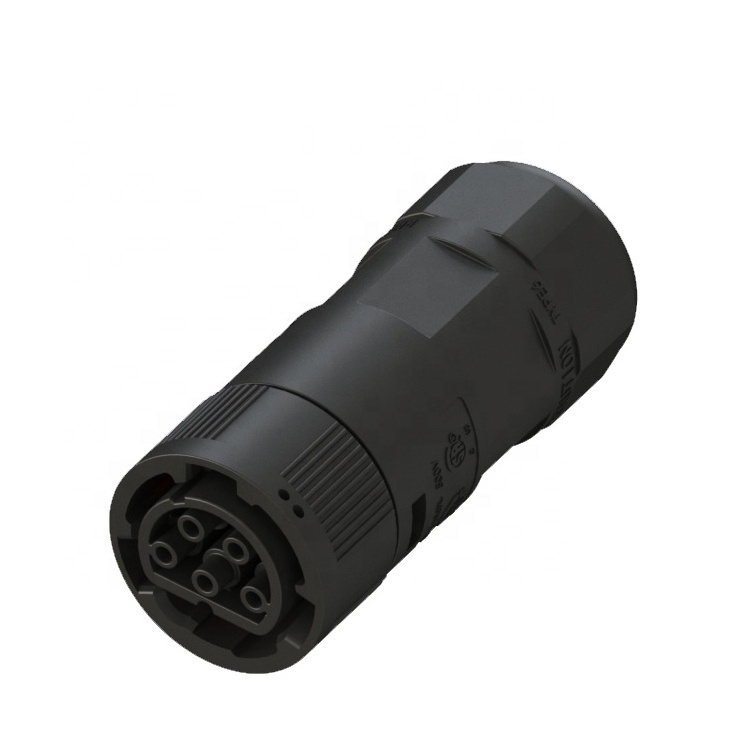

Connector inverter 5 pins IP68 Solar AC wire to wire
-
Protection level:
-
IP 68
-
Termination:
-
Screw Clamp
-
Pins:
-
5
-
Rated current::
-
25A
-
Color:
-
Black
-
Rated Voltage:
-
500V AC
-
Plating:
-
copper alloy with Ni
Quick Details
-
Type:
-
electric components
-
Application:
-
Power
-
Gender:
-
Female
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Exceedconn
-
Model Number:
-
EN050-2236-00
-
Name:
-
Connector inverter 5 pins IP68 Solar AC wire to wire
-
Protection level:
-
IP 68
-
Termination:
-
Screw Clamp
-
Pins:
-
5
-
Rated current::
-
25A
-
Color:
-
Black
-
Rated Voltage:
-
500V AC
-
Plating:
-
copper alloy with Ni
Product Description
| Ordering Information | |
| Ordering No. | Cable Seal Dia.(mm) |
| 910000402 | 13mm |
| HS CODE | 8536300000 |
| Standard Packing Quantity / Carton | 200PCS/Carton |
| Gross Weight / PCS | 68 g/PCS |
| Electrical Performance | |
| Rated Voltage | 500V AC |
| Rated Impulse Voltage | 4000V |
| Rated Current | 25A |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥1000MΩ |
| Mechanical Capacity | |
| Cable Retention | OD:5.5~9.0,F≥80N; OD:9~12,F≥100N; OD:12~12.5,F≥120N; |
| Connector insertion force / | ≤80N |
| Pullout force | |
| Connector Insert and pullout frequency | 500 times |
| Cable Cross Section | 2.5~4mm² |
| Operational Environment | |
| Protection Degree | IP68 1m-1H |
| Ambient Temperature | -40℃~+85℃ |
| Sealing element | 960℃ |
| Flammability class(Insulator) | UL94 V-0 |
| Material | |
| Plastic | PC+PBT |
| Conductor | Copper Alloy with Ni Plating |
| Sealing element | Silicone |
| Connecting Screw | SUS |
| Package Specification | |||
| Packing Material | Carton Size (mm) | Quantity | |
| (PCS/Carton) | |||
| Standard | Carton | 460× 340×250 | 200 |
| Carton | |||
| MPQ | PE | 120X80 | ---- |
