Quick Details
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA
-
IP level:
-
IP65
-
Color:
-
Red Yellow Green Blue White
-
Product name:
-

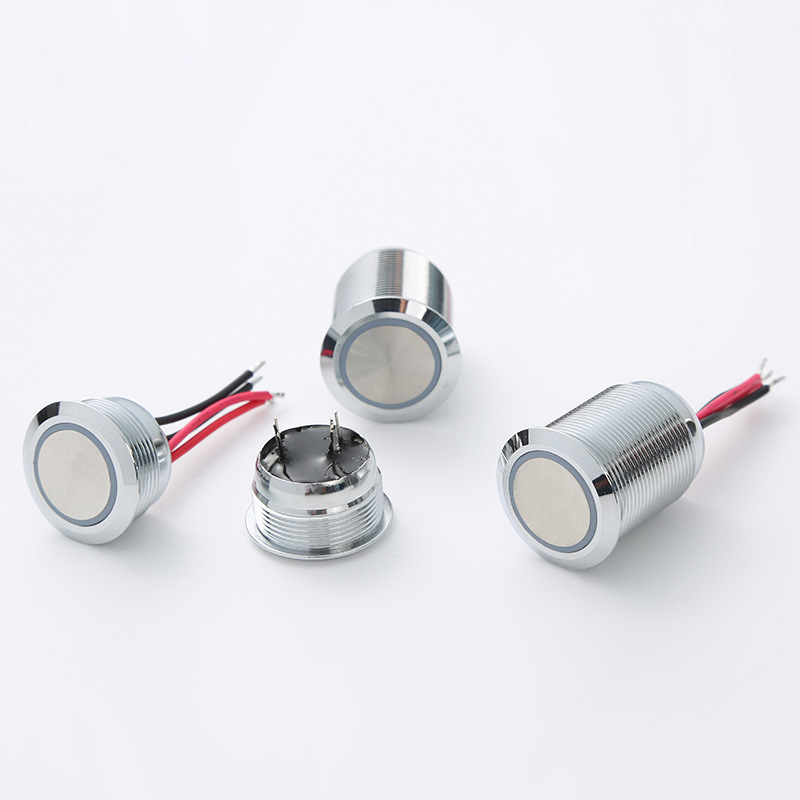

Matel Push Button Switch
-
Operation type:
-
Self-locking Momentory
-
Head shape:
-
Flat Round
-
Function:
-
Momentary 1NO
-
Mounting Hole Size:
-
Dia 19mm
-
Material:
-
Stainless Steel/Chromium plating on copper/Nickel plating on copper
-
Mechanical Life:
-
More than 1 million times
-
Electric Life:
-
Operate more than 200000 times under rated load
-
Packing:
-
Carton Box
Quick Details
-
Max. Current:
-
2A
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA
-
IP level:
-
IP65
-
Color:
-
Red Yellow Green Blue White
-
Product name:
-
Matel Push Button Switch
-
Operation type:
-
Self-locking Momentory
-
Head shape:
-
Flat Round
-
Function:
-
Momentary 1NO
-
Mounting Hole Size:
-
Dia 19mm
-
Material:
-
Stainless Steel/Chromium plating on copper/Nickel plating on copper
-
Mechanical Life:
-
More than 1 million times
-
Electric Life:
-
Operate more than 200000 times under rated load
-
Packing:
-
Carton Box
Product Details
|
PRODUCT FEATURES
|
|
|
|
Install Diameter
|
16mm / 19mm / 22mm
|
|
|
Operation Type
|
Momentary or Latching or Three stage dimming or Electrodeless dimming
|
|
|
Switch Combination
|
1NO
|
|
|
Head Shape
|
Flat Head
|
|
|
Panel Thickness
|
1.4mm
|
|
|
PRODUCT MATERIALS
|
|
|
|
Key Material
|
Stainless Steel
|
|
|
Shell Material
|
Stainless Steel/Chromium plating on copper/Nickel plating on copper
|
|
|
Base Material
|
Plastic
|
|
|
LED SPECIFICATIONS
|
|
|
|
LED Type
|
LED
|
|
|
LED Color
|
Red / Green / Yellow / Blue/ White
|
|
|
LED Life
|
More than 40000 hours
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Max Switch Rating
|
5A / 12V AC/ DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 50mΩ
|
|
|
Mechanical Life
|
More than 1 million times
|
|
|
Electrical Life
|
Operate more than 200000 times under rated load
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP65
|
|
|
Operation Temperature
|
-20℃～+55℃
|
|
