Quick Details
-
Key Feature1:
-
3840x2160@30Hz
-
Key Feature2:
-
1 Years Warranty
-
Key Feature3:
-
HDMI Adopter
-
HDCP:
-
Yes
-
Certifications:
-
CE/FCC/ROHS/HDMI Adapter/HDCP Authorization
-
Input:
-
8 HDMI
-
Output:
-
8 HDMI
-
housing:
-
Metal
-
Product Type:
-
8x8 HDMI Matrix Switcher
Quick Details
-
Model Number:
-
HMA0808A10
-
Brand Name:
-
TESmart
-
Place of Origin:
-
Guangdong, China
-
Key Feature1:
-
3840x2160@30Hz
-
Key Feature2:
-
1 Years Warranty
-
Key Feature3:
-
HDMI Adopter
-
HDCP:
-
Yes
-
Certifications:
-
CE/FCC/ROHS/HDMI Adapter/HDCP Authorization
-
Input:
-
8 HDMI
-
Output:
-
8 HDMI
-
housing:
-
Metal
-
Product Type:
-
8x8 HDMI Matrix Switcher
Rs232 video matrix supports 4K hdtv 8x8 hdmi matrix switch 8 in 8

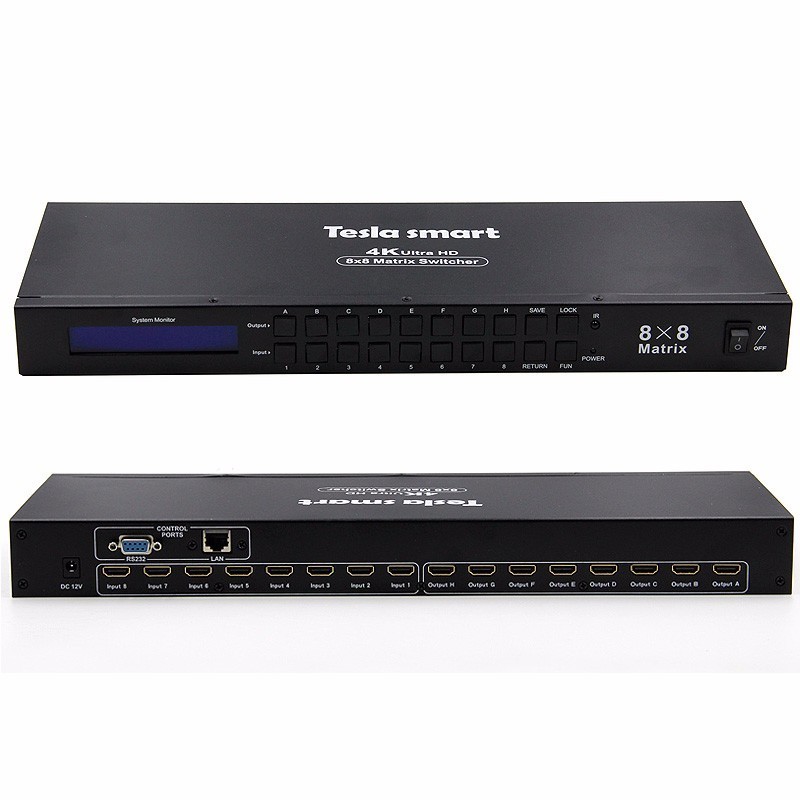

This 8x8 HDMI matrix routes eight Ultra HD sources to eight 4K Ultra HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232, IP interface. With smart EDID management, make it compatible with most of the HDMI source and sink devices.
1.Compliant with HDCP
2.Compliant with HDMI
3.Supports HDMI 1080P 3D 60Hz and 3840x2160P@30Hz
4.Each HDMI output can share same input or select standalone input
5.Supports PCM, AC3, DTS5.1, DTS7.1 and DSD audio format
6.Smart EDID management, make it compatible with most display devices
7.Matrix status could be memorized after power down, automatically restore previous matrix status after next power on
8.Easy control matrix via IR receiver, front keypad and PC (via LAN or RS232 port)
9.Easy to view real time inputs and outputs status via LCD display
10.Supports 8 configurable user preset connections
11.Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
12.8KV ESD protection
|
Part number
|
HMA0808A10
|
|
Functionality
|
|
|
Port selection
|
Front panel buttons
|
|
|
Console commands
|
|
|
IR remote control
|
|
LCD Display
|
24x2 characters
|
|
OSD
|
No
|
|
Smart EDID
|
Yes
|
|
Technical
|
|
|
Resolution
|
Up to 3840x2160@30Hz/ 1080P 3D 60Hz
|
|
HDMI
|
Yes
|
|
HDCP
|
Yes
|
|
Bandwidth
|
10.2 Gbps
|
|
Input
|
HDMI Type A *8, 24/26 AWG HDMI cable up to 10M
|
|
Output
|
HDMI Type A *8, 24/26 AWG HDMI cable up to 20M
|
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
Mechanical
|
|
|
Chasing material
|
Metal
|
|
Product Dimensions
|
440(L) x 150 (W) x 45 (H) mm
|
|
Item Weight
|
2000 g
|
|
Power supply
|
DC 12V 2A
|
|
Operating/Storage temperature
|
0 to 70 degree/-40 to 85 degree
|
|
Operating Humidity
|
10 to 90% RH
|
HDMI Matrix 8x8: 1 pc
Remote control: 1 pc
Power Supply 12V/2A DC : 1pc
User manual: 1pc
(2018 4k Matrix Switcher 8x8 Video Matrix 8x8 HDMI Matrix Switcher)
Q1:Are you a trade company or manufacturer?
A1:We are a professional manufacturer, we supply video & Audio splitter and switch, extender related products for more than 10 years in China.
Q2:How about the payment terms?
A2:We accept T/T, paypal or cash as payment .
Q3:What are your strengths?
A3:Our biggest advantage is the ODM service.
Q4:If I am not clear about the how to use the products, what should I do?
A4:Each of our products has a manual, you can read it or you may contact with us
.
