Hausser double bed designs in CNC wood router machine 4 axis with 6kw spindle wood working tools for CNC router

Hausser double bed designs in CNC wood router machine 4 axis with 6kw spindle wood working tools for CNC router

FOB Reference Price: Get Latest Price

≥2 Pieces

US $6580

≥5 Pieces

US $6055

≥10 Pieces

US $5229

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.03 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Spindle Motor Power(kW):: 9

Place of Origin:: China

Voltage:: 380v/50hz

Dimension(L*W*H):: 3800*2800*1800mm

Power (kW):: 26

Weight (KG):: 2500

Product name:: CNC Wood Working Machine

Application:: Acrylic

Keywords:: Cnc Wood Router Engraver

Motor:: Servo Motor

Spindle:: Air Cooling Spindle

Control system:: Syntec Control

After Warranty Service:: Video Technical Support Online Support

Function:: Cutting Engraving Non-metal Materials

Transmission:: XY-axis:rack Z-axis:ball Screw

Working area:: 1300x2500x200mm

Quick Details

Working Table Size(mm):: 1300×2500

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 6000 - 24000 rpm

Positioning Accuracy (mm):: 0.03 mm

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 2500 mm

Repeatability (X/Y/Z) (mm):: 0.02 mm

Spindle Motor Power(kW):: 9

Place of Origin:: China

Voltage:: 380v/50hz

Dimension(L*W*H):: 3800*2800*1800mm

Power (kW):: 26

Weight (KG):: 2500

Product name:: CNC Wood Working Machine

Application:: Acrylic

Keywords:: Cnc Wood Router Engraver

Motor:: Servo Motor

Spindle:: Air Cooling Spindle

Control system:: Syntec Control

After Warranty Service:: Video Technical Support Online Support

Function:: Cutting Engraving Non-metal Materials

Transmission:: XY-axis:rack Z-axis:ball Screw

Working area:: 1300x2500x200mm

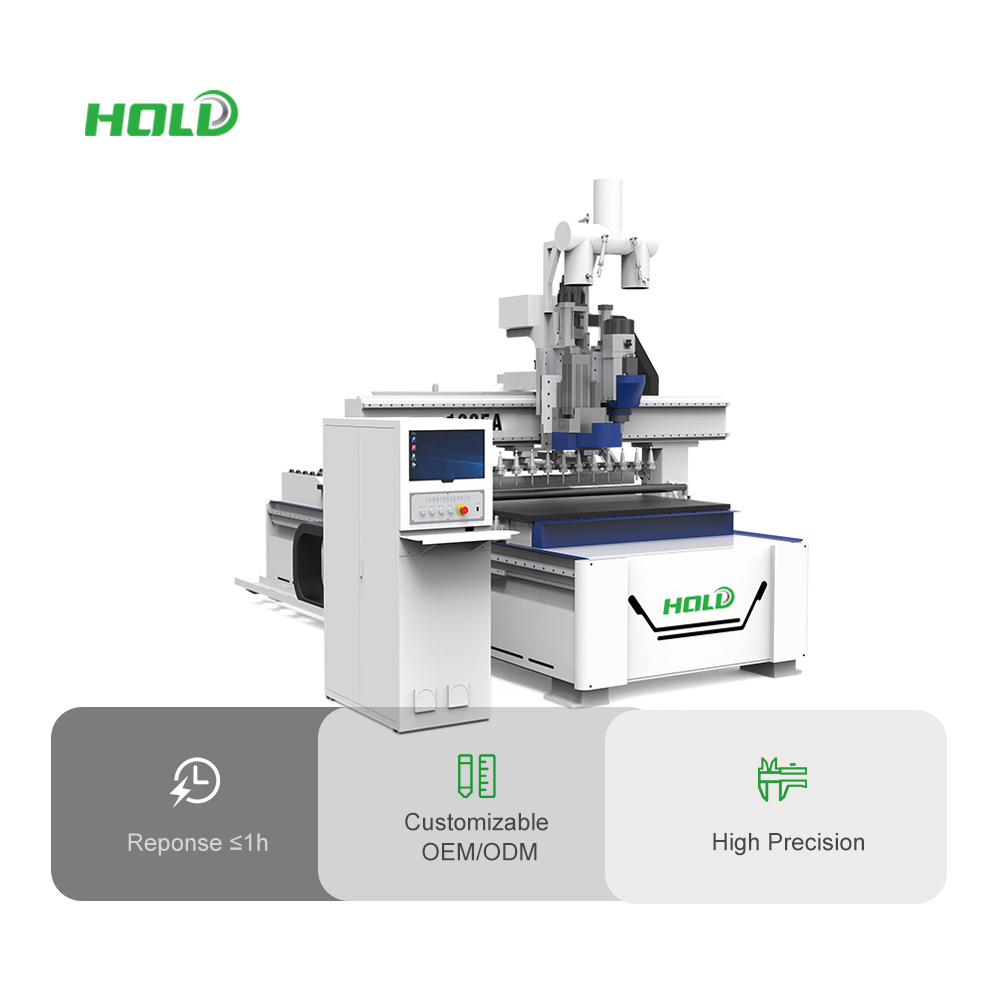

Products Show

1325 cnc router is popular in advertising industry, it mainly used to cut acrylic, PVC, MDF, plywood and other materials. Besides, it can realize the engraving on stone like marble and granite, woodworking, etc.

Product's features

1325 cnc router is equipped with:

^High quality square rail and rack

^Nc studio control system, Mach 3 or DSP handle control
^High software compatibility
^Aluminum profile table and T-slot or vacuum table
^High speed step motor or servo motor

Product Paramenters

Model	XK-1325
Working area	1300×2500×200mm
Spindle	6kw air cooling spindle spindle
Motor	Stepper motor
Control system	NC Studio
Driven system	X, Y axis helical rack drive, Z axis Taiwan TBI ball screw
Working table	Intelligent protection of the work surface
Machine bed	Channel steel structure
Max speed	≥15m/min
Spindle speed	6000-24000rpm/min
Voltage	380V/50HZ
Software	Artcam, Artcut, Jingdiao
Packing size	320022501830mm
Lubrication system	Automatic oil lubrication system
N.W./G.W.	900kg/1050kg

Quality Control

Our company has six steps to guarantee the machine quality, from the start to the end. Machine base is made by imported CNC processing center, which is imported from Italy. Besides, we also use precise instrument to measure the precision of every part and finally, we will check the final products after cutting to make sure the the accuracy of machine cutting.

Application

1325 CNC Routers are computer-controlled engraving/milling/cutting machines. They can be used in the production of various different items, such as furniture, cabinet, signboards, wood panels, wooden frames, door carvings, prototyping & modeling, musical instruments, art crafts, and so on. It can also cut materials which are used widely in advertising industry like acrylic, PVC, MDF, double colors board, plywood, etc.

After-Sale Service
