Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Unique CNC
-
Dimension(L*W*H):
-
1800x1300x1000mm
-
Weight (KG):
-
400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compatible software:
-
Coreldraw,AutoCAD,Photoshop
-
Certification:
-
CE
-
After Warranty Service:
-
Online support
-
Keywords:
-
cnc
-
Local Service Location:
-
Canada
-
Product name:
-
laser engraving cutting
-
Marketing Type:
-
popular in 2021
-
Name:
-
laser engraving cutting
-
Operation Method:
-
Towch Screen Offilne Control
Quick Details
-
Engraving Area:
-
1300mm*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-60000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Unique CNC
-
Dimension(L*W*H):
-
1800x1300x1000mm
-
Weight (KG):
-
400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compatible software:
-
Coreldraw,AutoCAD,Photoshop
-
Certification:
-
CE
-
After Warranty Service:
-
Online support
-
Keywords:
-
cnc
-
Local Service Location:
-
Canada
-
Product name:
-
laser engraving cutting
-
Marketing Type:
-
popular in 2021
-
Name:
-
laser engraving cutting
-
Operation Method:
-
Towch Screen Offilne Control

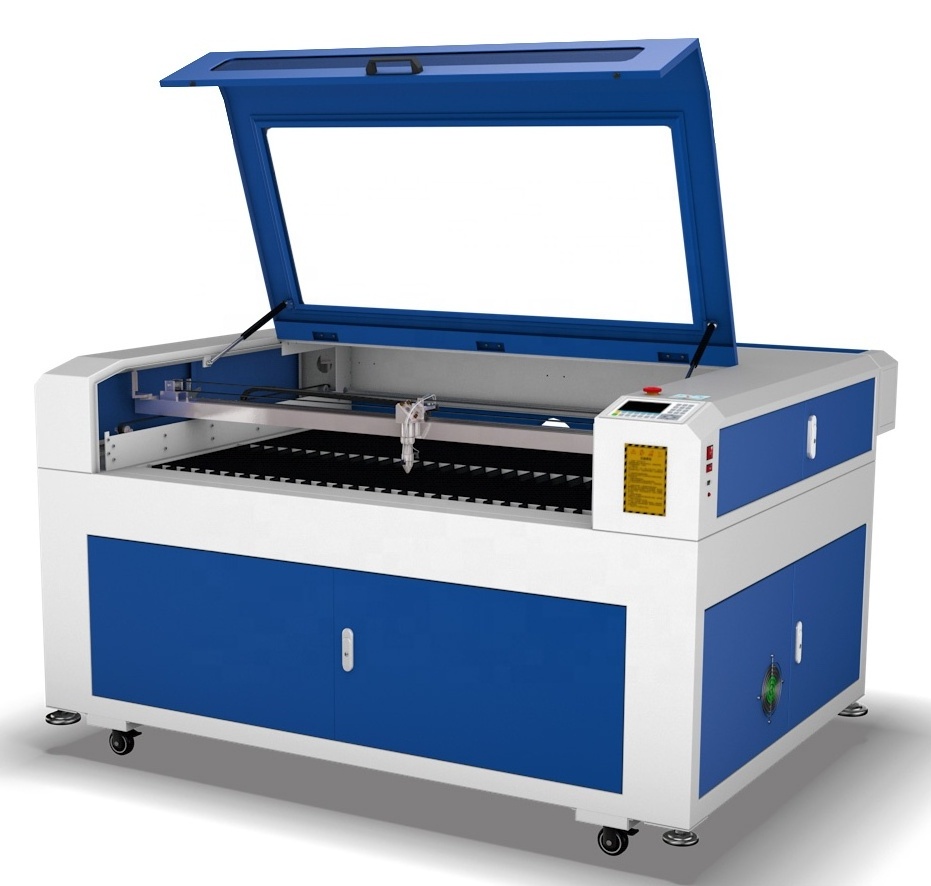

1390 CO2 laser engraver wood laser engraver 9060 laser carving machine cutting machine
Product details
The awesome laser engraving machine adopts CO2 laser souce to engrave wood (softwood, hardwood, solid wood, plywood), MDF, bamboo,
acrylic, leather, fabric,rubber,cloth,paper and other nonmetal materials.
The awesome laser engraving machine adopts CO2 laser souce to engrave wood (softwood, hardwood, solid wood, plywood), MDF, bamboo,
acrylic, leather, fabric,rubber,cloth,paper and other nonmetal materials.
Product Description
Laser Engraving Machine Features and Advantages:
1. The laser engraving machine adopts more scientific design and high strength metal plate frame, which can increase the fuselage strength more than 40% to prevent the machine from distortion during long term work. In addition, this structure is very stable and not easy to be out of shape. The sound insulation effect is good.
2. Advanced Ruida 6442G control system for wood laser cutter is the latest generation of laser engraving/cutting control system,the control system hardware has better stability, better resistance to high pressure, anti-static properties of interference.
3. New-style high-efficiency RECI laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
4. Taiwan HIWIN square linear guide rail will be installed on X axis and Y axis to ensure the laser wood cutter works stably and precisely.
5. The wood laser cutter adopts high quality professional square tube framework, with more than 40% higher fuselage strength than iron sheet structure. This design prevents the laser wood cutting machine from quivering, resonance and distortion during long term work.
6. Red dot position system is added in standard configuration, contributing to simple and precise working position.
7. The wood laser cutter adopts advanced LCD Screen + USB port + Offline Control, with professional motion control chip, which has the functions of consecutively high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.
8. USB offline control system makes the wood laser cutter operation more convenient and faster.
9. Automatic up-down table for the wood laser cutter can be chosen for thick materials and high objects.
1. The laser engraving machine adopts more scientific design and high strength metal plate frame, which can increase the fuselage strength more than 40% to prevent the machine from distortion during long term work. In addition, this structure is very stable and not easy to be out of shape. The sound insulation effect is good.
2. Advanced Ruida 6442G control system for wood laser cutter is the latest generation of laser engraving/cutting control system,the control system hardware has better stability, better resistance to high pressure, anti-static properties of interference.
3. New-style high-efficiency RECI laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.
4. Taiwan HIWIN square linear guide rail will be installed on X axis and Y axis to ensure the laser wood cutter works stably and precisely.
5. The wood laser cutter adopts high quality professional square tube framework, with more than 40% higher fuselage strength than iron sheet structure. This design prevents the laser wood cutting machine from quivering, resonance and distortion during long term work.
6. Red dot position system is added in standard configuration, contributing to simple and precise working position.
7. The wood laser cutter adopts advanced LCD Screen + USB port + Offline Control, with professional motion control chip, which has the functions of consecutively high-speed curve cutting and the shortest path selection, which largely improves your working efficiency.
8. USB offline control system makes the wood laser cutter operation more convenient and faster.
9. Automatic up-down table for the wood laser cutter can be chosen for thick materials and high objects.
CO2 laser engraving and cutting machines applications:
|
Material
|
Engrave
|
Cut
|
|
Acrylic
|
Yes
|
Yes
|
|
Wood
|
Yes
|
Yes
|
|
MDF,plywood
|
Yes
|
Yes
|
|
Organic glass
|
Yes
|
Yes
|
|
Rubber
|
Yes
|
Yes
|
|
Leather
|
Yes
|
Yes
|
|
Plastic
|
Yes
|
Yes
|
|
Glass
|
Yes
|
No
|
|
Crystal
|
Yes
|
No
|
|
Marble,granite
|
Yes
|
No
|
|
Ceramic
|
Yes
|
No
|
|
Crystal
|
Yes
|
No
|
|
Cloth
|
Yes
|
Yes
|
|
Paper
|
Yes
|
Yes
|
|
Sponge
|
Yes
|
Yes
|
|
Melamine
|
Yes
|
Yes
|
|
Painted metal
|
Yes
|
No
|
|
Anodized aluminum
|
Yes
|
No
|
|
|
|
|
Main parameters of U-L1390 laser cutting and engraving machine:
|
Model
|
U-L1390 laser engraving and cutting machine
|
|
Cutting area
|
1300x900mm
|
|
Laser power
|
80W
|
|
Laser type
|
CO2 Laser tube
|
|
Engraving speed
|
0-60000mm/min
|
|
Cutting speed
|
0-50000mm/min
|
|
Resetting positioning accuracy
|
0.01mm
|
|
Min.engraving letter
|
1x1mm
|
|
Power supply
|
220V/50HZ or 110V/60HZ
|
|
Operating temperature
|
0 - 45°C
|
|
Operating humidity
|
5-95%
|
|
Control system
|
Ruida system
|
|
Min. shaping character
|
English 1.0x 1.0mm
|
|
Graphic format supported
|
PLT,AI,DXF,BMP,DST
|
|
Software supported
|
CorelDraw, PhotoShop, AutoCAD, TiandaoTajima
|
|
Driving system
|
Stepper motor
|
|
Cooling mode
|
Water-cooling and protection system
|
Standard parts will come with machine:
1). Water cooling system.It is used to cool the laser tube,economic water pump and advanced water chiller for your choice.
1). Water cooling system.It is used to cool the laser tube,economic water pump and advanced water chiller for your choice.
2). Air pump. It is used for three basic reasons. The primary reason is the push fumes away from the laser's focal lens. This protects the lens from contaminants which could destroy the lens. The second function is to push air into the material's kerf as created by the laser beam. Air that is applied to the kerf will remove debris/fumes and allow the laser light to penitrate deeper through the material. The third reason is that the air will help to cool the material. If the laser cut/engraved material stays hot, then it could warp or shrink.
3). Exhaust fan. It creates an air flow to remove dust and fumes from the work area of the laser machine. It is important to
remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens. Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroying the optics. The fumes need to be removed from the operator work area because they can be irritating and unhealthy.
remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens. Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroying the optics. The fumes need to be removed from the operator work area because they can be irritating and unhealthy.
4). Worktable. Metal-bar worktable for hard materials such as acrylic, glass,etc. Honeycomb worktable for soft materials such as cloth,paper,fabric,etc. Machine standard configuration including one of the workables only.
5). Red dot pointer. It will show you the position of laser dot
Optional parts for more functions:
1) Z-axis motorized up-down worktable
With this device,Z-Axis worktable can move up and down automatically.With about 10 inches(20-25cm) of usable height
1) Z-axis motorized up-down worktable
With this device,Z-Axis worktable can move up and down automatically.With about 10 inches(20-25cm) of usable height
2). Chuck rotary for engraving cyliners such as bamboo,cups,etc.
Laser Engraving Samples:
Product categories
Our Advantages
01 Professional Advantage
Nearly 13 years of professional production and export experience. Cooperation with the largest customers from some countries.
02 Quality Assurance
All the products have the cetificate of ISO and CE approval, Guaranteed quality.
03 Fast Delivery
There are a large number of products in stock, so generally we can ship goods in about 3-5 days.
04 Price Advantage
Good quallity, resonable price, on time shipping and best service for each customers.
05 Customized Service
Tailor-made for each customer's requirements.
06 After-Sale Advantages
Long time guarantee period and 24 hours online service.
Our certificate
FAQ
Q Why should we choose you ?
A
If you choose us, you will get top quality, best service, reasonable price and reliable warranty.
Q I'm not familiar with the machine,how to choose?
A
Just tell us materials, thickness and working size, I will recommend the suitable machine.
Q How to operate the machine?
A
We will deliver English manual and video with the machine to you. If you still need our further help, please contact us.
Q Can I get the sample to check quality of machine ?
A
Of course. Please provide your logo or design to us, free samples can be provided for you.
Q Can the machine be customized according my requirements?
A
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q Can you arrange the shipment for us?
A
Of course. We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
