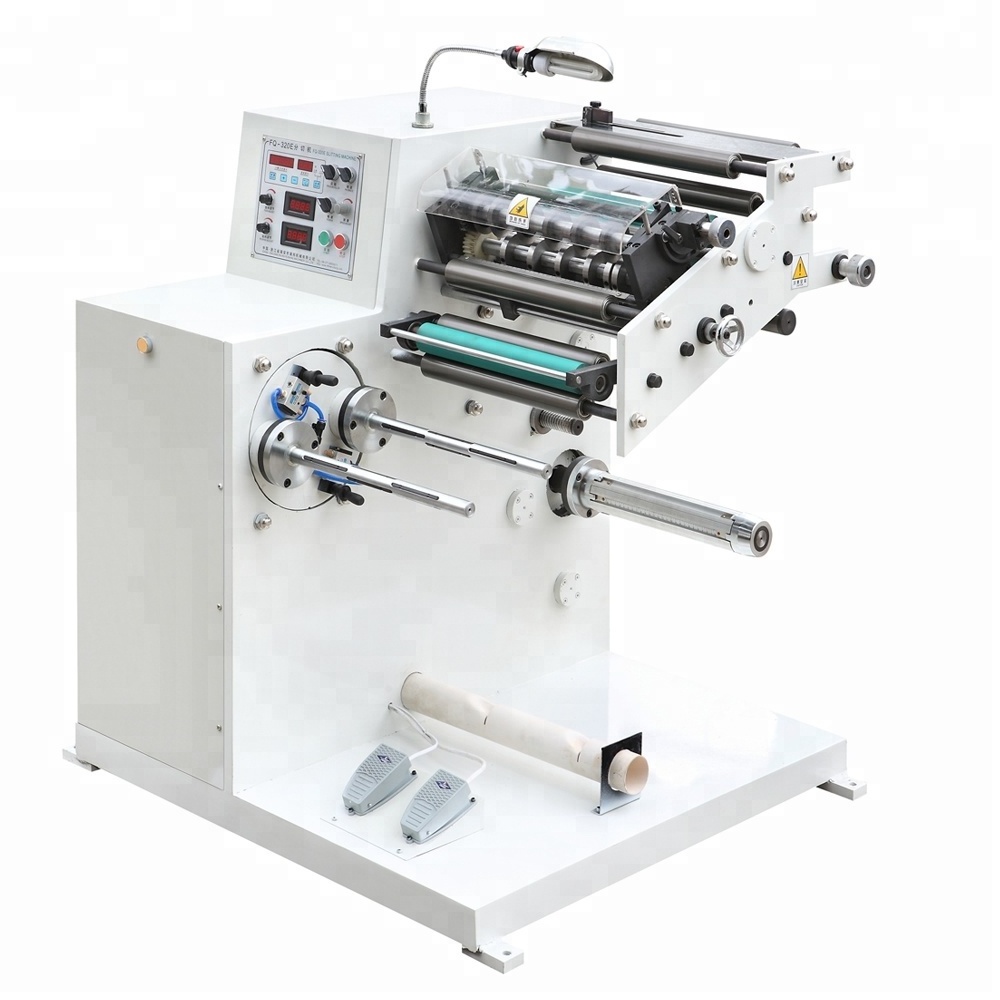

The automatic slitting machine is the supporting equipment of the automatic die-cutting machine, which is used for slitting small-sized reel materials.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gawang Machine
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
1100x900x1200mm
-
Weight:
-
400 kg
-
Max.unwinding diameter:
-
500mm
-
Max.web width:
-
320mm
-
Min.slitting width:
-
320mm
-
Counting:
-
Automatic
-
Max.rewinding diameter:
-
480mm
-
EPC:
-
Famous in China
-
Meter:
-
Automatic
-
Cutting Speed:
-
75m/min
-
Cutter:
-
Round Cutter
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
75 m/min
-
Max. workable width:
-
320mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gawang Machine
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
1100x900x1200mm
-
Weight:
-
400 kg
-
Max.unwinding diameter:
-
500mm
-
Max.web width:
-
320mm
-
Min.slitting width:
-
320mm
-
Counting:
-
Automatic
-
Max.rewinding diameter:
-
480mm
-
EPC:
-
Famous in China
-
Meter:
-
Automatic
-
Cutting Speed:
-
75m/min
-
Cutter:
-
Round Cutter
Characteristic
|
Model
|
GW-FQ-320
|
GW-FQ-450
|
GW-FQ-520
|
|
Cutting speed
|
75m/minute
|
75m/minute
|
75m/minute
|
|
Max web width
|
320mm
|
450mm
|
520mm
|
|
Max unwinding diameter
|
500mm
|
500mm
|
500mm
|
|
Max rewinding diameter
|
480mm
|
480mm
|
480mm
|
|
Overall dimension
|
1.1(L)×0.9(W)×1.2 (H)m
|
1.1(L)×1.2(W)×1.3 (H)m
|
1.1×1.45×1.3(LxWxH)
|
|
Power voltage
|
220v±10%
|
220v±10%
|
220v±10%
|
|
Weight
|
About 400kg
|
About 500kg
|
About 700kg
|
Advantage:
1. High slitting precision: it can perform half-break, full-segment slitting, unwinding, laminating, slitting, rewinding, waste disposal, easy operation and fast speed.
2. PLC control of the whole machine: touch man-machine interface, display of tension setting of winding and unwinding.
3. Pneumatic lift: the shear is neat and the rewinding is tight. The width can be adjusted freely, easy to operate and easy to maintain The slitting round knife adopts pneumatic lifting, and the electric drive adopts electromagnetic slip, adjustment, click, easy to control, slitting and rewinding speed.
4. Automatic shutdown: It has the functions of automatic meter counting, automatic stop, photoelectric tube paper guide, etc. The whole machine has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate cutting and stable operation.
5. Durable: Durable, low failure and few problems.
6. Automatically adjust the tension: the rewinding adopts the inner inflatable slip shaft plus electric control transformation type to automatically adjust the tension.
7. Closed-loop raw material: The raw material adopts magnetic powder brake and tension sensor to form a closed-loop raw material automatic tension control.
Pneumatic lifting:
The cutting is neat, the rewinding is suitable for tightness, the width can be adjusted at will, the operation is simple, and the maintenance is easy. The slitting circular knife adopts pneumatic lifting, and the motor drive adopts electromagnetic slip, adjustment, and the motor is easy to control, cutting and rewinding speed.
High slitting precision:
It can perform half-break and full-break slitting, collecting unwinding, laminating, slitting, rewinding, and waste discharge. It is easy to operate and fast.
PLC control of the whole machine:
PLC control of the whole machine, touch man-machine interface, display of the tension setting of rewinding and unwinding.
Automatically adjust the tension:
The rewinding adopts the inner inflatable slip shaft and the electronic control conversion type to automatically adjust the tension.
