Quick Details
-
Voltage:
-
Diesel Engine Driven, Diesel Engine Driven
-
Dimension(L*W*H):
-
3075*1900*2040mm
-
Weight:
-
900-7200kg
-
Product name:
-
Screw Type 7 8 9 bar 200 cfm Rated Air Compressor with Diesel Driven
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling Method:
-
Air or Water Cooling
-
Free Air Delivery:
-
201cfm
-
Normal Working Pressure:
-
8bar
-
Application:
-
Mine, Construction, Sandblast Heavy Duty Industries
-
Rotation Speed:
-
1400 RPM (Unloaded)
-
Rated Power:
-
80 HP
-
With Shell:
-
Water, Dust, Noise Proof
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DENAIR
-
Model Number:
-
DACY Series
-
Voltage:
-
Diesel Engine Driven, Diesel Engine Driven
-
Dimension(L*W*H):
-
3075*1900*2040mm
-
Weight:
-
900-7200kg
-
Product name:
-
Screw Type 7 8 9 bar 200 cfm Rated Air Compressor with Diesel Driven
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling Method:
-
Air or Water Cooling
-
Free Air Delivery:
-
201cfm
-
Normal Working Pressure:
-
8bar
-
Application:
-
Mine, Construction, Sandblast Heavy Duty Industries
-
Rotation Speed:
-
1400 RPM (Unloaded)
-
Rated Power:
-
80 HP
-
With Shell:
-
Water, Dust, Noise Proof

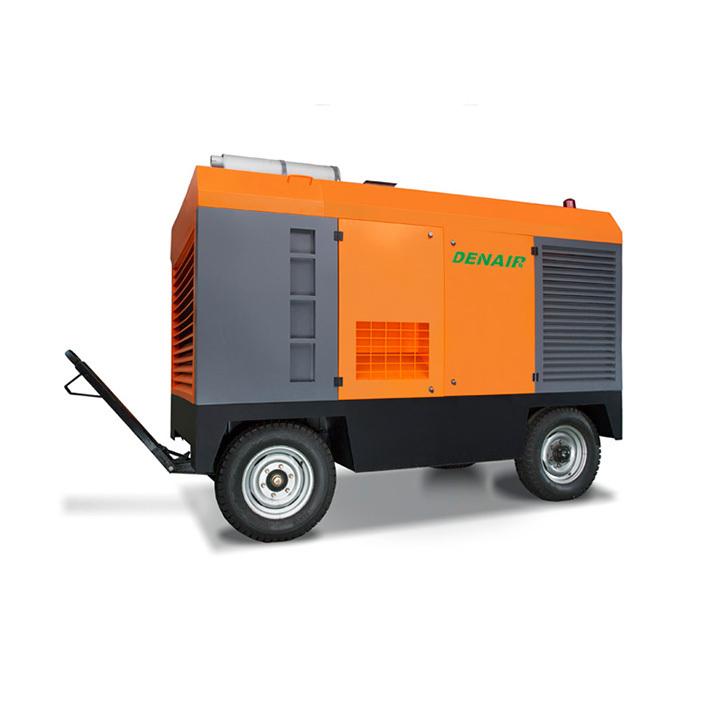

Diesel Engine Portable Mobile Towable Rotary Screw Air Compressor Advantages
- Use Germany KAPP machine and German manufacturing technique to process the compre ssion element, the components manufactured to the highest standards and precision aligned roller-bearings ensure long service life with maximum reliability .
- Heavy-duty CUMMINS diesel engine for extended operation.
- Excellent components, for example, Germany MANN oil filter and Siemens electronics for high performance.
- Automatic operation system helps the operator to master the operating skills quickly, unattended operation and remote control are available.
- Conform to CE , ISO9001 and energy saving certification , etc.
-
Applications: mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry,
quarry,
sandblasting,
pip
eline
pressure test, public works, etc.
Main Structure
Diesel Engine:
-
Heavy Duty and Less Fuel Consumption Compared to Similar engine Designs, better in durability and longevity.
Superior Air Filter and Oil Filter:
- Superior air filter with two-stage dust removal and filtering system with effciency of up to 99.9% even in heavy-duty environments
- Extends the service life of the compressor parts and components, ensures high air quality
- Quality oil filter with excellent oil purification capability ensures a clean and safe oil system
- Long service period and easy filter change reduce maintenance costs.
State-of-the-art Screw Element:
- Original DENAIR air end
- Advanced SAP profile design
- The material of the rotors is Americal specialty steel
- Superior Sweden SKF element bearings
Technical Parameters
| DENAIR Hot Sale Series Diesel Portable Air Compressors | |||||||||
| Model | Machine | Diesel Engine | |||||||
| Free Air | Normal | Dimensions | Weight | Manufacturer | Model |
Rated Power |
|||
| Delivery | Working Pressure | (Without Towbar) | |||||||
| M3/min | CFM | Bar(e) | Psig | L*W*H(mm) | kg | kw | |||
| DACY-3.2/8 | 3.98 | 140 | 8 | 116 | 2265*1590*1575 | 900 | Yangdong | YSD490G | 32 |
| DACY-5/7 | 5.72 | 202 | 7 | 102 | 3075*1900*2040 | 1350 | Cummins | QSB3.9-C80-31 | 60 |
| DACY-6/7 | 5.83 | 206 | 7 | 102 | 3075*1900*2040 | 1350 | |||
| DACY-7.5/7 | 7.50 | 265 | 7 | 102 | 3075*1900*2040 | 1350 | |||
| DACY-9/14 | 9.00 | 318 | 14 | 203 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-10/13 | 10.05 | 355 | 13 | 189 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-8.5/10 | 10.10 | 357 | 10 | 145 | 3220*2000*2355 | 1700 | QSB3.9-C130-31 | 96 | |
| DACY-11/10 | 11.27 | 398 | 10 | 145 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-12/7 | 12.00 | 424 | 7 | 102 | 3220*2000*2355 | 1700 | QSB3.9-C130-31 | 94 | |
| DACY-10/20 | 12.52 | 442 | 20 | 290 | 3125*1770*2770 | 4000 | QSC8.3-C215-30 | 163 | |
| DACY-13/8 | 13.00 | 549 | 8 | 116 | 3530*2090*2325 | 2050 | QSB5.9-C150-31 | 113 | |
| DACY-14/12 | 14.00 | 494 | 12 | 175 | 3125*1760*2600 | 3600 | QSB5.9-C180-31 | 132 | |
| DACY-22/20 | 22.00 | 777 | 20 | 290 | 4000*2300*2750 | 5500 | QSL8.9-C360-30 | 264 | |
| DACY-32/10 | 32.00 | 1130 | 10 | 145 | 4720*2160*3200 | 5500 | QSZ13-C400-30 | 298 | |
| DACY-33/35 | 33.47 | 1185 | 35 | 508 | 4510*2160*3170 | 6900 | KTA19-P700 | 522 | |
| DACY-45/10 | 47.77 | 1687 | 10 | 145 | 4720*2160*3200 | 6900 | QSZ13-C550-II | 415 | |
Specifications are subject to change without prior notice)
>> 50 more models, pls
inquire to us online!
