Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS
-
Capacity:
-
350kgs
-
Travel:
-
250mm
-
Wheel:
-
6inch rubber wheel
-
Bracket style:
-
Swivel mul-hole bracket (U bolt)
-
Bracket height:
-
290mm
-
Body height:
-
540mm
-
Finish:
-
Clear Zinc Plated
-
Pallet Quantity:
-
110EA
-
Pallet size:
-
120*90*110cm
-
Mount bracket:
-
Weld/bolt-on swivel Bracket
Quick Details
-
OE NO.:
-
None
-
Max Payload:
-
350kgs
-
Size:
-
250mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TS
-
Capacity:
-
350kgs
-
Travel:
-
250mm
-
Wheel:
-
6inch rubber wheel
-
Bracket style:
-
Swivel mul-hole bracket (U bolt)
-
Bracket height:
-
290mm
-
Body height:
-
540mm
-
Finish:
-
Clear Zinc Plated
-
Pallet Quantity:
-
110EA
-
Pallet size:
-
120*90*110cm
-
Mount bracket:
-
Weld/bolt-on swivel Bracket
Product Description

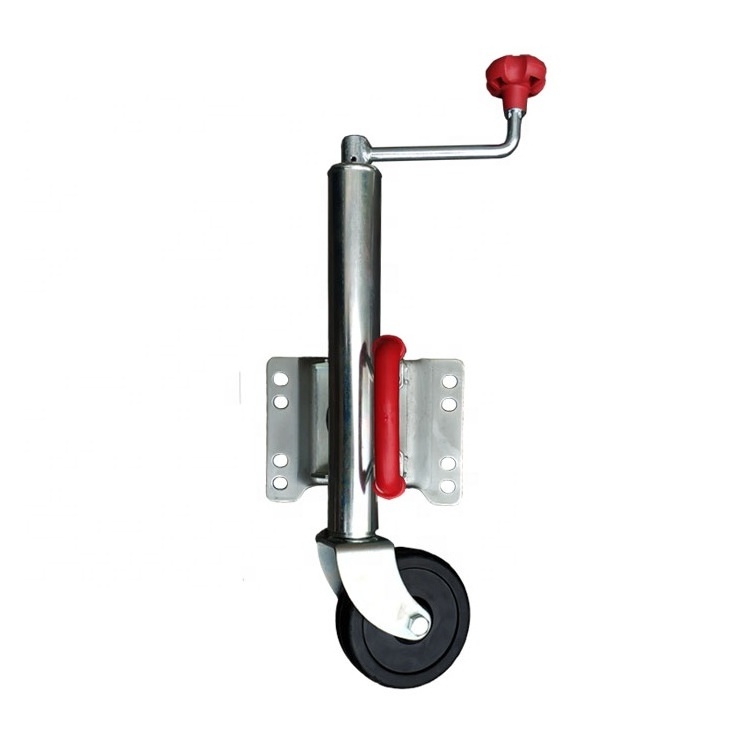

This Jockey Wheel features a 6" rubber wheel, with a fixed mounting, 250mm trqvel and a quality clear zinc finish, features a maximum load of 350kg. new designed 4-bolt swivel mounting bracket provide more side-capacity. U bolt sold separately.
- Rubber wheel for lower noise
- Quality clear zinc finish for longer lasting finish
- Superior load rating
- Salt spray testing: more than 72 hours.
|
|
|
03) How to make sure the correct sizie of the Jack stands
Here is some important points to make sure you buy the correct size of Jack to fit your lovely Trailer or equipment.
| Capacity | contain Static capcacity/ lift capacity |
| Travel | the length of the Jack remove in vertical direction (or call that the lenght of the screw can move) |
| Bracket height | measure from the center of the bracket to the ground(foot),should notice the retracted and extended height |
| Body height | measure form the top of jack to the ground (foot), should notice the retracted and extended height |
| Salt spray testing | standard requirement of anti-corrosive. the units is: hour |
| Life Cycle | means how many times you can use this Jack |
