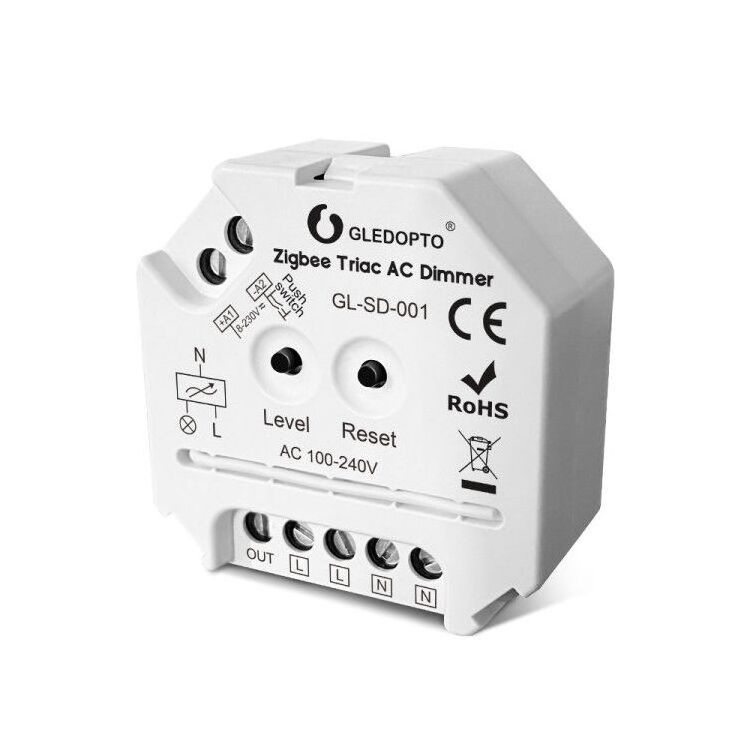

Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded
Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded
Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded
Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded
Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded
Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded
Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded
Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded

Silicon Controlled Dimmer Replacement Triac AC Dimmer 1 channel For Incandescent Bulb 400w Max Loaded

FOB Reference Price: Get Latest Price
≥50 Pieces
US $17
≥100 Pieces
US $15.5
≥1000 Pieces
US $14.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Product Weight（kg）:
0.09
Place of Origin:
Guangdong, China
Brand Name:
GLEDOPTO
Connection Mode:
Zigbee+RF
Name:
Zigbee Triac AC Dimmer
input&output:
AC 100V-240V
Dimming method:
Trailing edge dimming
Max current:
1.5A
Protocol:
ZIGBEE3.0&RF
Application:
lighting RGB color and white adjustment
Remote Control Distance:
30meter
Power loaded:
max 400W
Multiple controlling ways:
APP, Voice, Push Switch, Press Button, 2.4G RF Remote Control
Mesh feature:
good for long distance wireless controlling

Quick Details

Warranty(Year):
2-Year
Type:
Remote Control
Max. Load Power:
400W
Product Weight（kg）:
0.09
Place of Origin:
Guangdong, China
Brand Name:
GLEDOPTO
Connection Mode:
Zigbee+RF
Name:
Zigbee Triac AC Dimmer
input&output:
AC 100V-240V
Dimming method:
Trailing edge dimming
Max current:
1.5A
Protocol:
ZIGBEE3.0&RF
Application:
lighting RGB color and white adjustment
Remote Control Distance:
30meter
Power loaded:
max 400W
Multiple controlling ways:
APP, Voice, Push Switch, Press Button, 2.4G RF Remote Control
Mesh feature:
good for long distance wireless controlling
Product Presentation
Strong Mesh feature, good for long distance wireless controlling
Minimum brightness settable, dimmable from min. to 100% full brightness
Trailing edge dimming design, anti-interference, soft power on/off, good for long term use of lights
Max 30pcs ZigBee remoters controllable through touchlink pairing
ABS flame retardant material shell, safe for application
Screw terminals design, easy and reliable for connection
Mini size design, easy for installation into wall switch socket box
Product Name
ZIGBEE Triac AC Dimmer
Function
Fit for dimmable LED lights/drivers, incandescent or HV halogen lamps, LV halogen lamps powered by electronic transformer.
Input&output
100-240Vac
One Channl
1.5A
Power loaded
400W
Multiple controlling ways
APP, Voice, Push Switch, Press Button, 2.4G RF Remote Control
Product Description


  • GLEDOPTO

  • ZIGBEE Triac AC Dimmer

Standard ZigBee 3.0 protocol, compatible with universal ZigBee bridge or coordinator
Wide input&output 100-240Vac, 1xCH, max 400W power loaded

Fit for dimmable LED lights/drivers, incandescent or HV halogen lamps, LV halogen lamps powered by electronic transformer.
Product Usage
PARING WITH ZIGBEE BRIDGE FOR SMARTPHONE CONTROL
1. plugGLEDOPTO light source to a power supply
2. connect the Zigbee Bridge(optional)to a power supply and connect to your router
3. download and install the Zigbee Bridge App
4. Search and connect the light on the App's settings
5. create and modify your own zigbee network

PAIRING WITH 2.4g RF
TOUCH REMOTE CONTROL
MATCH (more about “DELETE process” please refer the User Instruction)
1. battery power the wall switch or manual remote control
2. within 3s of power on the gledopto light source, press zone “I” (of any group you want the light in) to do the pairing.
3. the indicator turns green to show successfully paring
4. create and modify your own RF lights system
Application
Company Introduction
Shenzhen GLEDOPTO Co., Ltd is a wholesale company that manufactures good & high quality ZIGBEE LED controller and led lights, starting from 2005. The company provides the customized products and OEM service. Various new collections and design are coming out each season with the latest design. The factory own the proficient skill and updated machine.


Q1. How to proceed an order for led light?
1. Let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Customer confirms the samples and places deposit for formal order.
4. We arrange the production and delivery date.

Q2: Do you offer guarantee for the products?
Yes, we offer 2-5 years warranty to our products.

Q3: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Then, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
