Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DongMeng
-
Voltage:
-
220v,380v
-
Dimension(L*W*H):
-
various
-
Weight (KG):
-
5.6 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Type:
-
cement belt conveyer
-
Belt:
-
Rubber
-
Application:
-
Mining, quarry, metallurgy
-
Instalation:
-
Engineers to guide
-
factory history:
-
since 2000
-
factories:
-
two
-
xcmgg supplier:
-
yes
-
nylon layers:
-
customerized
-
sample in stock:
-
yes
Quick Details
-
Power:
-
2.2-30kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
400-1400mm
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DongMeng
-
Voltage:
-
220v,380v
-
Dimension(L*W*H):
-
various
-
Weight (KG):
-
5.6 kg
-
After-sales Service Provided:
-
Overseas service center available
-
Type:
-
cement belt conveyer
-
Belt:
-
Rubber
-
Application:
-
Mining, quarry, metallurgy
-
Instalation:
-
Engineers to guide
-
factory history:
-
since 2000
-
factories:
-
two
-
xcmgg supplier:
-
yes
-
nylon layers:
-
customerized
-
sample in stock:
-
yes

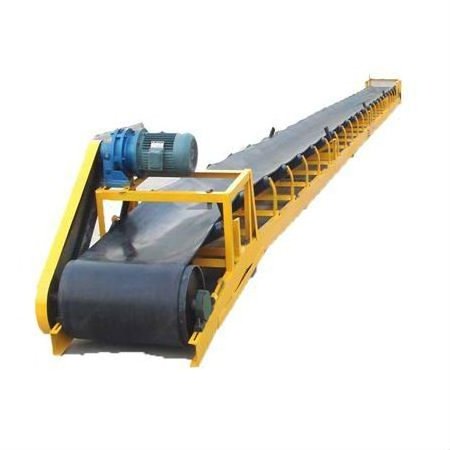

cement belt conveyor certified by CE ISO9001:2008 GOST
Feature of conveyor belt:
2. Simple structure, easy maintenance, low power consumption;
3. According to different transferring requirement, the transfer system can be one independently or multi-conveyors or
combined with other transfer equipments;
4. The belt conveyors can be operated in the circumstance temperature range from -20 °Cto +60°C, and the temperature of
transferred material should be lower than 50°C;
5. Can be used as the corollary equipment of stone crusher.
Application of conveyor belt:
This transmission equipment is widely used to transfer sandy and lump material, or packaged material in mining, metallurgical
and coal industry, etc.
Technical Parameters of conveyor belt:
| Belt Width (mm) | Belt Length/Power(L/kW) | Transmission Speed (m/s) | Production Capacity (t/h) | ||
| A(L/kW) | 2B(L/kW) | C(L/kW) | |||
| B400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 30-60 |
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 40-80 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 50-100 |
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 80-180 |
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2 | 150-300 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-2 | 200-400 |
| B1400 | ≤10/15 | 10-20/18.5 | 20-40/18.5-45 | 1.3-2 | 300-600 |
Delivery for Stationary crushing plant and cement belt conveyer:
Export standard container 20GP OR 40GP,40HQthe spare parts in wooden case.
1) Pre-sale service:
Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service:
Accompany you to complete the acceptance of the equipment,draft the construction scheme and
detailed process, and complete process of export.
3) After-sales service:
We sent engineer to the scene to guide installation, debugging and training operators.
4) Service supervision:
Any dissatisfaction on service attitude, service skills, quality and morality of our technical staff , please feel free to contact us by
dialing 24 hours hot line:0086-21-68911957.
