Quick Details
-
Color Print Speed:
-
42s per card
-
Max. Resolution:
-
300dpi
-
Brand Name:
-
Seaory
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
383*174*208mm
-
NT Weight:
-
6.8KG
-
Size:
-
383*174*208mm
-
Capacity:
-
Input 100 cards, out put 50 cards
-
Cache capacity:
-
128 MB
-
Print Speed:
-
3~5 s per card(single-sided) / 7~12 s per card(dual-sided)
-
Card Material:
-
PVC / Composite PVC / Other material upon request and validation
-
Power supply:
-
100-240V, 50-60Hz
-
Card Thickness:
-
0.3-1.05mm
-
Read-write module:
-
Supports contact chip, LF, HF, UHF chip, and magnetic stripe
-
Module protocol:
-
ISO 7811, ISO7816, ISO 14443 Type A/B, EPC C1 GEN2/ ISO 18000 -6C
Quick Details
-
Interface Type:
-
USB & Ethernet
-
Max Paper Size:
-
CR80
-
Black Print Speed:
-
7-12s per card
-
Color Print Speed:
-
42s per card
-
Max. Resolution:
-
300dpi
-
Brand Name:
-
Seaory
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
383*174*208mm
-
NT Weight:
-
6.8KG
-
Size:
-
383*174*208mm
-
Capacity:
-
Input 100 cards, out put 50 cards
-
Cache capacity:
-
128 MB
-
Print Speed:
-
3~5 s per card(single-sided) / 7~12 s per card(dual-sided)
-
Card Material:
-
PVC / Composite PVC / Other material upon request and validation
-
Power supply:
-
100-240V, 50-60Hz
-
Card Thickness:
-
0.3-1.05mm
-
Read-write module:
-
Supports contact chip, LF, HF, UHF chip, and magnetic stripe
-
Module protocol:
-
ISO 7811, ISO7816, ISO 14443 Type A/B, EPC C1 GEN2/ ISO 18000 -6C

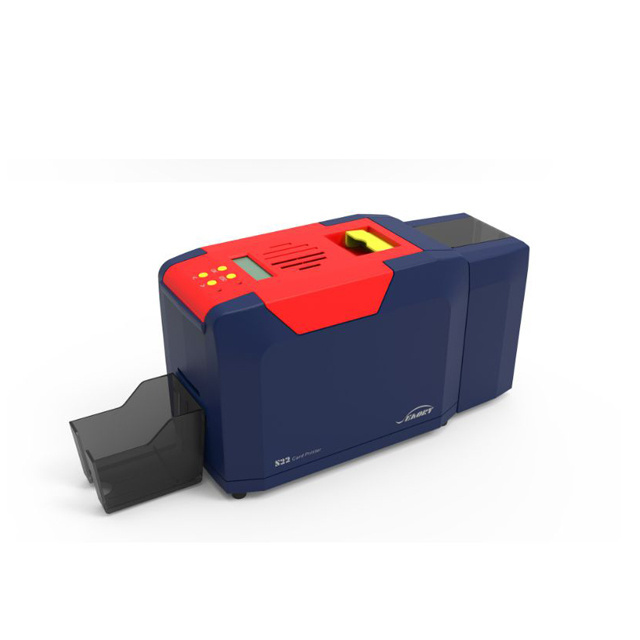

S22 card printer
As a dye-sublimation DTC printer, it has high quality and high efficiency in batch printing.
The software is simple, powerful, and easy to operate, can connect to the database.
The printer was designed for high volume, low cost printing, and a variety of expansion modules can be added.
Product Description
Read and write module
In order to enable customers to print information on the card surface and write information into the chip at the same time, we have developed a variety of modules installed into the printer to meet customer needs.
●
The UHF chip card read-write module supports EPC C1 GEN2/ ISO 18000-6C air interface protocol standard, and the operating frequency is 840 ~ 960MHz
●
Contact and contactless chip card read-write module , supporting the contactless ISO7816, contactless ISO 14443 Type A/B protocol and common CPU card and PC/SC protocol
Ribbon
HD quality images and text, not easy to fade.
Specification
|
Model
|
S20/S21/S22 Desktop Card Printer
|
|
Specifications
|
S20: 244*160*208mm, 4.5KG
S21: 293*174*211.6mm, 4.9kg
S22: 383 x 174 x 208 mm, 6.8Kg
|
|
Interfaces
|
USB & Ethernet
|
|
Capacity
|
Input 100 cards, out put 50 cards
|
|
Pint Speed
|
Monochrome: 3~5 s per card(single-sided)/ 7~12 s per card(dual- sided);
Color: 20 s per card(single-sided)/ 42 s per card(dual- sided).
|
|
Card Material
|
PVC / Composite PVC / Other material upon request and validation
|
|
Power
|
100-240V, 50-60Hz
|
|
Print Dimension
|
ISO CR80 (53.98mmx85.60mm), edge-to-edge printing
|
|
Print Resolution
|
Optional: 300 dpi × 600 dpi，300 dpi × 1200 dpi
|
|
Cache capacity
|
128MB
|
|
Print Method
|
Dye sublimation (Direct-to-card)
|
|
Card Thickness
|
0.3-1.05mm
|
|
LCM Display
|
Chinese: 8 characters per line, 2 lines / English: 16 characters per line, 4 lines / Multi-language
|
|
Operation System
|
Driver: support Windows system (32 or 64 bit). Android Card design software: ICARDE
|
|
Warranty
|
Artificial damage excluded: Card printer : 24 months .Print head: Replace one for free within 1 year
|
|
Operating Condition
|
1. Regular running temp.: 15°C-30°C.
2. Lowest / Highest running temp.: 0°C/ 40°C. |
|
Storage Condition
|
-5°C-70°C
|
|
Certificates
|
ccc, FCC, CE, ROHS, BIS
|
Packing & Delivery
Packaging
with carton
for each printer , containing a variety of accessories, t
o facilitate the use of customers.
FAQ
|
Fault codes
|
Fault name
|
Reason
|
Solution
|
|
CODE:43
|
Ribbon missing
|
Ribbon uninstalled
|
Install ribbon according to operating manual
|
|
CODE:46
|
Ribbon out
|
Replace a new ribbon
|
Replace a new ribbon according to operating manual
|
|
CODE:5F
|
Card out
|
Place some cards
|
Place some cards according to operating manual
|
|
CODE:21
|
Printer cover is open
|
Top cover of the printer is not closed
|
Close the printer cover
|
|
CODE:22
|
Reject box open
|
Reject box is open
|
Close reject box
|
|
CODE:23
|
Reject box full
|
Reject box is full
|
Take out defective cards
|
|
CODE:51
|
Card feed error
|
Thickness of card feeding entrance setting is wrong
|
Adjust the feed card thickness according to the operation manual
|
|
CODE:11
|
Card jam
|
Unusual card jam
|
Clean the card moving roller regularly according the to operation manual
|
|
CODE:44
|
Ribbon unsupport
|
Ribbon chip unsupport
|
Check the ribbon details by the driver or LCM,and contact the local distributor
|
Q1:When card printer no action
* Verify that the card printer driver is installed correctly
* Check power and USB cable connections
* Check ribbons and cards
* Print test picture
* Check power and USB cable connections
* Check ribbons and cards
* Print test picture
Q2:When print out the blank card
* Check ribbons and cards
* Please reset the card printer’s parameters by driver (Print option - Tool - Position Calibrate - Reset to factory default ) Or
adjust the L,T and S value
* Try to print again after adjust
* Check whether the printing card is CR-80 standard
* Please reset the card printer’s parameters by driver (Print option - Tool - Position Calibrate - Reset to factory default ) Or
adjust the L,T and S value
* Try to print again after adjust
* Check whether the printing card is CR-80 standard
Q3:When partial or error printing
* Check the card printer’s setting
* Check the cable and ribbon
* Make sure the cleaning roller is clean
* Check the card is clean or not
* Check the print head
* Check the cable and ribbon
* Make sure the cleaning roller is clean
* Check the card is clean or not
* Check the print head
Q4:When the printed card has a defect
* The card surface is not clean
* Please clean the card printer by cleaning card
* Print head is not clean or damaged, need to wipe cleaning or replace
* Check whether the cleaning roller need to replace
* Please clean the card printer by cleaning card
* Print head is not clean or damaged, need to wipe cleaning or replace
* Check whether the cleaning roller need to replace
Q5:When the printed card appears with a white line
* Check whether the ribbon is proper installed
* Check whether the print head is not clean or damaged
* Check whether the print head is not clean or damaged
Q6:When the printed card appears white vertical or color lines
* Print head maybe was damaged
Q7:When the printed card appears blurry image
* Check whether the ribbon is proper installed
* Check whether the cleaning roller or print head is not clean
* Check whether the printing card is CR-80 standard
* Check whether the cleaning roller or print head is not clean
* Check whether the printing card is CR-80 standard
