Quick Details
-
Model Number:
-
GNB-04A
-
Product name:
-
Welding Inspection Bridge Cam Gauge
-
Material:
-
Stainless Steel Bridgecam Gauge
-
Color:
-
Silver GAL Gage
-
OEM/ODM:
-
Workable
-
Packing:
-
Black Leather Bags or Box
-
Type:
-
welding inspection tools
-
Application:
-
Welding Inspection
-
Feature:
-
High Precise POCKET BRIDGE CAM GAUGE
-
Keyword:
-
Bridge Cam gage
-
Usage:
-
Welding Measuring
Quick Details
-
Warranty:
-
0.3 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GueNineBo
-
Model Number:
-
GNB-04A
-
Product name:
-
Welding Inspection Bridge Cam Gauge
-
Material:
-
Stainless Steel Bridgecam Gauge
-
Color:
-
Silver GAL Gage
-
OEM/ODM:
-
Workable
-
Packing:
-
Black Leather Bags or Box
-
Type:
-
welding inspection tools
-
Application:
-
Welding Inspection
-
Feature:
-
High Precise POCKET BRIDGE CAM GAUGE
-
Keyword:
-
Bridge Cam gage
-
Usage:
-
Welding Measuring

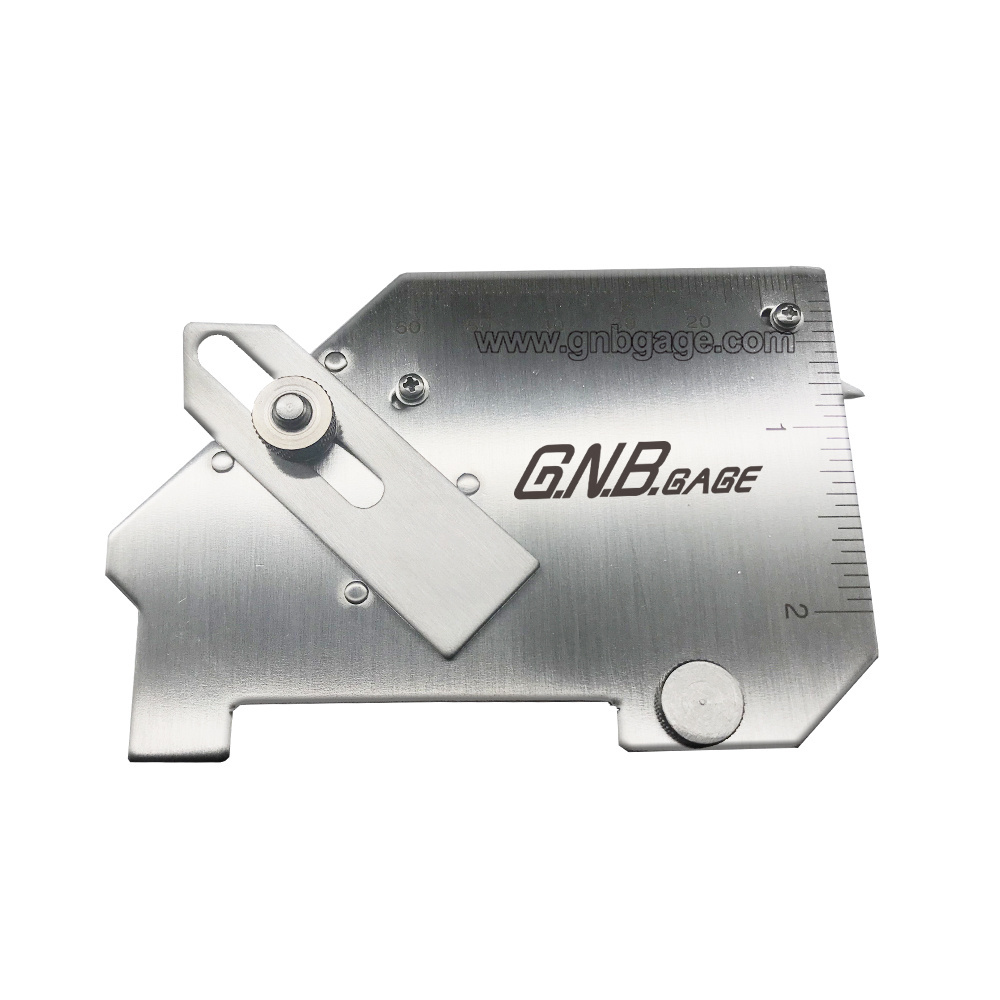

2023 Hot Selling GNBGAGE CE/ROHS Approved Top Quality Low Pricing GNB-04B Welding Inspection Bridge Cam Gauge
Bridge Cam Gauge Specifications.
The most popular Weld Measuring Gauge and a must-have for Welding Inspectors. With the #4 Bridge Cam Gauge, t he following measurements are possible in either inches or millimeters: Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, Weld Throat Size, and more. Scale: Dual Metric/Imperial.
- Be made of Stainless Steel, and the surface brushed treatment.
- Laser Scale, so clear to read and the high accuracy, as well as wear-resistant.
- Be finished by multi process technology.
- Very durable, used the thickness design.
- Note: Adjustable scale to compensate for point wear.
- Angle of preparation, 0° to 60°
- Excess weld metal (capping size)
- Depth of undercut
- Depth of pitting
- Fillet weld throat size
- Fillet weld length
- Misalignment (high-low)
- General linear measurements up to 60 mm or 2 inches.
- Bridge Cam Gauge Cambridge Gauge / Universal Welding Gauges are Approved by TWI / CWB / GSI SLV.
- The GAL GAUGE Supplied in a case with instructions
GNB-04B Welding Inspection Gauge Datas.
| Items | Weld Gauge Measurement | Range | Graduation | Accuracy |
|
GNB-04B Bridge Cam Gauge |
Crown Height | 0-25mm (0-1") | 1mm/(1/16)" | ±0.5mm |
| Fillet Weld Throat Size | 0-25mm (0-1") | 1mm/(1/16)" | ±0.5mm | |
| Misalignment (high-low) | 0-25mm (0-1") | 1mm/(1/16)" | ±0.5mm | |
| Undercut Depth |
0-2mm (0-1/8") |
1mm/(1/16)" | ±0.5mm | |
| Fillet weld throat size | 0-20mm (0-3/4") | 1mm/(1/16)" | ±0.5mm | |
| Angle of preparation | 0-60° | 5° | ±1° | |
| Fillet weld length | 0-60mm (0-2") | 1mm/(1/16)" | ±0.5mm | |
| 45° Angle | / | / | ±1° |
