Quick Details
-
Material:
-
Carbon steel plate
-
Function:
-
Emergency stop
-
Operating temperature:
-
-10-70℃
-
Product type:
-
IP65
-
Action method:
-
Restoration
-
Warranty:
-
365days
-
Certificate:
-
CE,CCC,ISO
-
Electrical Life:
-
100 0000 times above
-
Cable type:
-
2m RVV 0.5mm^2
Quick Details
-
Max. Voltage:
-
250Vac
-
Place of Origin:
-
Zhejiang, China
-
Item:
-
Foot Switch
-
Material:
-
Carbon steel plate
-
Function:
-
Emergency stop
-
Operating temperature:
-
-10-70℃
-
Product type:
-
IP65
-
Action method:
-
Restoration
-
Warranty:
-
365days
-
Certificate:
-
CE,CCC,ISO
-
Electrical Life:
-
100 0000 times above
-
Cable type:
-
2m RVV 0.5mm^2
WHY CHOOSE US?
1. More than 20 years experience on producing and developing micro switch, inductive switch, pull switch,foot switch.Have our own brand " SAKADY ".
2. High quality raw materials, long life and secure switches.
3. Dust-free plant, strict quality control, provide you satisfactory switches.
4. CE, CCC, UL, ROHS Certificates.
5. Plentiful stocks, solve your urgent needs.

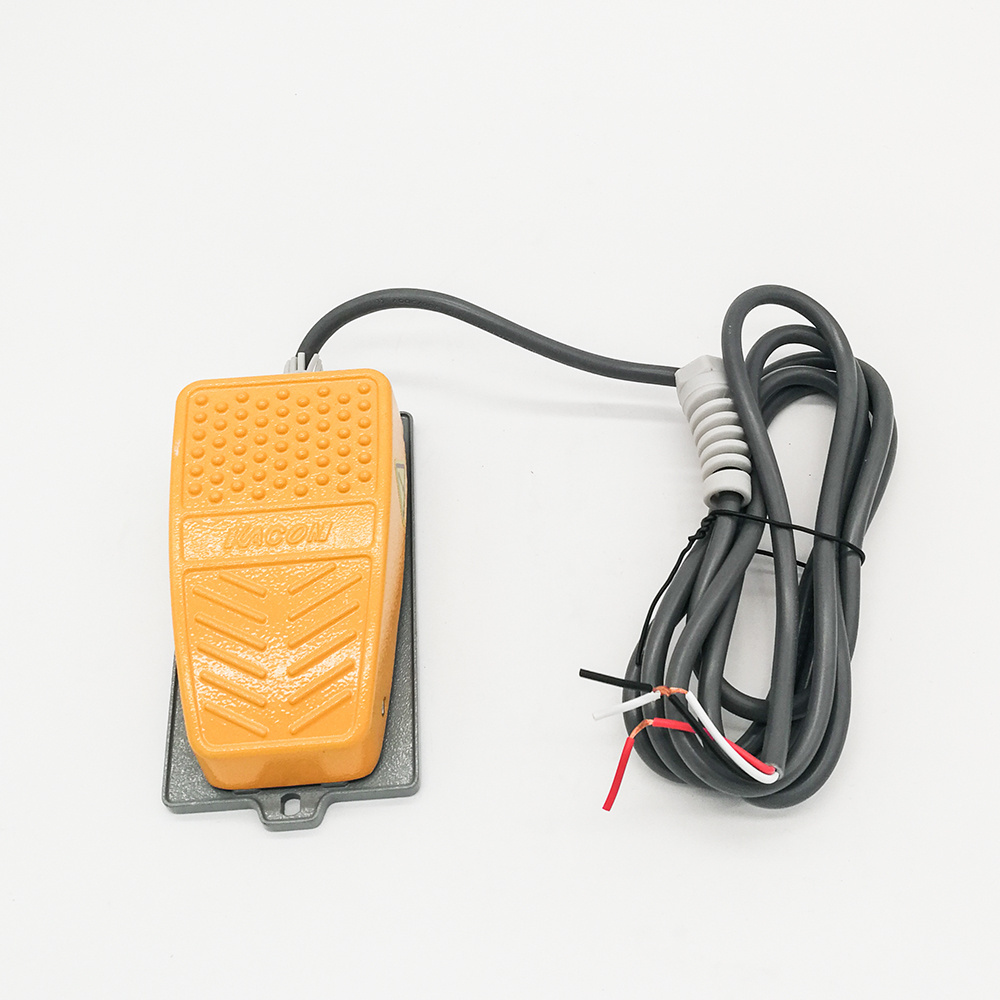

10A 250V Waterproof Foot Pedal Switch with Cable Gland
- Kinds of shell’s material for choice, such as engineering plastic, steel panel, aluminium alloy, etc;
- Metal shell use the stregenthening to reast the surface, bears the impact, the wearability, thermostable;
- Cable lock-in jacket is made for the cable coming out and it is waterproof, grease proofing;
- Switch bottom is equipped with the rubber pad, for skidproof;
- Widely used for control in industrial automation equipments, transport, pressing, medical treatment, test and etc.
Specifications:
1.Cable lock-in jacket is made for the cable coming out and it is waterproof,grease proofing.
2.Switch bottom is equipped with the rubber pad,for skidproof.
3.Widely used for control in industrial automation equipments,transport,pressing,medical treatmen,test and etc.
Basic Parameters:
| Contact Resistance | 25mΩ (initial value) |
| Insulation Resistance | 100mΩ (Above) DC500V |
| Withstand Voltage | ≥2000VAC |
| Mechanical Life | 1,000,000times Above |
| Electrical Life | 100,000times Above |
| Opeartating Temperature | -10-70℃ |
| Operating Humidity | ≤85% |
Contact Forms:
|
Item |
Specification |
|
Model Name |
SF-151 |
|
Rating |
10A 250VAC |
|
Contact |
1C |
|
Material of Rind |
Aluminum |
|
Insulation resistance |
≥100MΩ |
|
Contact resistance |
≤25mΩ |
|
Withstand voltage |
2000VAC |
|
Electrical life |
≥100,000 |
|
Protection degree |
IP65 |
|
Temperature |
-25-75°C |
|
Humidity |
<85% |
