Quick Details
-
Brand Name:
-
qianglin
-
Place of Origin:
-
Jiangsu, China
-
Structure:
-
Depends on different specifications
-
Weight:
-
Depends on different specifications
-
Power:
-
0.75KW-37.5KW
-
Dimension(L*W*H):
-
Depends on different specifications
-
Rod Diameter:
-
30
-
Outer Tube Diameter:
-
60
-
Type:
-
Hydraulic Power Units
-
Product name:
-

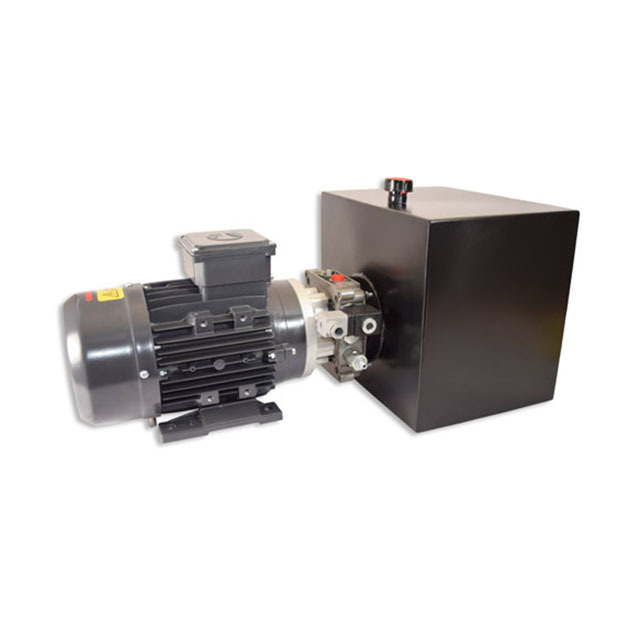

Hydraulic power unit
-
Material:
-
Aluminum alloy/copper/stainless steel / carbon steel
-
application:
-
Construction, agriculture, factory
-
Voltage:
-
DC 12V/24V AC 220V/380V
-
Rated pressure:
-
10MPa~28MPa
-
tank capacity:
-
1.7L~30L,Customized
-
Motor power:
-
0.75KW~3KW
-
Condition:
-
New
-
Certification:
-
ISO,CE
Quick Details
-
Warranty:
-
1 Year
-
Maximum Stroke:
-
240mm
-
Inner Tube Diameter:
-
40
-
Brand Name:
-
qianglin
-
Place of Origin:
-
Jiangsu, China
-
Structure:
-
Depends on different specifications
-
Weight:
-
Depends on different specifications
-
Power:
-
0.75KW-37.5KW
-
Dimension(L*W*H):
-
Depends on different specifications
-
Rod Diameter:
-
30
-
Outer Tube Diameter:
-
60
-
Type:
-
Hydraulic Power Units
-
Product name:
-
Hydraulic power unit
-
Material:
-
Aluminum alloy/copper/stainless steel / carbon steel
-
application:
-
Construction, agriculture, factory
-
Voltage:
-
DC 12V/24V AC 220V/380V
-
Rated pressure:
-
10MPa~28MPa
-
tank capacity:
-
1.7L~30L,Customized
-
Motor power:
-
0.75KW~3KW
-
Condition:
-
New
-
Certification:
-
ISO,CE
Why Choose Us
Products Description
Remark:
1, please consult our engineer for the different pump displacement, motor power, and tank capacity.
2, all the model code above is optional and customization is available on request
Special Notes:
1, Clean all the hydraulic parts concerned before mounting the power unit.
2, The Viscosity of oil should be between 15~68CST.
3, Change the oil after the first 100 hours of the using power unit, then change the oil every 3000 hours.
4, The power unit should be mounted horizontally.
Application:
mini hydraulic power pack, power unit for van truck and other machines, such as vehicle lift, scissors lift, aerial work platform,semi-electric stacker, all-electric stacker, automobile tailgate, tire press, dock leveler, snow removal truck, pallettruck, medical equipment.
