Quick Details
-
Product Name:
-
Magnetic Starter
-
Current (A):
-
9-95
-
Rated operational voltage:
-
380v/220v/600v
-
Range of setting current A:
-
0.1- 93
-
Material:
-
steel base +plastic cover
-
Standard:
-
IEC60947-4-1
-
Warranty:
-
24 Months
-
Application:
-
protect motor from overload and phase failure
-
Feature:
-
3-phase bimetal
-
Package:
-
Original Package
Quick Details
-
Brand Name:
-
ETEK
-
Place of Origin:
-
ZHEJIANG
-
Model Number:
-
EKQ1-09~18
-
Product Name:
-
Magnetic Starter
-
Current (A):
-
9-95
-
Rated operational voltage:
-
380v/220v/600v
-
Range of setting current A:
-
0.1- 93
-
Material:
-
steel base +plastic cover
-
Standard:
-
IEC60947-4-1
-
Warranty:
-
24 Months
-
Application:
-
protect motor from overload and phase failure
-
Feature:
-
3-phase bimetal
-
Package:
-
Original Package
Product Description

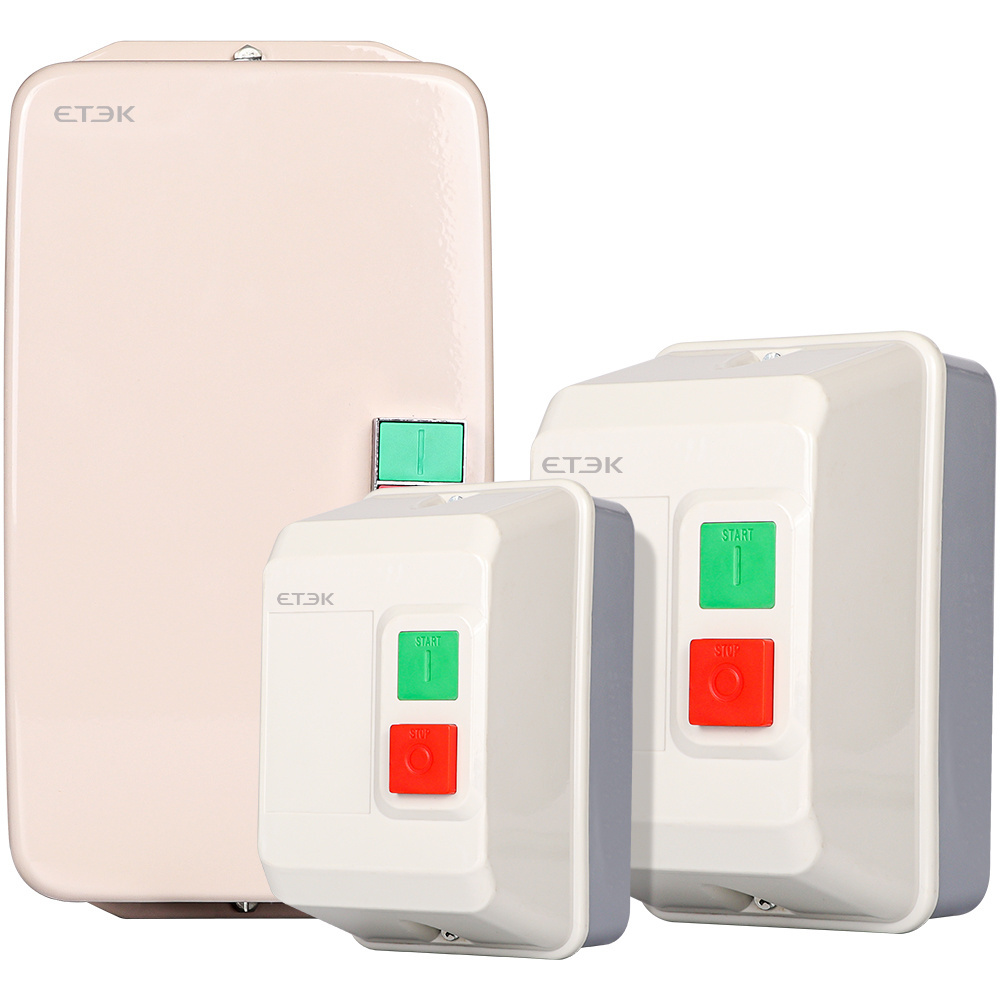

1.EKQ1 series electromagnetic starter ("starter" for short hereinafter) is used to control the making or breaking of contactor by external signal and thermal relay combination and installed in the same metal box, the external switch signals to control according to the contact device connected and points to break, applies mainly to circuit with AC current of 50Hz (or 60Hz), rated operational voltage of 660V and rated controlled power up to 45kW (current up to 95A) for using to control the direct start and halt of the electromotor to protect the motor from overload and phase failure.
2.Feature
* 3-phase bimetal
* Continuously readjust able current settings
* Temperature compensation
* Tripping indicator
* Test button
* Stop button
* Manual and automatic reset button
* Electrically separated 1N/O plus 1N/C contact
* 3-phase bimetal
* Continuously readjust able current settings
* Temperature compensation
* Tripping indicator
* Test button
* Stop button
* Manual and automatic reset button
* Electrically separated 1N/O plus 1N/C contact
Specification
|
item
|
value
|
|
Place of Origin
|
ZHEJIANG
|
|
Brand Name
|
ETEK
|
|
Model Number
|
EKQ1
|
|
Electricity Type
|
AC
|
|
Number of Pole
|
3
|
|
Phase
|
3
|
|
Main Circuit Rating Voltage
|
600V/680V/220V
|
|
Main Circuit Rating Current
|
9A
|
|
Product Name
|
Magnetic Starter
|
|
Current (A)
|
9-95
|
|
Rated operational voltage
|
380v/220v/600v
|
|
Range of setting current A
|
0.1- 93
|
|
Material
|
steel base +plastic cover
|
|
Standard
|
IEC60947-4-1
|
|
Warranty
|
24 Months
|
|
Application
|
protect motor from overload and phase failure
|
|
Feature
|
3-phase bimetal
|
|
Package
|
Original Package
|
