20 Liter Olive Oil Tin Can Making Machine
20 Liter Olive Oil Tin Can Making Machine
20 Liter Olive Oil Tin Can Making Machine
20 Liter Olive Oil Tin Can Making Machine
20 Liter Olive Oil Tin Can Making Machine
20 Liter Olive Oil Tin Can Making Machine
20 Liter Olive Oil Tin Can Making Machine
20 Liter Olive Oil Tin Can Making Machine

20 Liter Olive Oil Tin Can Making Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Xingda
Model Number:
10-18l square can making line
Dimension(L*W*H):
15*10*3M
Certification:
Supplier Assessment
material:
Cr12
container:
40GP
delivery time:
45 days
warantee:
one year

Quick Details

Voltage:
380/220V,50/60HZ
Power:
28KW
Place of Origin:
Jiangxi, China
Brand Name:
Xingda
Model Number:
10-18l square can making line
Dimension(L*W*H):
15*10*3M
Certification:
Supplier Assessment
material:
Cr12
container:
40GP
delivery time:
45 days
warantee:
one year

Our company was established since 1994. We specialize in semi-auto and auto metal cans making machines/complete production lines, such as chemical, food, industrial, paint cans making. Our products include: metal sheet cutting machine, can body rolling machines, seam welding machines, flanging machines, sealing machines, moulds and can lid/end making machines,etc.

1.Main technical parameter:

Max sheet thickness 0.5mm
Diameter Range 50-330mm
Height Range 70-400mm
Usage tin can packing line machine
production capacity 15-20pcs/min
floor area needed 10*15M
workers needed 8-9

2.Function

1) This production line machines is mainly used to make 10-25liter square tin cans, such as paint/oil/glue/ cooking oil/motor oil can, etc.

2) If customers want to make other size of tin cans, just need to change moulds of some machines.

3.More details of each machines of the production line

1) R-40 Guillotine Shear

Model R-40
Max sheet width 1050mm
Max sheet thickness 0.5mm
power 1.1kw
size 1500 ×1100 ×1200mm
weight 1400kg

2)C-20 round forming machine

Model C-20
Thickness of sheet 0.18-0.5mm
Max sheet width 400mm
Diameter range 50-330mm
power 0.75kw
size 900*730*1000mm
weight 150kg

3)Seam welder machine

Model FB2000-A
Diameter range 65-300mm
can Height range 70-420mm
sheet thickness 0.18-0.42mm
production capacity 15cans/min
overlap 0.4mm
power 15kw
size 1200×1100×1800mm
weight 1300kg

4)Square forming and embossing machine

Model YYT-20
Thickness of sheet 0.18-0.5mm
Max sheet width 400mm
suitable range 10-25Ltr irregular cans
power 3.7kw
size 1300*760*1160mm
weight 800kg

5) Y F-18 Hydraulic Flang ing Machine

Model YF-20
Thickness of sheet 0.18-0.5mm
Production capacity 30pcs/min
Suitable range 10-25ltr irregular cans
power 0.75kw
size 1500*800*1850mm
weight 450kg

6) Q4A28 Pneumatic Sealing machine

Model Q4A28
Thickness of sheet 0.18-0.5mm
Production capacity 15pcs/min
Suitable range 10-25ltr irregular cans
power 2.2kw
size 1500*800*1800mm
weight 900kg

7) DN40A Single-Ram Pneumatic Spot Welder

Model DN40A
Thickness of sheet 0.18-0.5mm
Production capacity 30pcs/min
Compressed air 300L/min 0.6Mpa
power 35kw
size 850*550*1350mm
weight 300kg

4) 10-25Ltr square tin can making flow chart

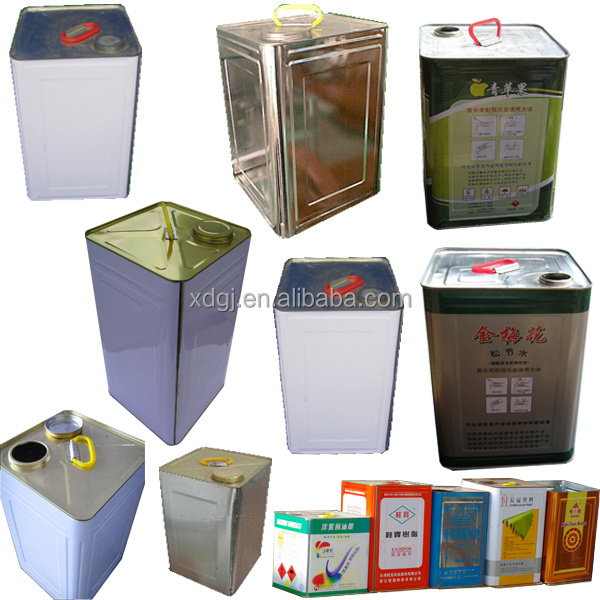

5.Applicable for following tin cans:

6.sample show-case(we specialize in all following tin cans making complete line machines)

7.customer visit

8.Welcome to visit our company for negotiation!

9.mchines package
