Quick Details
-
Brand Name:
-
AELAB
-
Model Number:
-
SH220N/SH420
-
Temperature range:
-
Room temperature +5 - 450℃
-
Temperature accuracy:
-
±1℃
-
Heating insulation method:
-
unique air duct insulation technology
-
Digestion tube capacity:
-
300ml
-
Capacity per batch:
-
20pcs/batch
-
Program storage:
-
500
-
Heating method:
-
Infrared heating and high-purity graphite conduction
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
AELAB
-
Model Number:
-
SH220N/SH420
-
Temperature range:
-
Room temperature +5 - 450℃
-
Temperature accuracy:
-
±1℃
-
Heating insulation method:
-
unique air duct insulation technology
-
Digestion tube capacity:
-
300ml
-
Capacity per batch:
-
20pcs/batch
-
Program storage:
-
500
-
Heating method:
-
Infrared heating and high-purity graphite conduction
Product Description

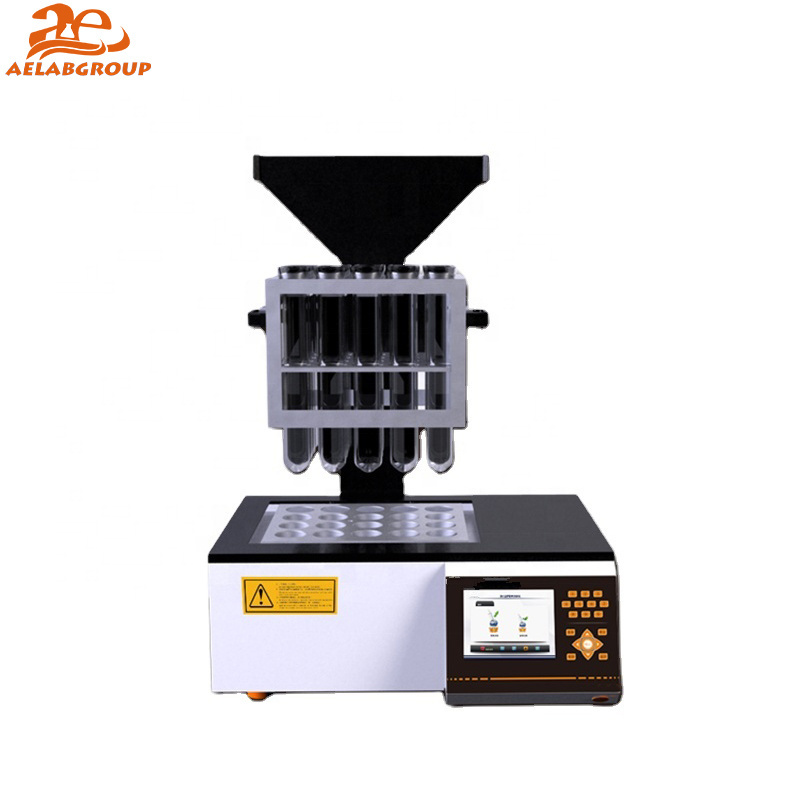

SH420F/SH220F Kjeldahl Digester
Features & Specification
Technical Specifications:
|
Model
|
SH420F
|
SH220F
|
|
Temperature range
|
Room temperature +5 - 450℃
|
●
|
|
Temperature accuracy
|
±1℃
|
●
|
|
Heating method
|
Infrared heating and high-purity graphite conduction
|
●
|
|
Heating insulation method
|
unique air duct insulation technology
|
●
|
|
Digestion tube capacity
|
300ml
|
300ml
|
|
Capacity per batch
|
20pcs/batch
|
20pcs/batch
|
|
Program storage
|
500
|
0
|
|
Temperature Ramping
|
5
|
1
|
|
Time Selection
|
1 to 1440 Minutes - 1 Minute Steps
|
●
|
|
Tube rack support
|
YES
|
NO
|
|
Power
|
3600W
|
●
|
|
Dimensions (mm)
|
515X458X730
|
534X453X218
|
|
Heating method
|
Infrared heating and high-purity graphite conduction
|
●
|
|
Heating insulation method
|
unique air duct insulation technology
|
●
|
|
Tube rack support
|
YES
|
NO
|
Configuration Guide
:
|
Model
|
SH220N/SH420
|
SH220F/SH420F
|
|
Tubes Capacity
|
280mL
|
300mL/280mL
|
|
Kjeldahl Model
|
K9860/K9840/K1100F
|
K9860/K9840/K1100F
|
|
Scrubber
|
S402
|
S402
|
Function configuration:
|
Model
|
SH420
|
SH420F
|
SH220N
|
SH220F
|
|
Heating method
|
Infrared heating and high-purity graphite conduction
|
●
|
●
|
●
|
|
Heating insulation method
|
unique air duct insulation technology
|
●
|
●
|
●
|
|
Temperature Ramping
|
YES
|
YES
|
NO
|
NO
|
|
Tube rack support
|
YES
|
YES
|
NO
|
NO
|
WD03 Waste Gas Collector
S402 Scrubber
1. Using PFA seal cap, extend the service life.
2. Seal cup with quick-lock design, easy exchanging.
3. Adopt three way water jet pump, independent running
without power.
4. Suit for tube diameter from 40mm-42mm
1. Semi-transparent Cartridge, easy to observe, indicate when it should be change.
2. Suction pressure adjustment, avoid acid gas leakage.
3. Using anti-corrosion pump, extend the service life.
4. Condense, neutralization and drying three steps filtration
5. system provide high performance of acid gas treatment.
6. All the materials which contact acid gas made of PTFE
|
Digester
|
Qty
|
Order Number
|
|
Tube (capacity 280mL)
|
1pc
|
203010000000017
|
|
Tube Rack for 280mL tubes
|
1pc
|
f010000000033
|
|
Tube (capacity 300mL)
|
1pc
|
203010000000098
|
|
Tube Rack for 300mL tubes
|
1pc
|
f010000000041
|
|
Tray
|
1pc
|
203020000000340
|
|
Sealing Cap
|
1pc
|
203030000000365
|
|
Tubing
|
1pc
|
203040000000035
|
