Quick Details
-
Model Number:
-
DIN
-
Product Name:
-
Ejector Pin,Return pins,Ejector Blades
-
Performence:
-
Heat-Resistant, Anti-Wear
-
materials of bolt:
-
alloy steel
-
materials of sleeve:
-
PA-66
-
Size:
-
Misumi Standard
-
Package:
-
Plastic box, Bag
-
Color:
-
orange, red, yellow, white, blue, black
-
In stock:
-
Adequate inventory
-
Delivery time:
-
1- 3 Days
Quick Details
-
Shaping Mode:
-
Plastic Injection Mould
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cungang
-
Model Number:
-
DIN
-
Product Name:
-
Ejector Pin,Return pins,Ejector Blades
-
Performence:
-
Heat-Resistant, Anti-Wear
-
materials of bolt:
-
alloy steel
-
materials of sleeve:
-
PA-66
-
Size:
-
Misumi Standard
-
Package:
-
Plastic box, Bag
-
Color:
-
orange, red, yellow, white, blue, black
-
In stock:
-
Adequate inventory
-
Delivery time:
-
1- 3 Days
Free Sample avaliable for bulk order.
|

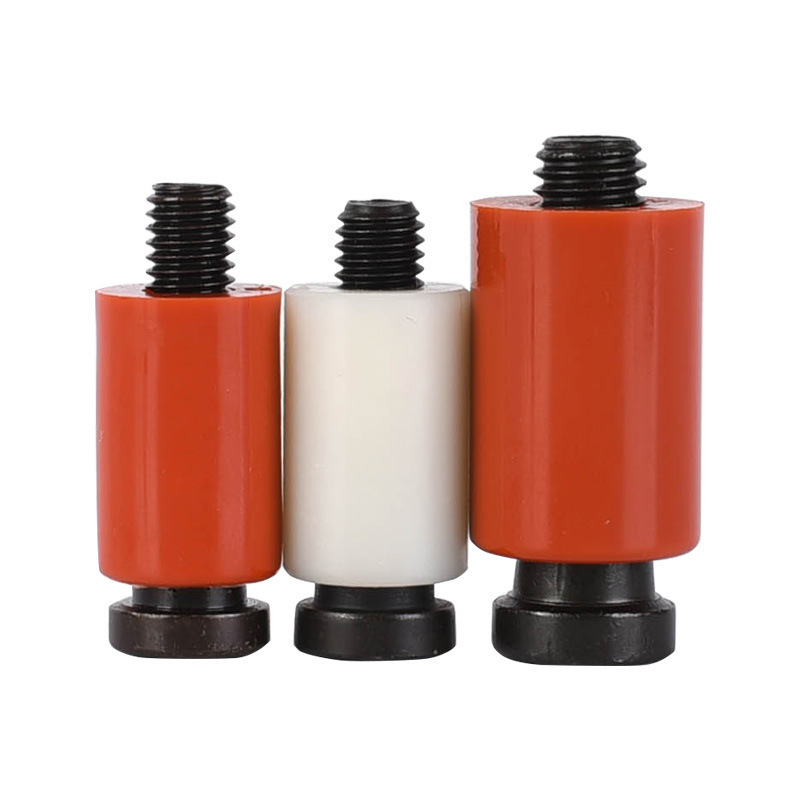

Product Name
|
Mold Parting lock,nylon mold clamp, resin shutter, nylon mold lock, resin mold clamp, nylon resin shutter, etc.
|
|
OE #
|
Please click 'Send Inquiry' button with the part number you need to check if we have stock.
|
|
Mold Parts Make
|
Focus on the production of guide post guide bushes and mold parts wholesale sales
|
|
Shipping terms
|
Fedex, DHL, EMS, TNT and so on
|
|
Packing details
|
bag with box
|
|
Delivery time
|
1-7 days if goods in stock
|
|
Our Advantages
|
1. Material: Nylon Resin +strength alloy steel, JIS standard.
|
|
|
2.Easy to assemble and disassemble.
|
|
|
3.Can also be installed into small, medium-sized, and 2-sectional injecting metal pipes or can be installed on sliding bases.
|
|
|
4.Do not add oil and grease on parting locks, Or else the friction will reduce.
|
|
|
5.Package: Small packed in box 10-16 pieces.
|
|
|
6.Free Sample avaliable for bulk order
|
The Mold Parting Locks Mounting method and Attention
1. Insert the resin sleeve into the movable side of the template approximately 3 mm.
2. Create a hole in the fixed side of the template and complete it to reduce the internal surface roughness.
3. To maintain the durability of the mold parting lock, perform R chamfering on the entrance edge instead of C chamfering. If not
the life cycle will shorten.
4. PLBS bushings specifically designed for use with this split lock help to replace the R chamfer and surface finish process. The
tapered bolt of this mold opening controller can be tightened or loosened to adjust the tension.
5. Place the Parting lock bolt on moving the side of the mold Install min 4 nos. on one mold of 2 nos. each on both sides of the
plate After placement of the Parting locks on the plate, turn the bolt to 90° and the plastic lock will expand
6. Injection Mold weight <100kg using 4 pieces of 12Ø,
Injection Mold weight < 500kg, using 4 pieces of 16Ø,
Injection Mold weight <1,000kg using 4 pieces of 20Ø,
Injection Mold weight >1,000kg, using at least 6 pieces.
If more load is to be puled than the above limit then uses more numbers of Parting locks to be used. i.e. 6 or 8nos
7. Do not apply any lubricant on the plastic part. Doing so will reduce the friction and grip
2. Create a hole in the fixed side of the template and complete it to reduce the internal surface roughness.
3. To maintain the durability of the mold parting lock, perform R chamfering on the entrance edge instead of C chamfering. If not
the life cycle will shorten.
4. PLBS bushings specifically designed for use with this split lock help to replace the R chamfer and surface finish process. The
tapered bolt of this mold opening controller can be tightened or loosened to adjust the tension.
5. Place the Parting lock bolt on moving the side of the mold Install min 4 nos. on one mold of 2 nos. each on both sides of the
plate After placement of the Parting locks on the plate, turn the bolt to 90° and the plastic lock will expand
6. Injection Mold weight <100kg using 4 pieces of 12Ø,
Injection Mold weight < 500kg, using 4 pieces of 16Ø,
Injection Mold weight <1,000kg using 4 pieces of 20Ø,
Injection Mold weight >1,000kg, using at least 6 pieces.
If more load is to be puled than the above limit then uses more numbers of Parting locks to be used. i.e. 6 or 8nos
7. Do not apply any lubricant on the plastic part. Doing so will reduce the friction and grip
Mold parts have a complete industrial chain in China.
We not only provide you with standard parts and customized guide posts and bushings, we can also give you one-stop solutions for mold parts.
Regarding mold parts, we can help you complete the purchase of more products
Nowadays，we can provide some free sample of some products. And you can ask us about other products' sample. And for any other products, there are also many cheap sample.
Click for more product details！
