Quick Details
-
Type:
-
HAVC system
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mango Energy
-
Model Number:
-
#MGWT-350LC
-
Function:
-
Hot Water *Space Heating*Space Cooling
-
Water volum:
-
150L+200L
-
Inner tank material:
-
SUS304/2B
-
Thickness of inner tank:
-
1.5mm
-
Exchanger coil:
-
20M+25M
-
Size (mm):
-
R700*1628
-
N.W./G.W.:
-
92/96 kg
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Hotel, Commercial, Household
-
Power Source:
-
Solar
-
Type:
-
HAVC system
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mango Energy
-
Model Number:
-
#MGWT-350LC
-
Function:
-
Hot Water *Space Heating*Space Cooling
-
Water volum:
-
150L+200L
-
Inner tank material:
-
SUS304/2B
-
Thickness of inner tank:
-
1.5mm
-
Exchanger coil:
-
20M+25M
-
Size (mm):
-
R700*1628
-
N.W./G.W.:
-
92/96 kg
Product Description

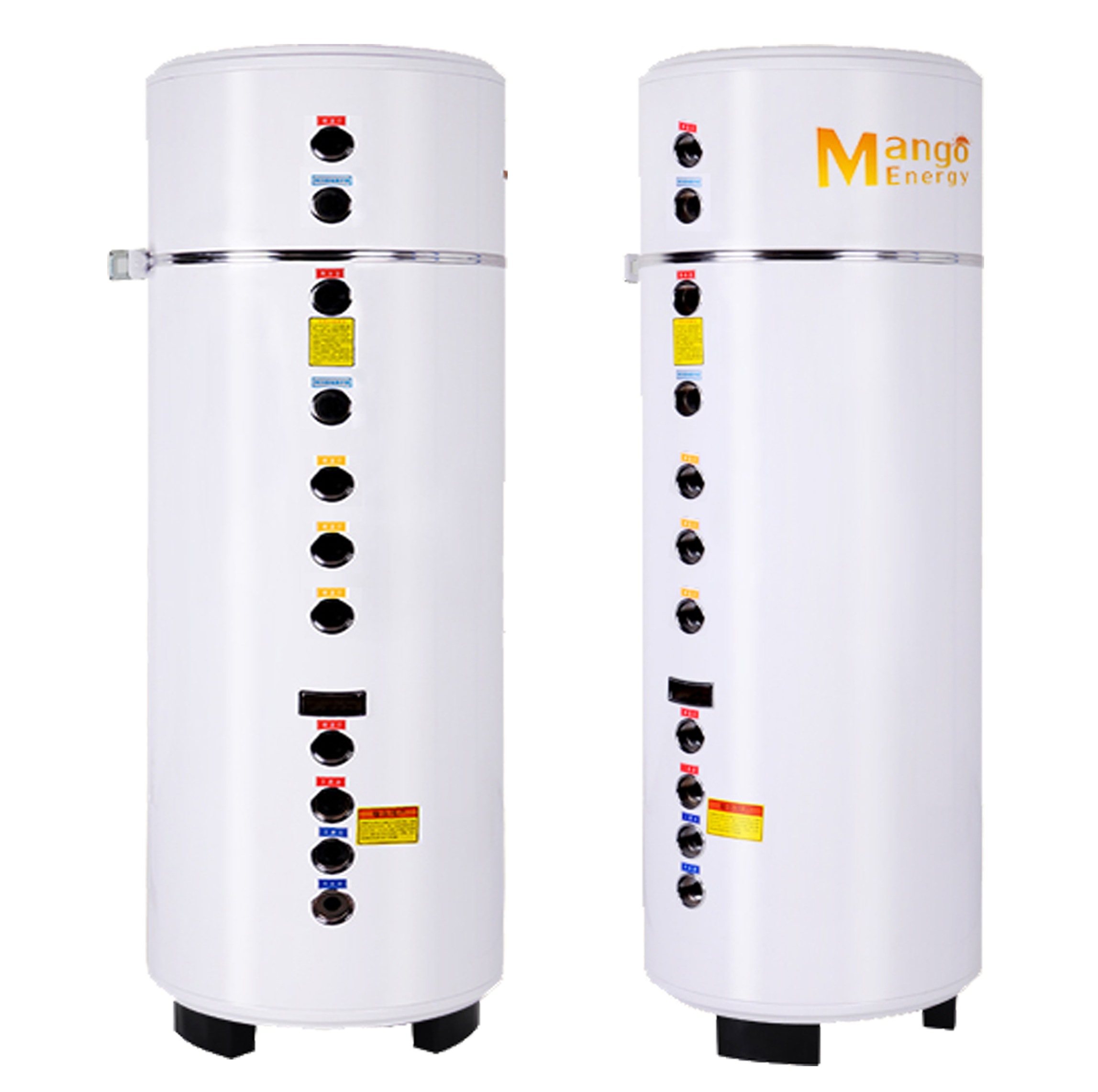

150L+200L Heat Exchanger Coils 2in1 SUS304 Hot Water Storage + Room Heating Buffer in One Tank Body Boiler Trinity HVAC System
1. Two tanks built-in one buffer in house heating system and one for hot water system;
2. Installation room saving, 2 funtion's tanks taking one room only;
3. Each heat exchanger coil built-in, threaded achieving water system separation and heat exchanging at the same time, rapidly increase heat exchanging rate, highly efficient energy saving;
4. Electric heater built-in is optional for each tank to complete auxiliary heating.
5. High-density AVIATION grade Polyurethane heat preservation, 2℃ lost every 10 hour at most.
6. SUS 304 tank liner with 8A class welding, contant and reliable for serving life over 5 years, without any leakage.
7. TRANQUIL FLOW TECHNOLOGY, the adoption of a diffuser pipe on cold water inlet ensures stable water temperatures in cylinder.
With tranquil flow tech: Cold water flows into the tank gently and does not mix with hot water instantly.
Without tranquil flow technology: Cold water flows into the tank rapidly and cause turbulence and mixing in the cylinder which blends water tem perature downwards.
8. Max water temperature can reach 100℃.
Product Features
Specification
|
item
|
#MGWT-3502LC
|
|
Warranty
|
2 Years
|
|
Max Water Temperature
|
100 ℃
|
|
Power Source
|
Solar
|
|
N.W./G.W.
|
92/96 kg
|
|
Liner
|
SUS304
|
|
Inner Tank Thickness (mm)
|
1.5
|
|
Installation
|
Freestanding
|
|
Storage / Tankless
|
Storage
|
|
Housing Material
|
Galvanized steel/Stainless Steel
|
|
Use
|
Bathroom(Household)/Sanitary Hot Water/Hotel/Garage/Commercial
|
|
Type
|
HAVC & hot water system
|
|
Tank size (mm)
|
R700*1628
|
|
Exchanger coils
|
￠22*25M +￠22*20M
|
|
Function
|
Hot Water * Space Heating* Water Chilling
|
|
Water volum
|
150L+200L
|
Details Images
Threaded heat exchanger coil is built in for each tank in one body of
150L+200L Heat Exchanger Coils 2in1 SUS304 Hot Water Storage + Room Heating Buffer in One Tank Body Boiler Trinity HVAC System
Product Application
150L+200L Heat Exchanger Coils 2in1 SUS304 Hot Water Storage + Room Heating Buffer in One Tank Body Boiler Trinity HVAC System
The most inportant
transportation hub
in water system.
Packing & Delivery
Carton box with foam and polywood support for transportation packaging.
150L+200L Heat Exchanger Coils 2in1 SUS304 Hot Water Storage + Room Heating Buffer in One Tank Body Boiler Trinity HVAC System
Welcome customized design according to different project requirements on
150L+200L Heat Exchanger Coils 2in1 SUS304 Hot Water Storage + Room Heating Buffer in One Tank Body Boiler Trinity HVAC System
.
