- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Dowell, Dowell
-
Product Name:
-

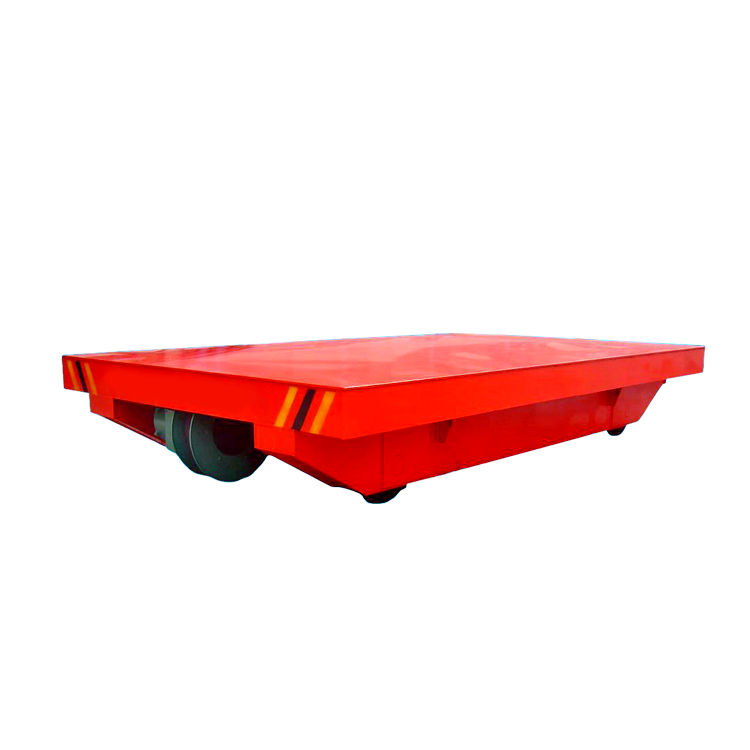

Transfer Cart
-
Capacity:
-
10 ton
-
Advantage:
-
Low cost,self propelled
-
Application:
-
Industry,Warehouse,Workshop,...
-
running speed:
-
0-20M/MIN
-
Size:
-
3000*1800*500 mm
-
Power supply:
-
railways powered
-
Material:
-
Q235
-
Color:
-
Customer Requirements
Quick Details
-
Warranty:
-
2 years
-
Weight (KG):
-
159000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dowell, Dowell
-
Product Name:
-
Transfer Cart
-
Capacity:
-
10 ton
-
Advantage:
-
Low cost,self propelled
-
Application:
-
Industry,Warehouse,Workshop,...
-
running speed:
-
0-20M/MIN
-
Size:
-
3000*1800*500 mm
-
Power supply:
-
railways powered
-
Material:
-
Q235
-
Color:
-
Customer Requirements
Products Description
Application
Product Paramenters
|
Model
|
|
KPX-2t
|
KPX-20t
|
KPX-50t
|
KPX-100t
|
KPX-150t
|
|
|
Rated Load(t)
|
|
2
|
20
|
50
|
100
|
150
|
|
|
TableSize(mm)
|
Length(L)
|
2000
|
4000
|
5500
|
6500
|
10000
|
|
|
|
Width(W)
|
1500
|
2000
|
2500
|
2800
|
3000
|
|
|
|
Heigth(H)
|
150
|
550
|
650
|
850
|
1200
|
|
|
Wheel Base(mm)
|
|
1200
|
2800
|
4200
|
4900
|
7000
|
|
|
Rail Inner Gauge(mm)
|
|
1200
|
1435
|
1435
|
2000
|
2000
|
|
|
Wheel Diameter(mm)
|
|
270
|
350
|
500
|
600
|
600
|
|
|
Wheel Quantity
|
|
4
|
4
|
4
|
4
|
8
|
|
|
Ground Clearance(mm)
|
|
50
|
50
|
50
|
75
|
75
|
|
|
Running Speed(mm)
|
|
25
|
20
|
20
|
20
|
18
|
|
|
Motor Power(kw)
|
|
0.8
|
2.5
|
5.5
|
11
|
15
|
|
|
Max Wheel Load(KN)
|
|
14.4
|
77.7
|
174
|
343.8
|
265.2
|
|
|
Reference Weight(t)
|
|
2.3
|
5.5
|
7.6
|
13.9
|
26
|
|
|
Recommended Rail Model
|
|
P15
|
P24
|
P43
|
QU100
|
QU100
|
|
Features and Advantages:
1. It has high a nti-explosion and a nti-high temperature performance.
2. Electric transfer cart has no strict requirement for the construction of the railway .
3. It has safe and flexible movement, which is also convenient to use.
4. The running speed of the electric transfer carts can be adjusted with actual situation .
1. It has high a nti-explosion and a nti-high temperature performance.
2. Electric transfer cart has no strict requirement for the construction of the railway .
3. It has safe and flexible movement, which is also convenient to use.
4. The running speed of the electric transfer carts can be adjusted with actual situation .
Details Images
Our Advantages
Product packaging
1.Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
2.Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the
transportation.
3.Only the best transport solution will be taken for saving your cost uttermost on finance,security and time.
